Ignition Switch

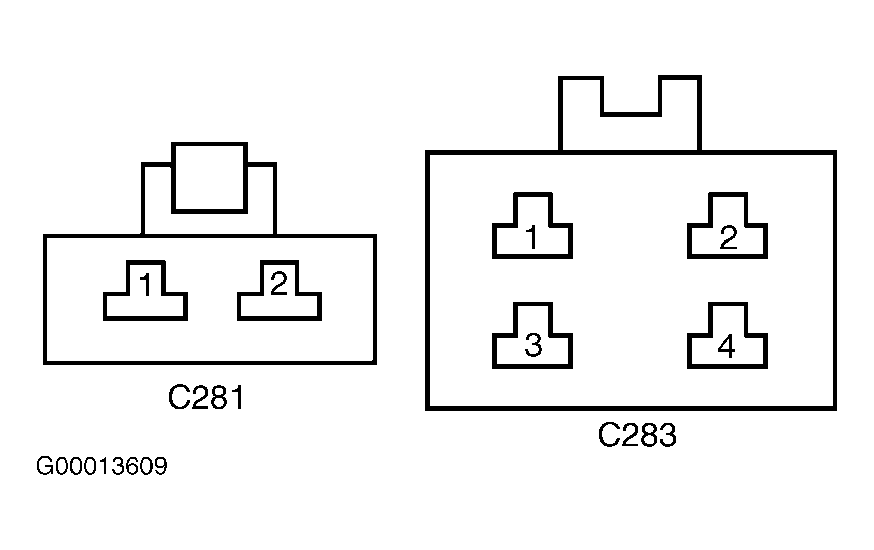

Check for continuity between specified terminals with switch in each position. See IGNITION SWITCH CONTINUITY table. See Fig 1. If continuity is not as specified, replace ignition switch. See IGNITION SWITCH under REMOVAL & INSTALLATION.
IGNITION SWITCH CONTINUITY
| Switch Position | Continuity Between Connector-Terminal No. |
|---|---|
| ACC | C281-1 & C281-2; C281-2 & C283-3 |
| LOCK | C281-1 & C281-2 |
| ON | C281-1 & C281-2; C281-1 & C283-2; C281-2 & C283-3; C281-2 & 283-1 |
| START | C281-1 & C281-2; C281-1 & 283-4; C281-2 & C283-1 |
