Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1-Fig 5 .

NOTE: MAIN fuse (100-amp) may also be referred to as main fuse link cartridge.

COMPONENT LOCATIONS

Component	Location
Air Bag Sliding Contact	Top Of Steering Column, Under Steering Wheel
Battery Junction Box	Left Side Of Engine Compartment, Near Battery
Central Junction Box	Below Left Side Of Instrument Panel
Multifunction Switch Housing	Upper Steering Column
Turn Signal/Hazard Flasher	Under Driver's Side Of Instrument Panel, Near Left Cowl Side Trim

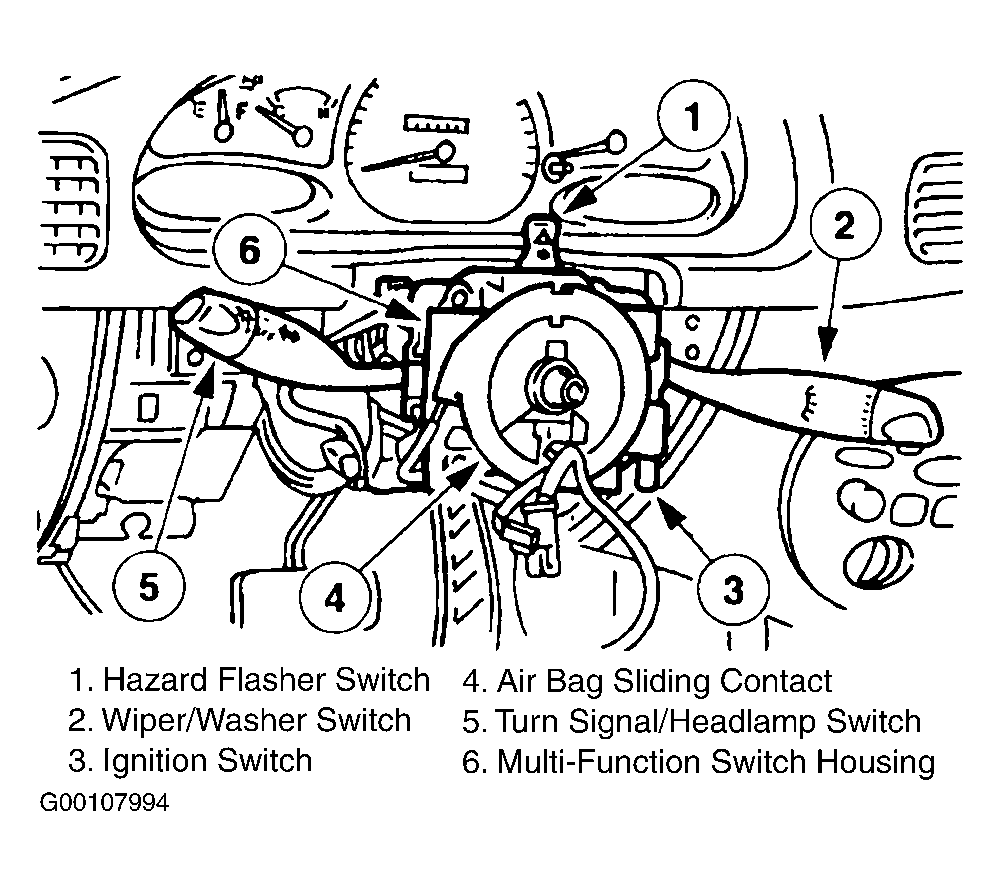

Fig 1: Locating Steering Column Switches

Courtesy of FORD MOTOR CO.

Fig 2: Locating Battery Junction Box (ZX2 Shown; Escort Is Similar)

Courtesy of FORD MOTOR CO.

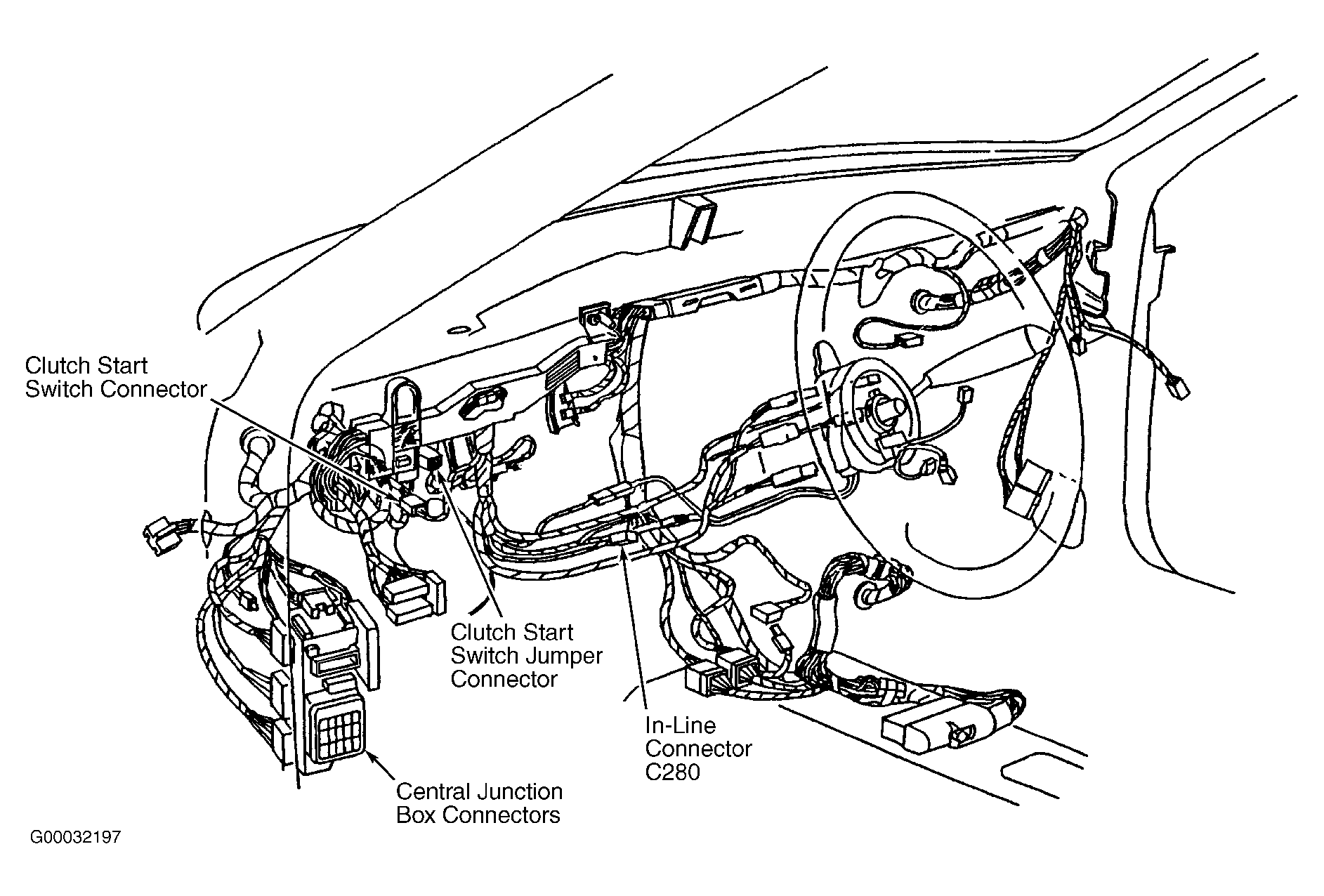

Fig 3: Locating Passenger Compartment Connectors

Courtesy of FORD MOTOR CO.

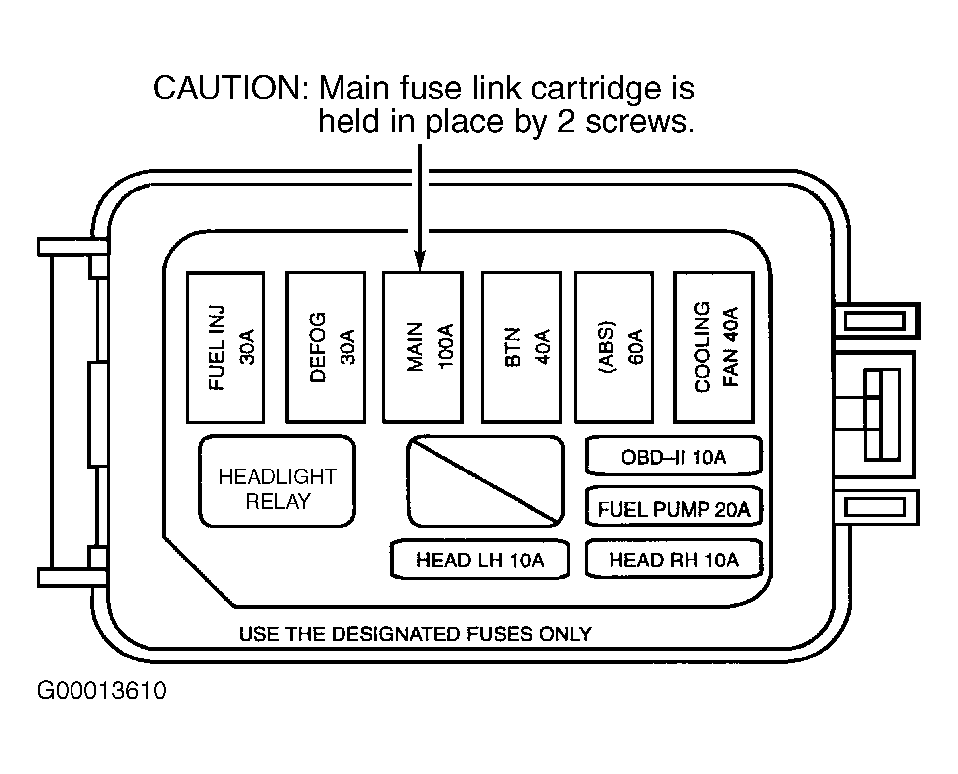

Fig 4: Locating MAIN Fuse (100-Amp) In Battery Junction Box

Courtesy of FORD MOTOR CO.

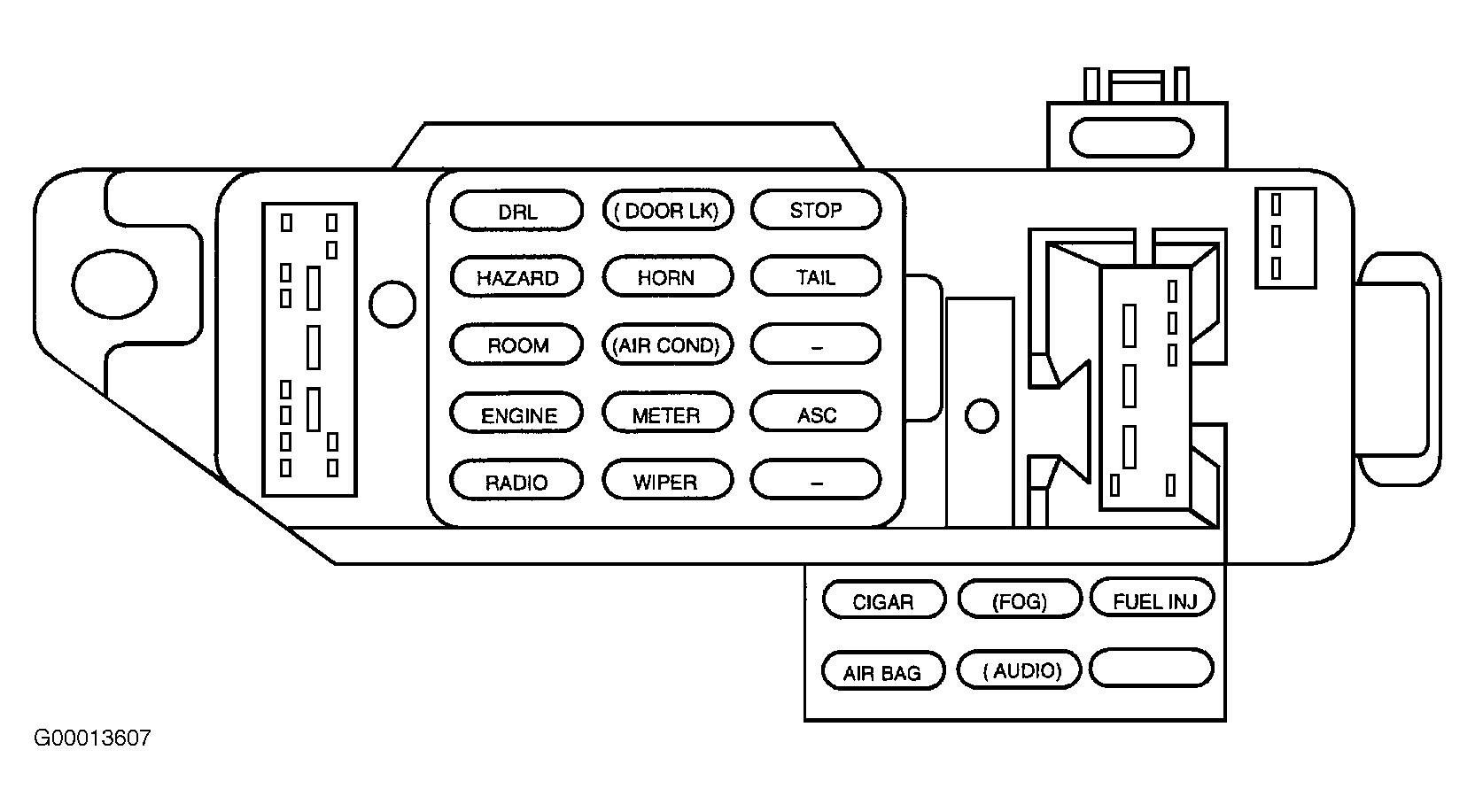

Fig 5: Locating ROOM Fuse (10-Amp) In Central Junction Box

Courtesy of FORD MOTOR CO.
