Camshaft Position Synchronizer: Installation

    NOTE: Synchro Positioner (303-589) must be used during installation of synchronizer assembly. Failure to follow this procedure will result in fuel system being out of time with engine, possibly causing engine damage.
  1. Install synchro positioner on camshaft synchronizer by rotating tool until it engages notch in camshaft synchronizer housing and armature. See Fig 1. Tool should fit squarely in top of camshaft synchronizer assembly.
    2. NOTE: Coat camshaft synchronizer gear with engine oil prior to installation. Failure to do so, may result in gear failure.
  2. Ensure piston No. 1 is in TDC position on compression stroke. Install oil pump drive shaft into camshaft synchronizer assembly. Lubricate camshaft synchronizer gear with engine oil. Arrow on synchro positioner will rotate clockwise until camshaft synchronizer is fully seated. Insert camshaft synchronizer assembly into engine.
  3. When installed, synchro positioner should point 54 degrees from centerline of engine. See Fig 2. Install and tighten camshaft synchronizer hold-down clamp bolt to specification. See TORQUE SPECIFICATIONS . Connect CMP sensor harness connector and negative battery cable.

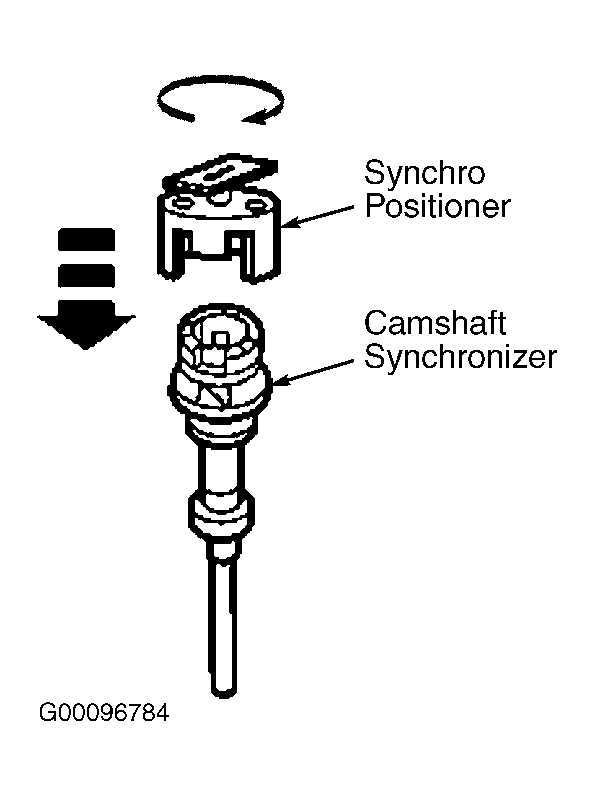

Fig 1: Installing Synchro Positioner Onto Camshaft Synchronizer
G00096784Courtesy of FORD MOTOR CO.

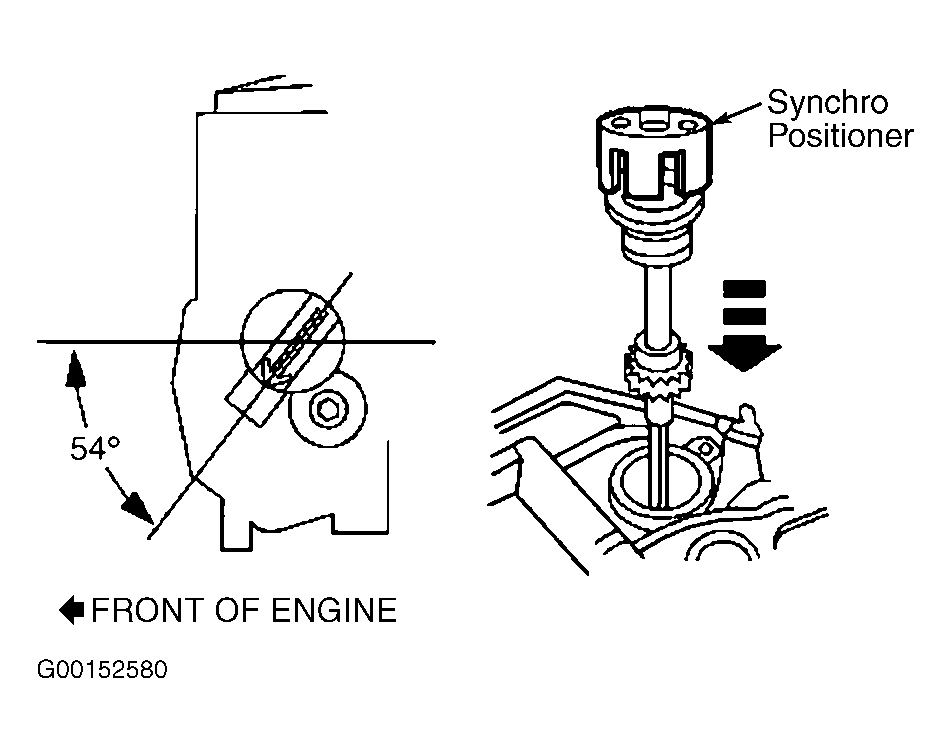

Fig 2: Installing Camshaft Synchronizer
G00152580Courtesy of FORD MOTOR CO.
