Removal and Installation

WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
Please refer to the appropriate vehicle shop manual to determine location of the front air bag sensors.
The side air bag sensors are located at or near the base of the B-pillar.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

Disconnect the battery ground cable. Wait at least one minute before proceeding with the procedure to allow the backup power supply to deplete its energy. Refer to BATTERY DISCONNECT .
Remove the two screws and the instrument panel lower steering column opening cover.

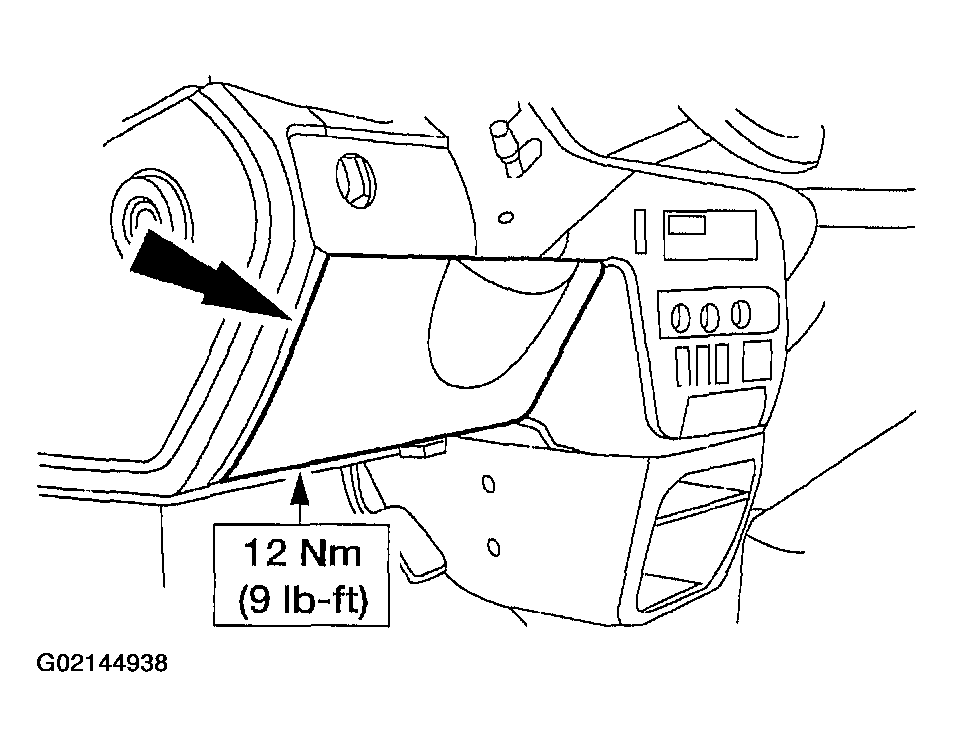

Fig 1: Removing Screws And Instrument Panel Lower Steering Column Opening Cover
Courtesy of FORD MOTOR CO.
Separate the LH instrument panel finish panel from the instrument panel.

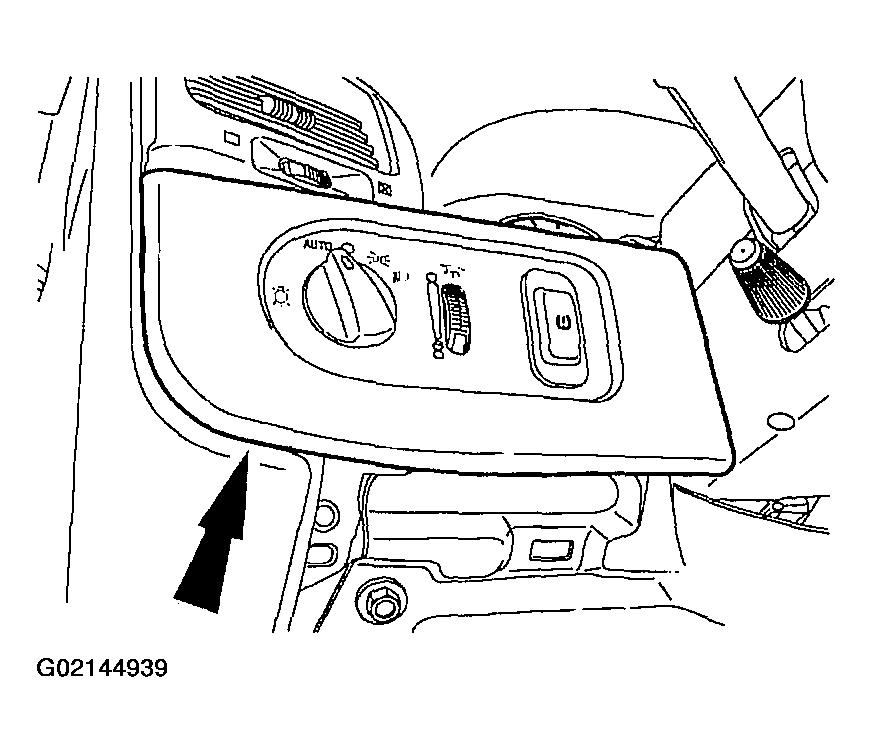

Fig 2: Separating LH Instrument Panel Finish Panel From Instrument Panel
Courtesy of FORD MOTOR CO.
Remove the RH instrument panel finish panel.

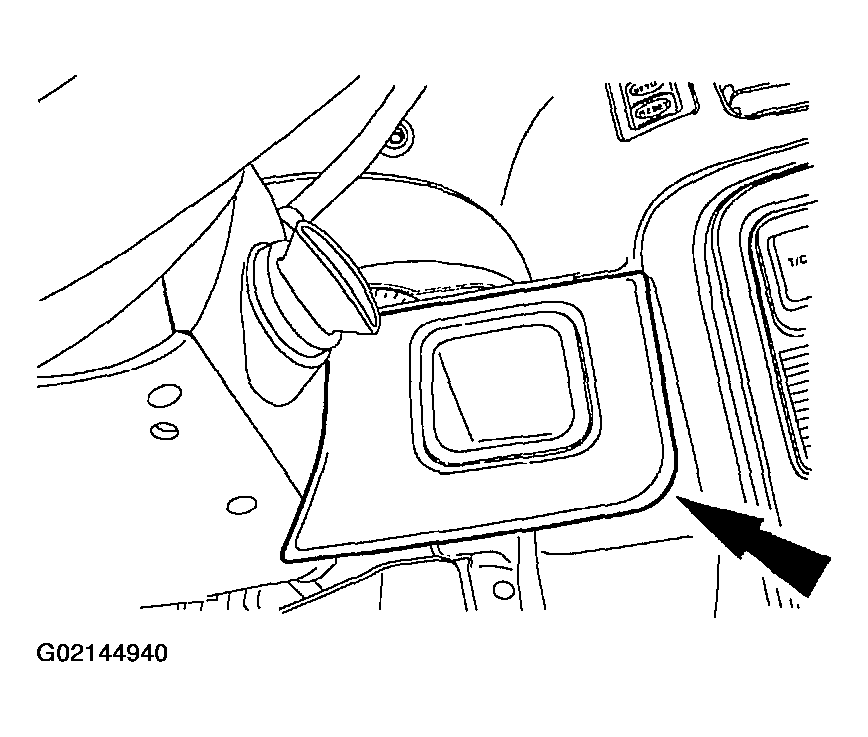

Fig 3: Removing RH Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.
Remove the screws and the instrument panel opening cover reinforcement.

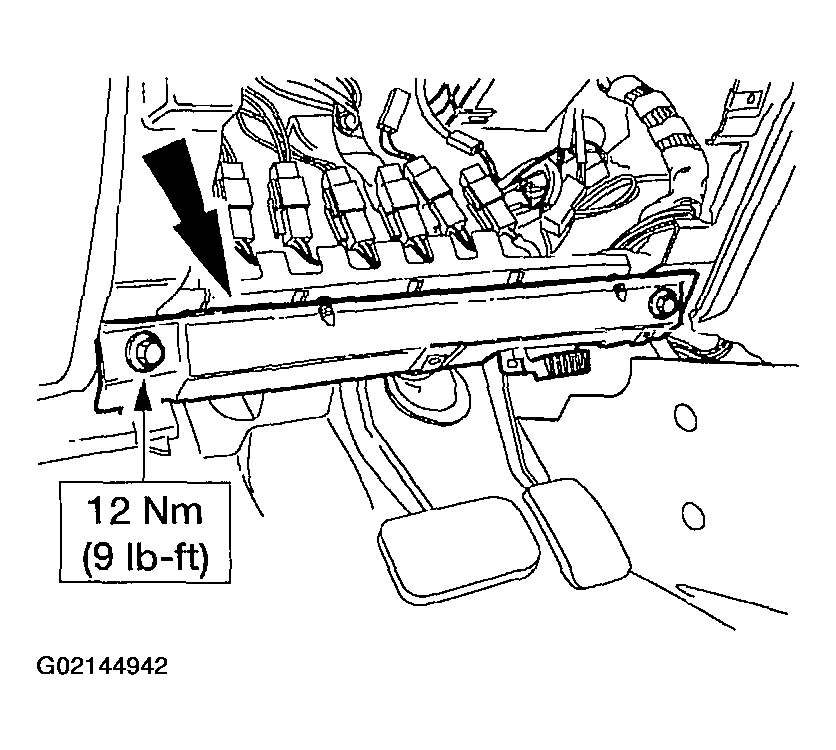

Fig 4: Removing Screws And Instrument Panel Opening Cover Reinforcement
Courtesy of FORD MOTOR CO.
Remove the screws and the steering column opening brace.

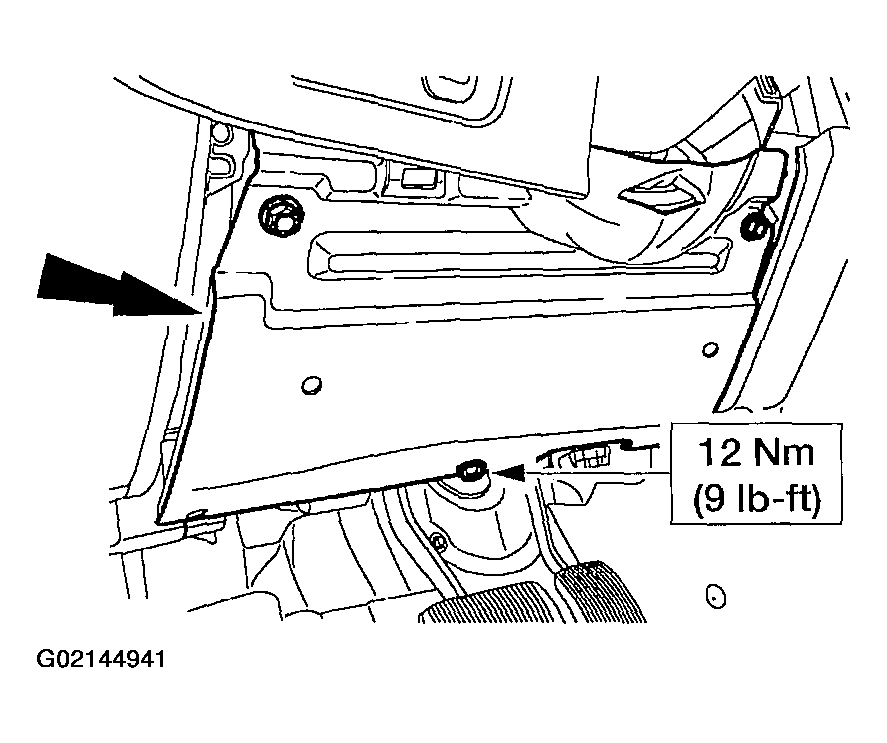

Fig 5: Removing Screws And Steering Column Opening Brace
Courtesy of FORD MOTOR CO.
Position the selector lever indicator cable aside.
1. Loosen the screw.
2. Disconnect the cable.
3. Position the selector lever indicator cable aside.

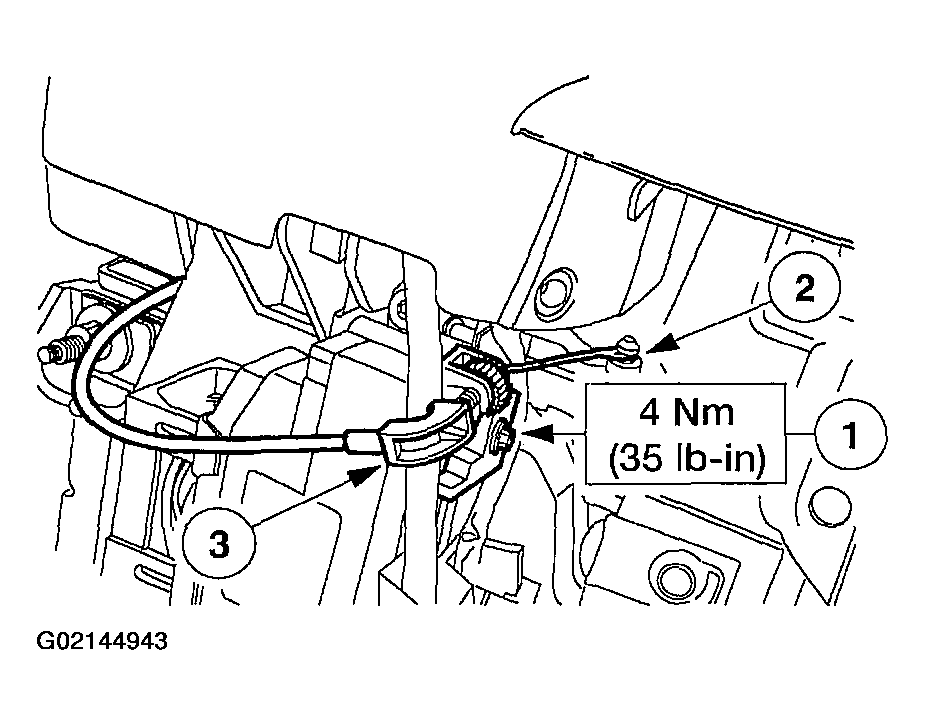

Fig 6: Positioning Selector Lever Indicator Cable Aside
Courtesy of FORD MOTOR CO.
Remove the four nuts and the bracket and lower the steering column.

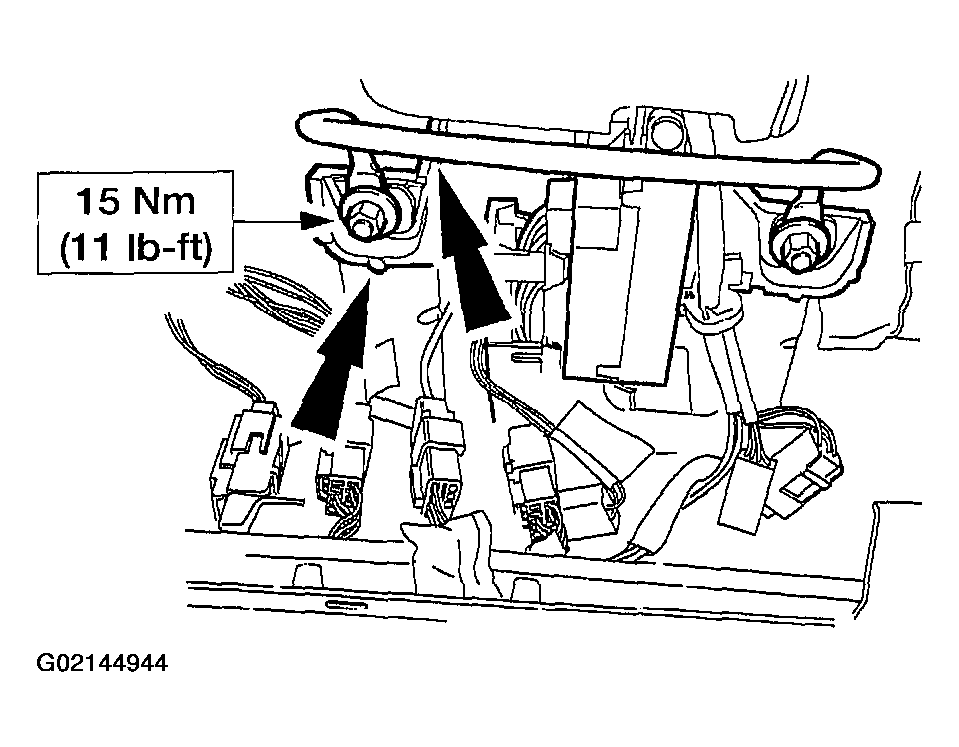

Fig 7: Removing Nuts And Bracket And Lower Steering Column
Courtesy of FORD MOTOR CO.
Remove the shift lock actuator and the transmission shift selector position insert (7A216).
1. Remove the bolts.
2. Separate the shift lock actuator and the transmission shift selector position insert from the steering column.
3. Disconnect the electrical connector and remove the shift lock actuator and the transmission shift selector position insert.

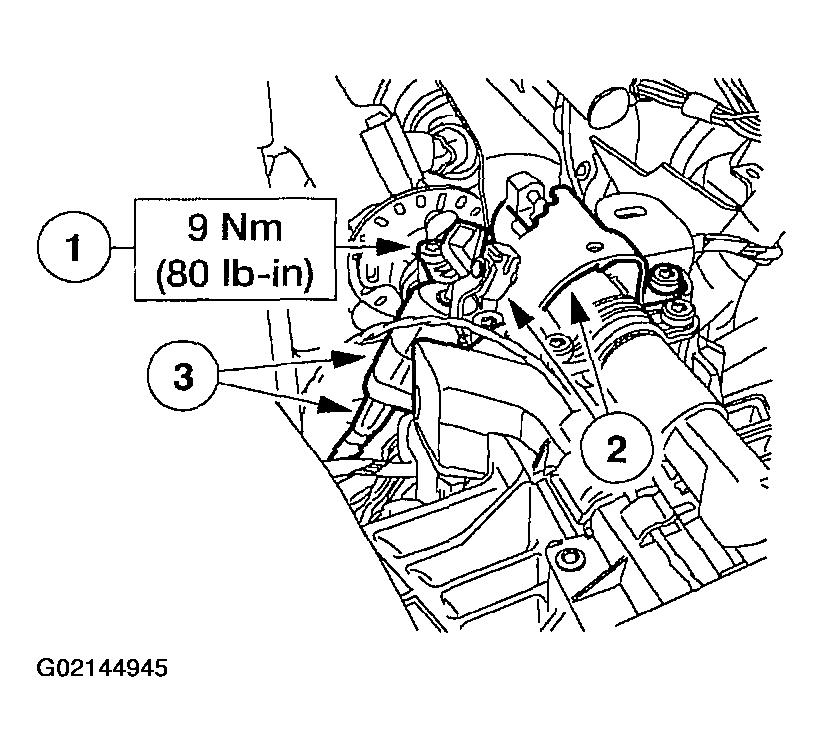

Fig 8: Removing Shift Lock Actuator And Transmission Shift Selector Position Insert (7A216)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
