Vehicles without Trailer Towing Package

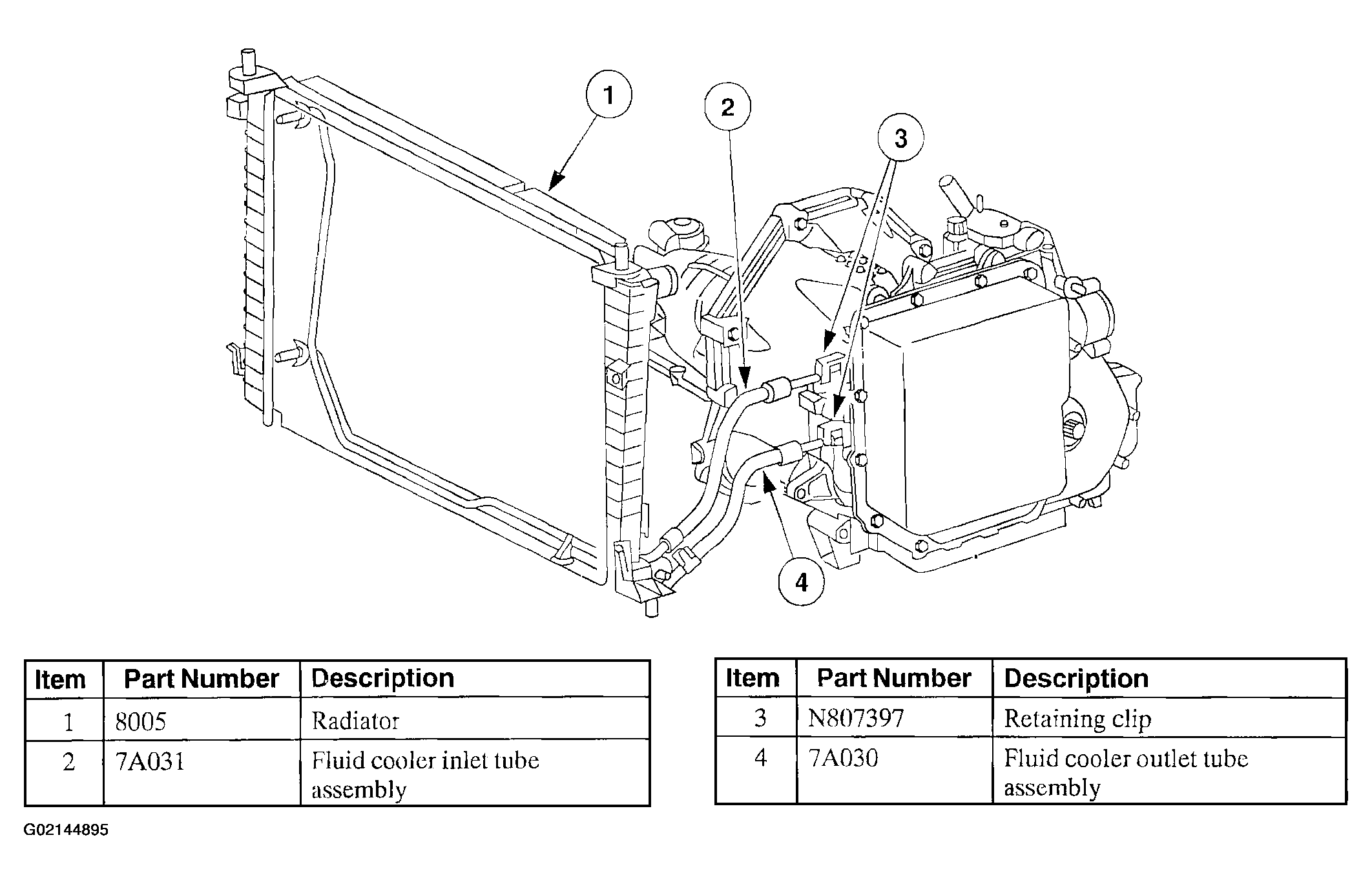

The transaxle fluid cooling system consists of:
- a non-repairable integral fluid cooler located in the RH radiator tank
- a fluid cooler inlet tube assembly (7A031)
- a fluid cooler outlet tube assembly (7A030)
- retaining clips (N807397)
The transmission fluid flows from the transaxle, through the fluid cooler inlet tube assembly, through the integral fluid cooler, and returns to the transaxle through the fluid cooler outlet tube assembly.
For fluid cooler flow testing, and backflushing and cleaning procedures, refer to TRANSMISSION FLUID COOLER -- BACKFLUSHING AND CLEANING .
