Low-Intermediate Clutch Cylinder: Disassembly

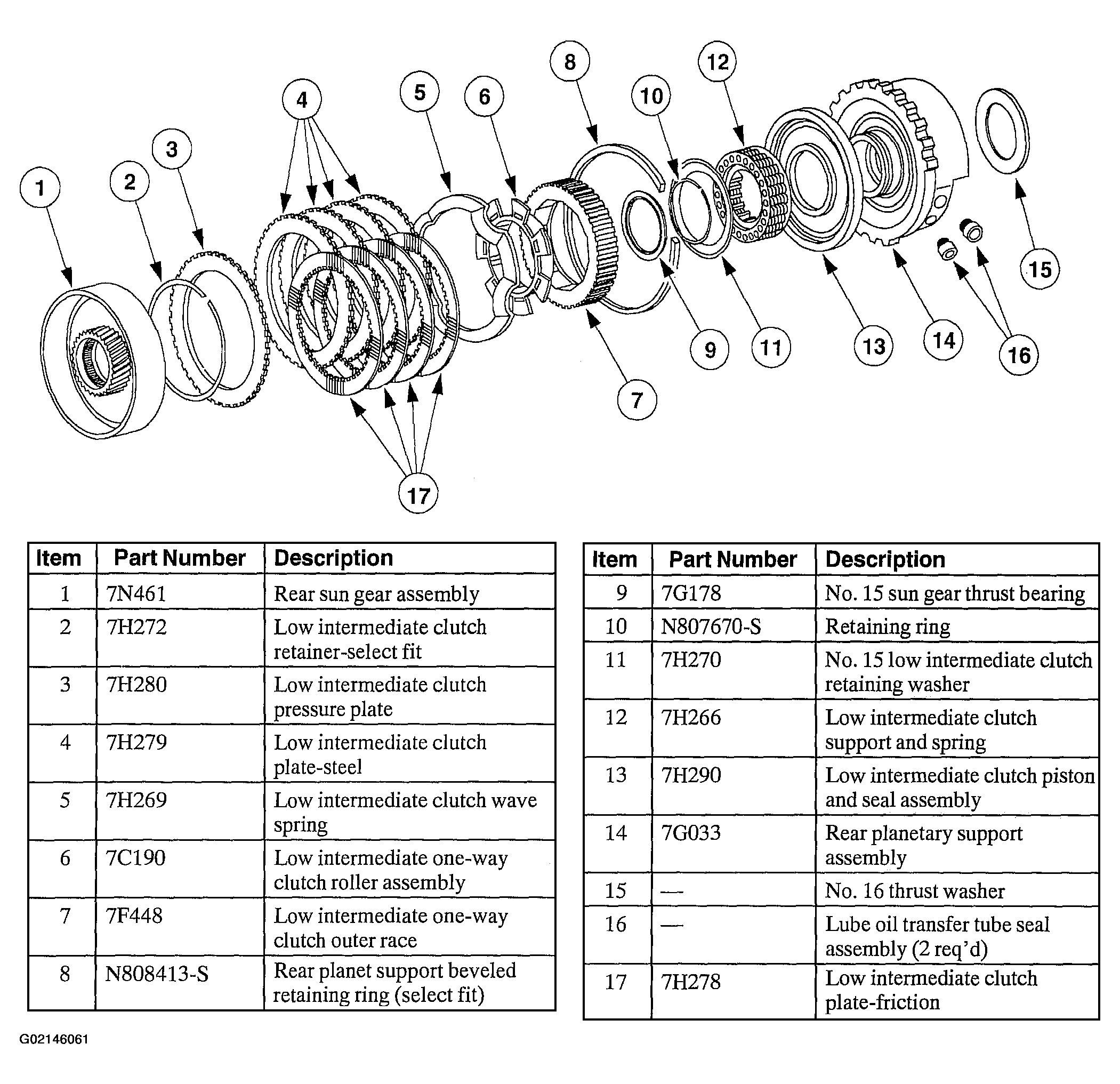

Fig 1: Exploded View Of Low-Intermediate Clutch Cylinder Components

Courtesy of FORD MOTOR CO.

1. Remove the No. 15 rear sun gear thrust bearing and race.

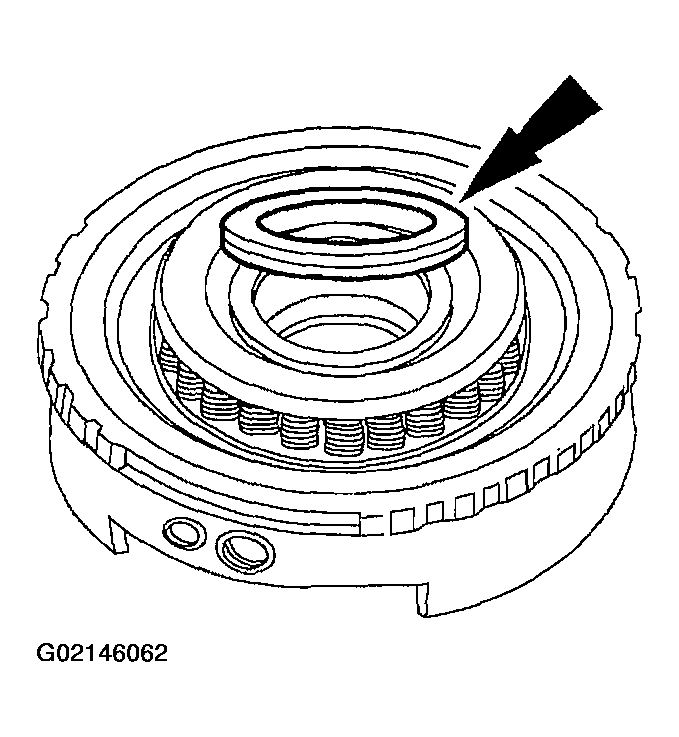

   Fig 2: Removing No. 15 Rear Sun Gear Thrust Bearing And Race

   Courtesy of FORD MOTOR CO.
2. Remove the No. 15 low-intermediate clutch retainer washer.

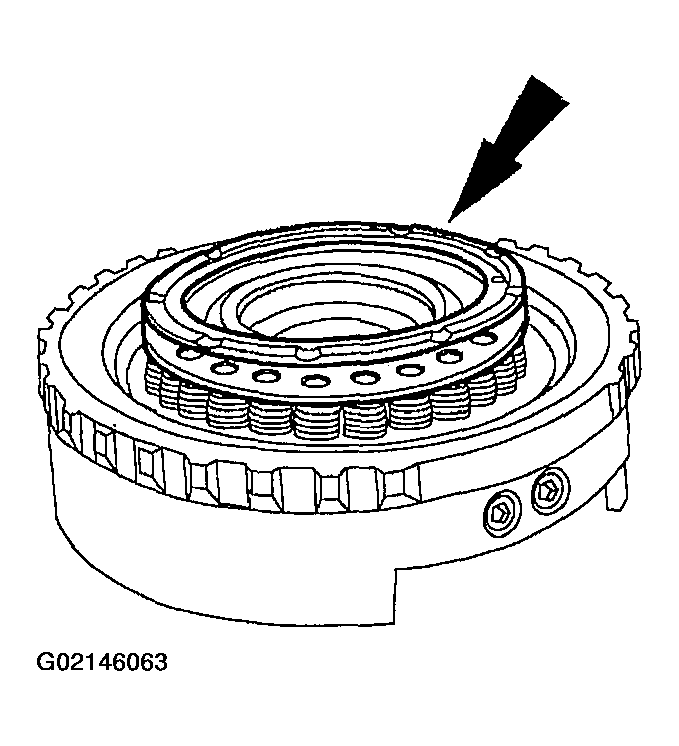

   Fig 3: Removing No. 15 Low-Intermediate Clutch Retainer Washer

   Courtesy of FORD MOTOR CO.
CAUTION: Do not fully compress the clutch spring retainer.
Fig 4: Removing Snap Ring
Courtesy of FORD MOTOR CO.
3. Using the special tool, remove the snap ring.
4. Remove the low-intermediate clutch support and spring assembly.

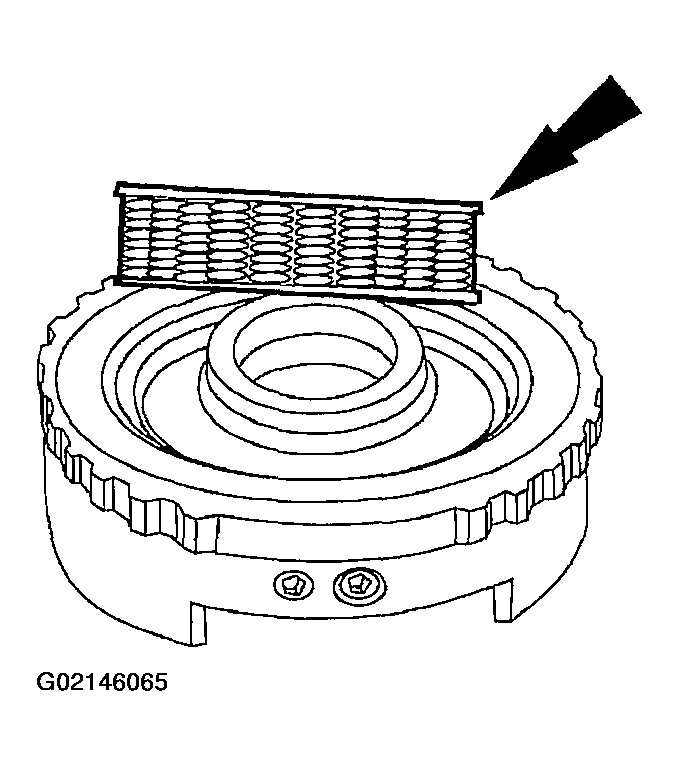

   Fig 5: Removing Low-Intermediate Clutch Support And Spring Assembly

   Courtesy of FORD MOTOR CO.
5. Remove the No. 16 final drive gear thrust washer.

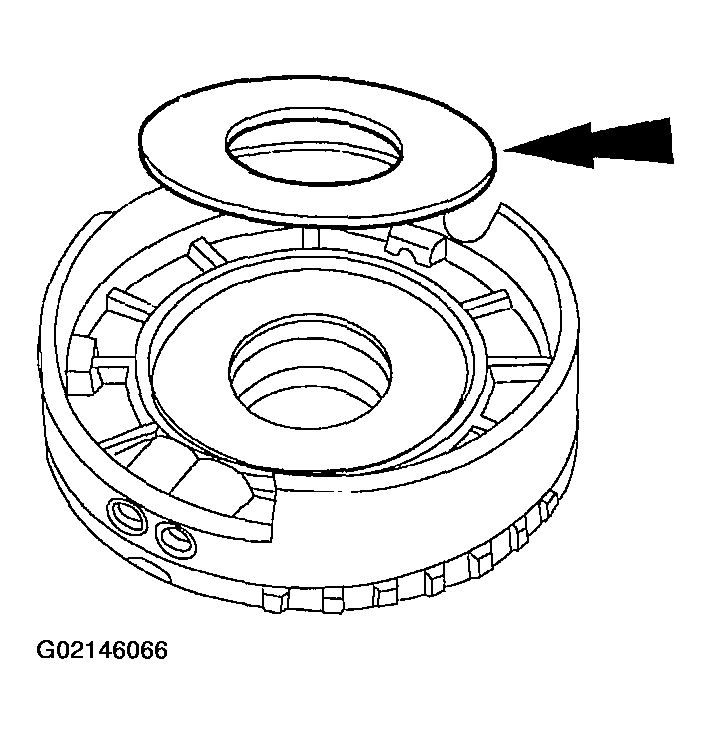

   Fig 6: Removing No. 16 Final Drive Gear Thrust Washer

   Courtesy of FORD MOTOR CO.
WARNING: To prevent injury, wear eye protection when using pressurized air.
NOTE: The seal is part of the piston and is serviced as an assembly.
Fig 7: Applying Regulated Air To Low Intermediate Apply Port
Courtesy of FORD MOTOR CO.
6. Using an air nozzle, apply 276 kpa (40 psi) of regulated air to the low intermediate apply port to remove the piston and seal assembly.
CAUTION: Use care not to damage any machined surfaces.
Fig 8: Removing Rear Lube Oil Transfer Tube Seal
Courtesy of FORD MOTOR CO.
7. Using the special tools, remove the rear lube oil transfer tube seal.
NOTE: If the bushing is worn or the fluid passage is blocked a new rear planet support should be installed.

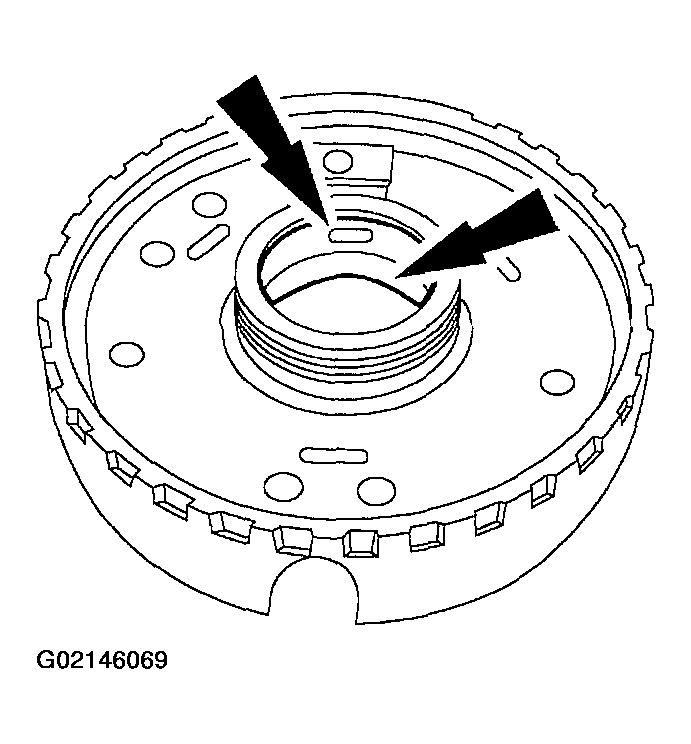

Fig 9: Locating Bushing
Courtesy of FORD MOTOR CO.
8. Repair as required.
