Forward Clutch Cylinder: Disassembly

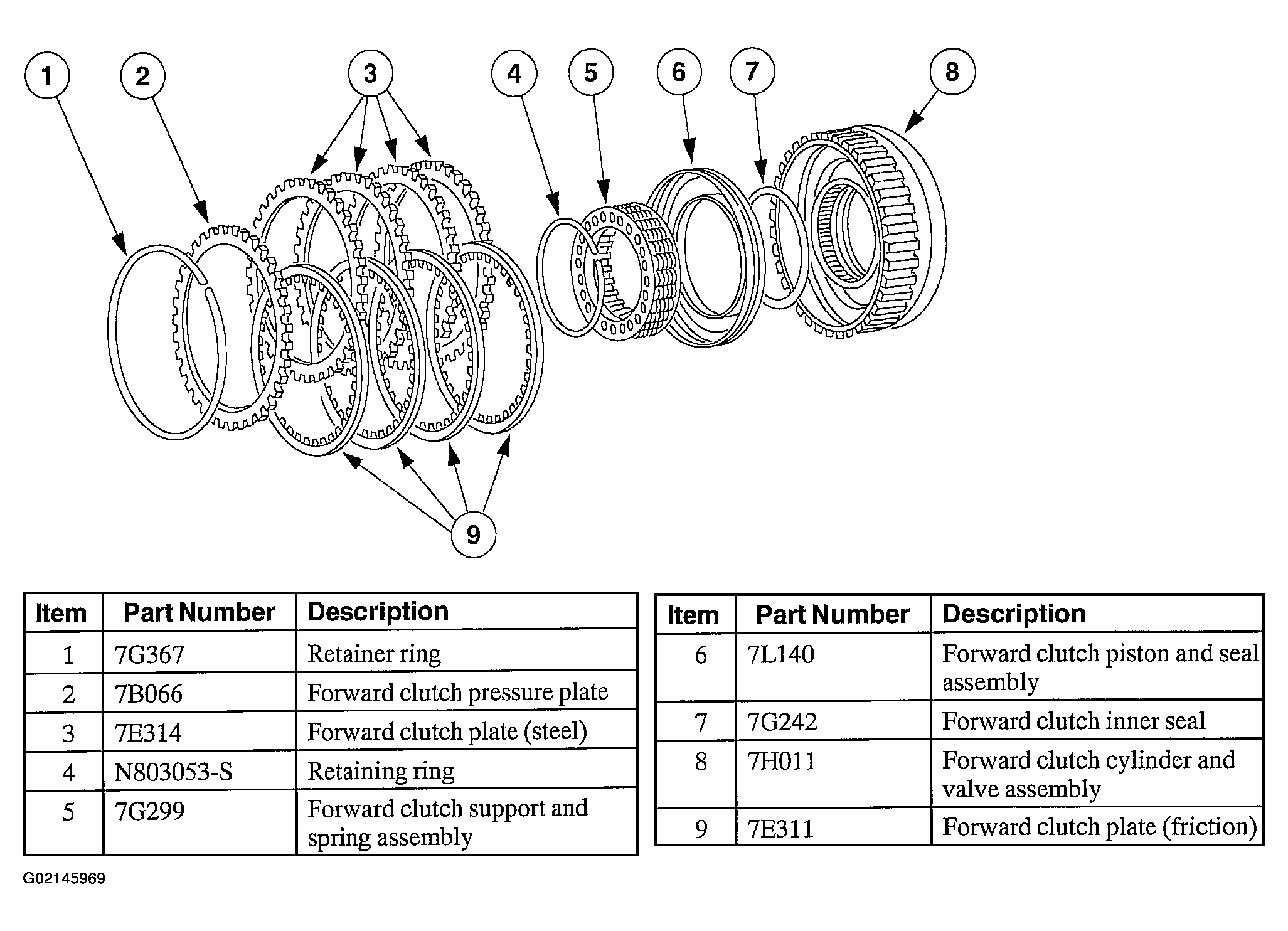

Fig 1: Exploded View Of Forward Clutch Cylinder Components
G02145969Courtesy of FORD MOTOR CO.
  1. Remove the No. 6 forward clutch thrust washer.

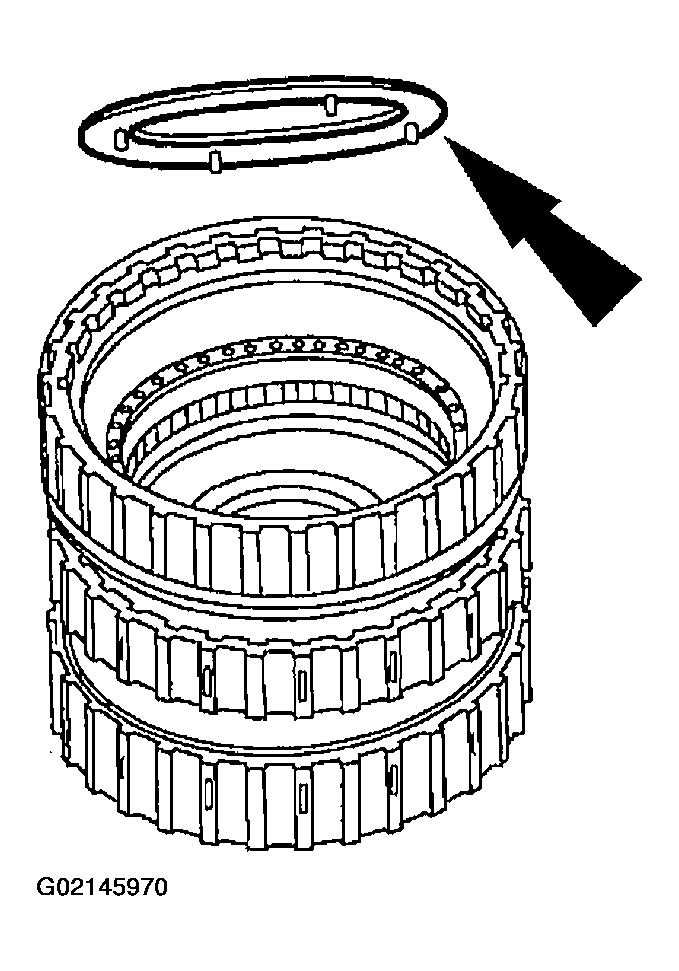

    Fig 2: Removing No. 6 Forward Clutch Thrust Washer
    G02145970Courtesy of FORD MOTOR CO.
    2. CAUTION: Pry evenly and do not locate screwdriver ends on or near forward clutch check ball to prevent component damage.

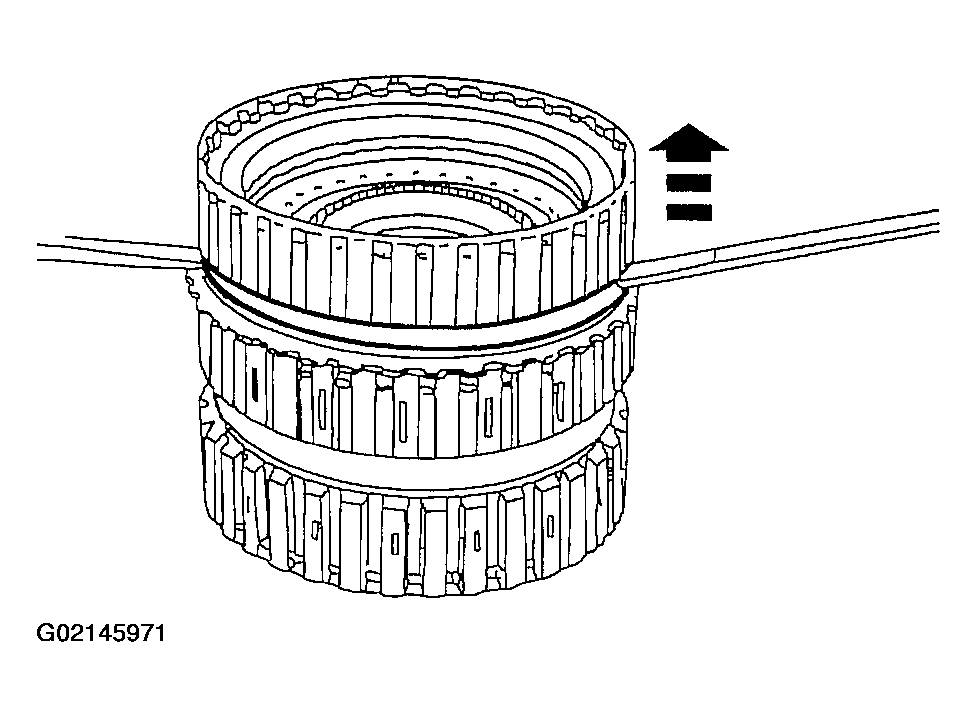

    Fig 3: Removing Forward Clutch Assembly
    G02145971Courtesy of FORD MOTOR CO.
  2. Remove the forward clutch assembly.
  3. Remove the forward clutch plates.
    1. Remove the retaining ring.
    2. Remove the pressure plate.
    3. Remove the clutch packs.

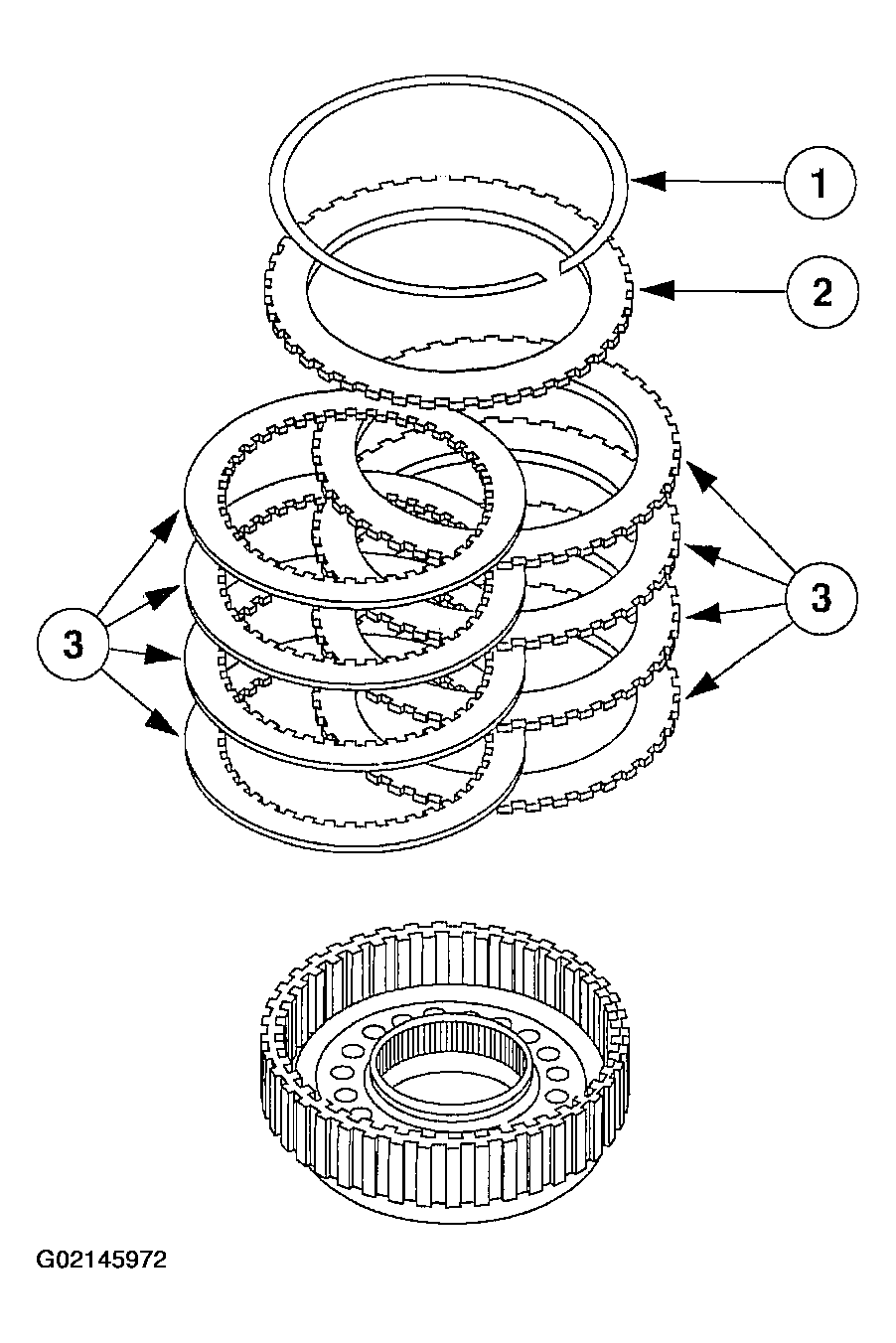

    Fig 4: Removing Forward Clutch Plates
    G02145972Courtesy of FORD MOTOR CO.
  4. Using the special tool, disassemble the forward clutch cylinder.
    Fig 5: Disassembling Forward Clutch Cylinder
    G02145973Courtesy of FORD MOTOR CO.
  5. Clean and reseal the forward clutch.
    1. Remove the clutch return spring.
    2. Remove the clutch piston and seal assembly.
    3. Remove the inner piston seal.

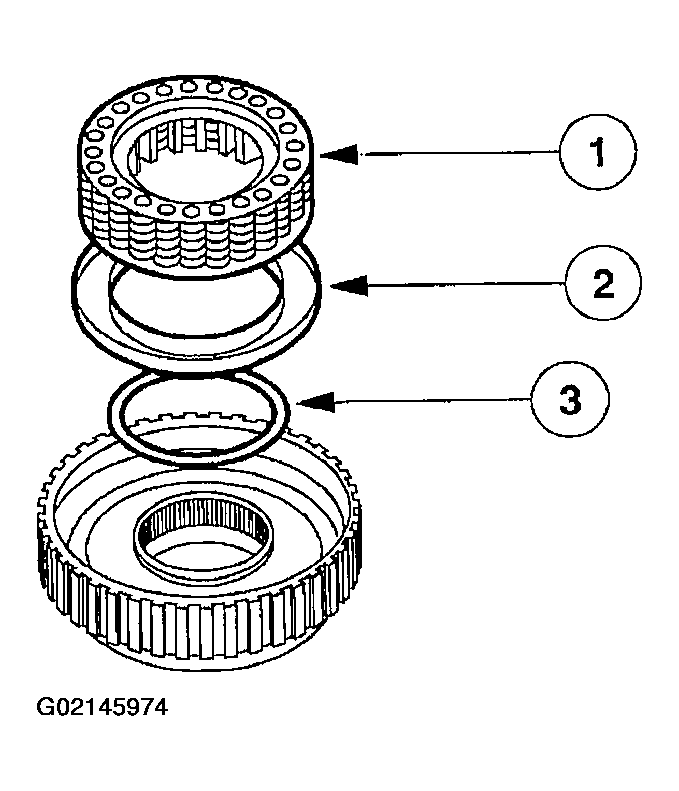

    Fig 6: Disassembling Forward Clutch Assembly
    G02145974Courtesy of FORD MOTOR CO.
