Drive Sprocket/Turbine Shaft: Assembly

  1. Make sure that the seals are mated correctly.
    Fig 1: Identifying Proper Seal Installation Position
    G02145955Courtesy of FORD MOTOR CO.
  2. Install the drive sprocket/turbine shaft seal and O-ring.
    • Install the drive sprocket/turbine shaft O-ring.
    • Install the drive sprocket/turbine shaft seal.

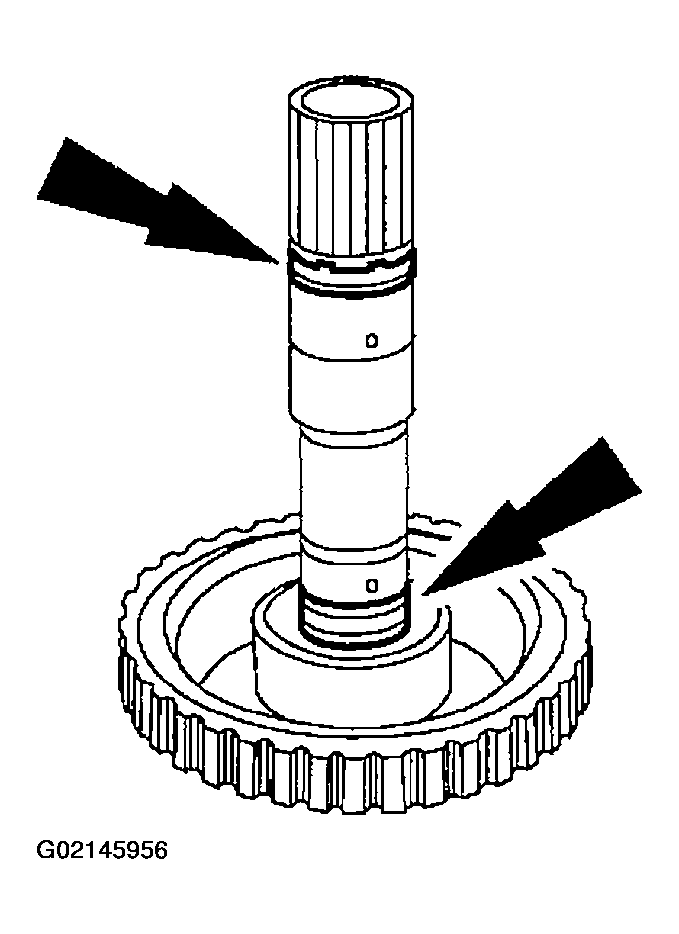

    Fig 2: Installing Drive Sprocket/Turbine Shaft Seal And O-Ring
    G02145956Courtesy of FORD MOTOR CO.
  3. Install the turbine shaft front seal.

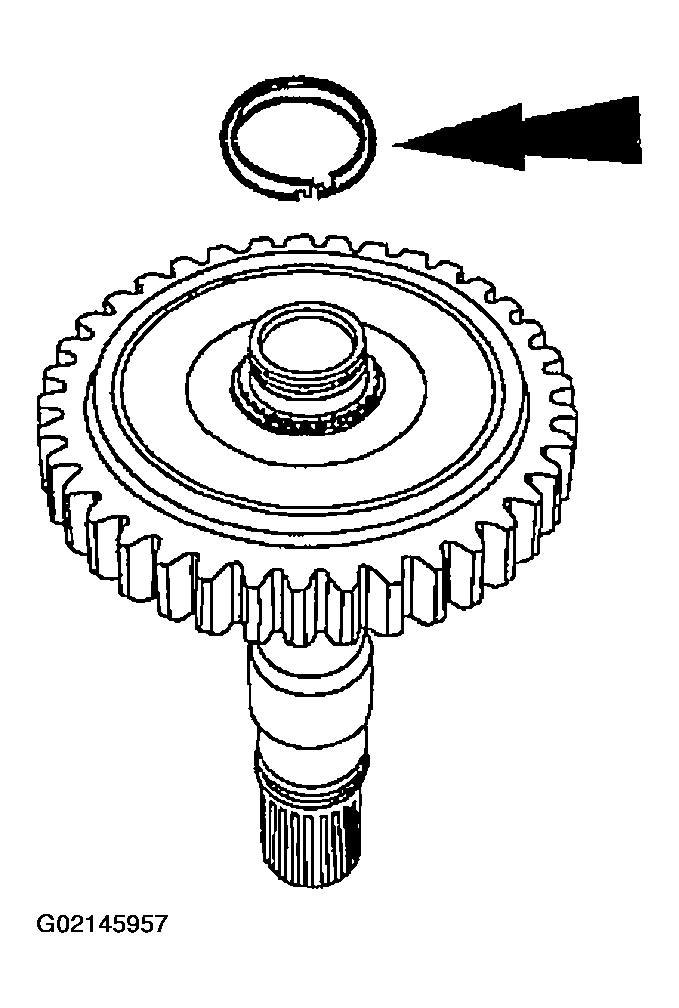

    Fig 3: Installing Turbine Shaft Front Seal
    G02145957Courtesy of FORD MOTOR CO.
  4. Make sure that the seal is locked correctly.
    Fig 4: Identifying Proper Seal Installation
    G02145958Courtesy of FORD MOTOR CO.
