Transaxle Connector Layouts

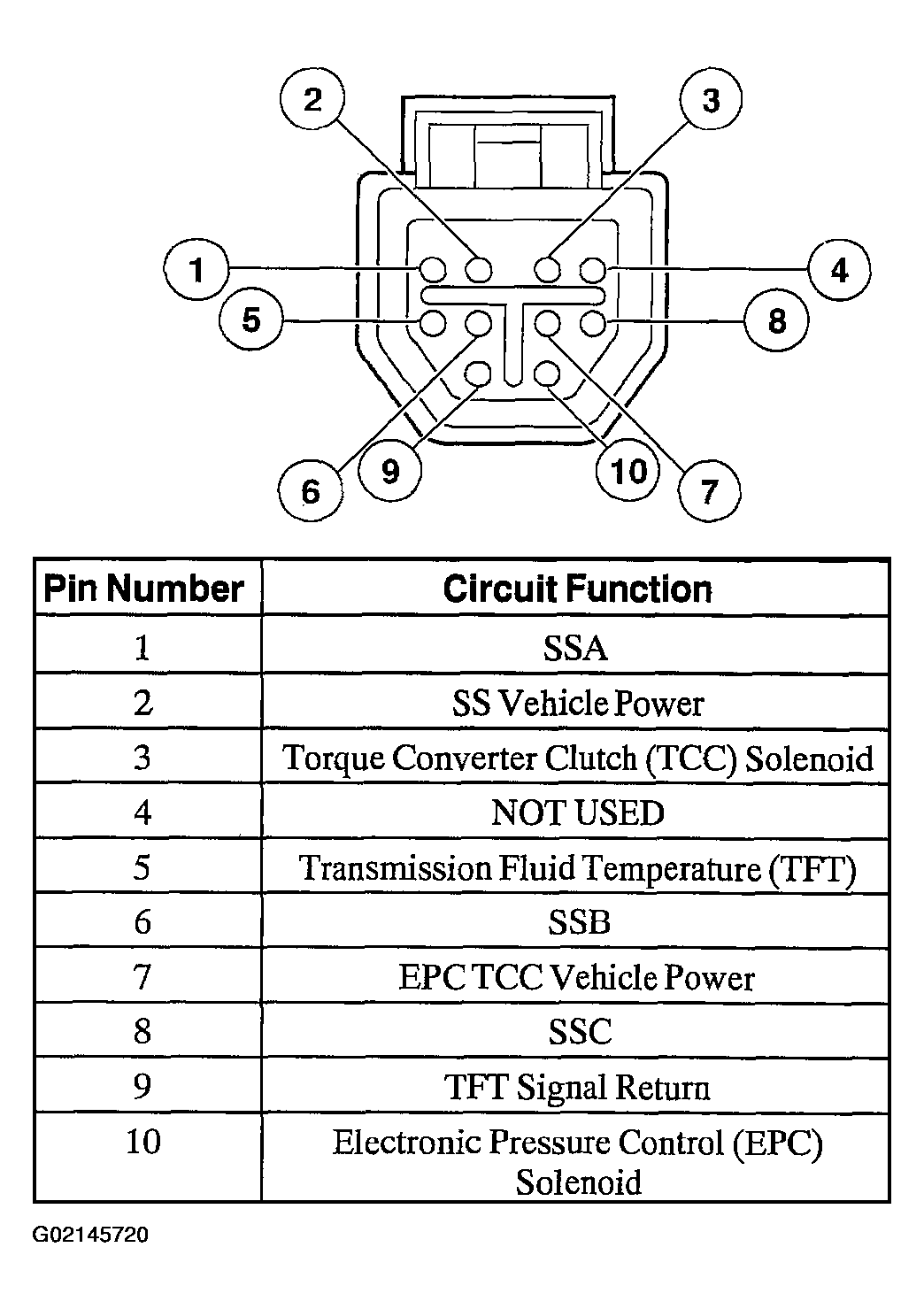

Fig 1: Locating Transaxle Vehicle Harness Connector Terminals
G02145720Courtesy of FORD MOTOR CO.

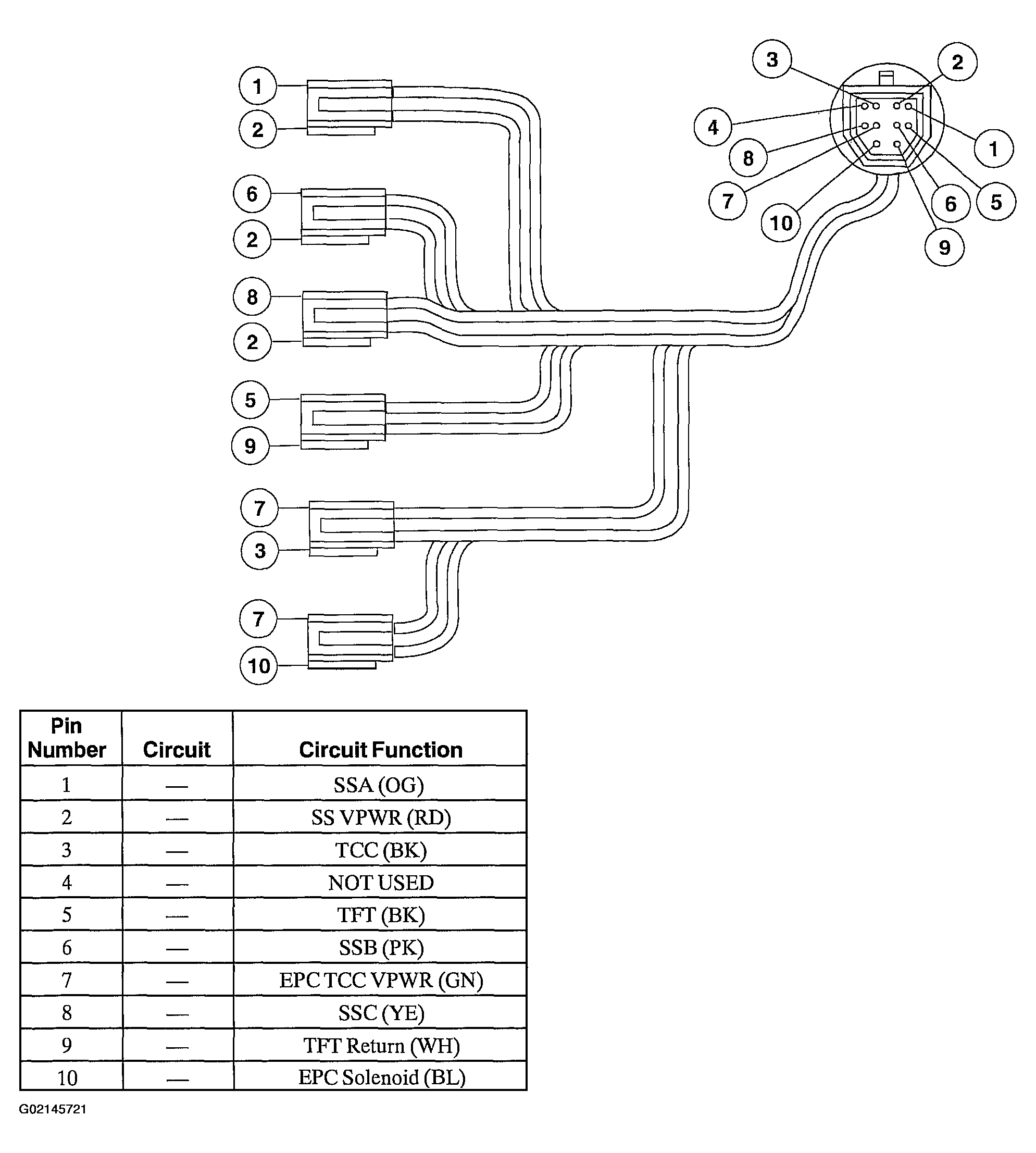

Fig 2: Transaxle Internal Harness Diagram
G02145721Courtesy of FORD MOTOR CO.

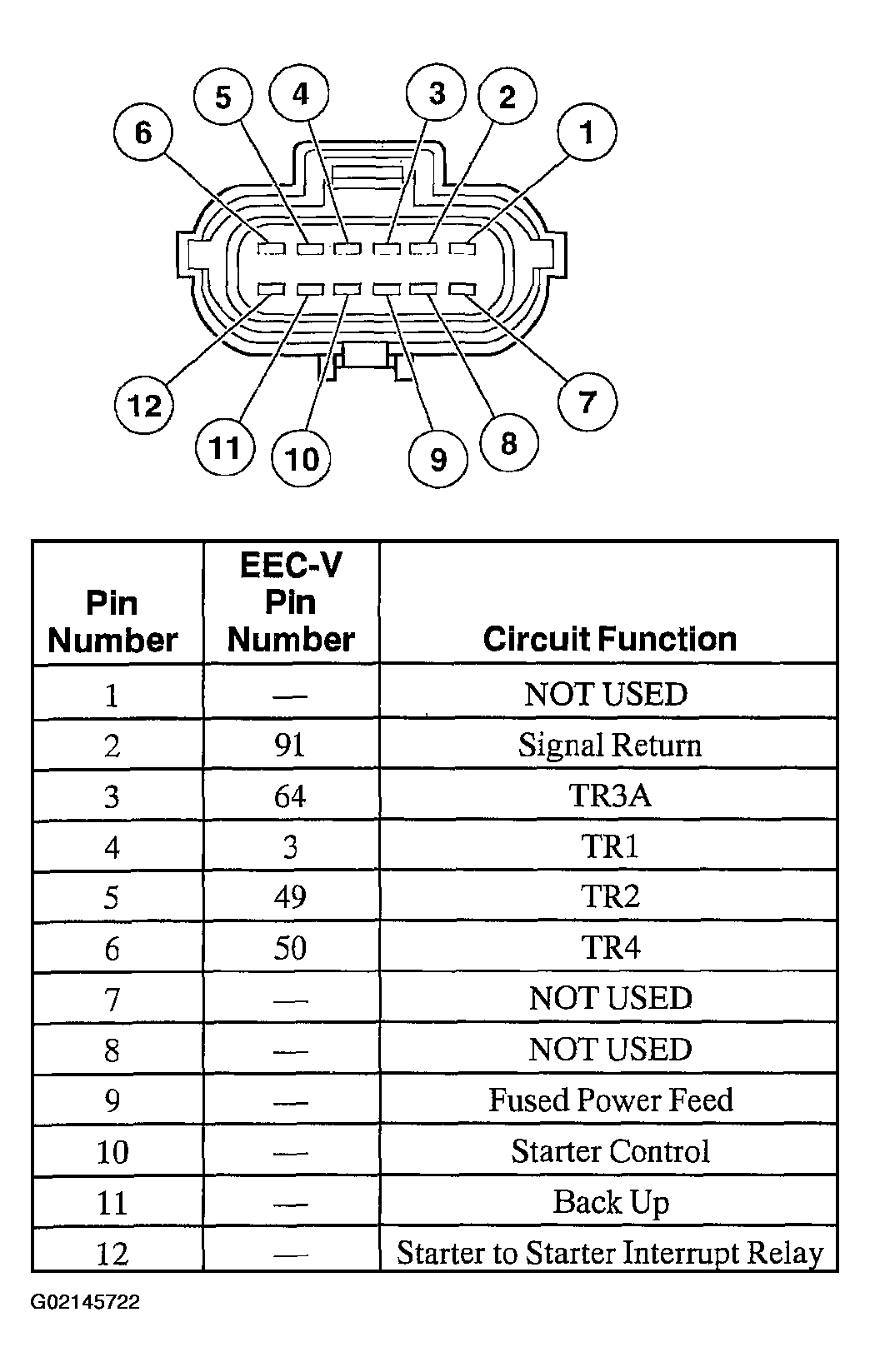

Fig 3: Locating Digital Transmission Range (TR) Sensor Connector Terminals
G02145722Courtesy of FORD MOTOR CO.

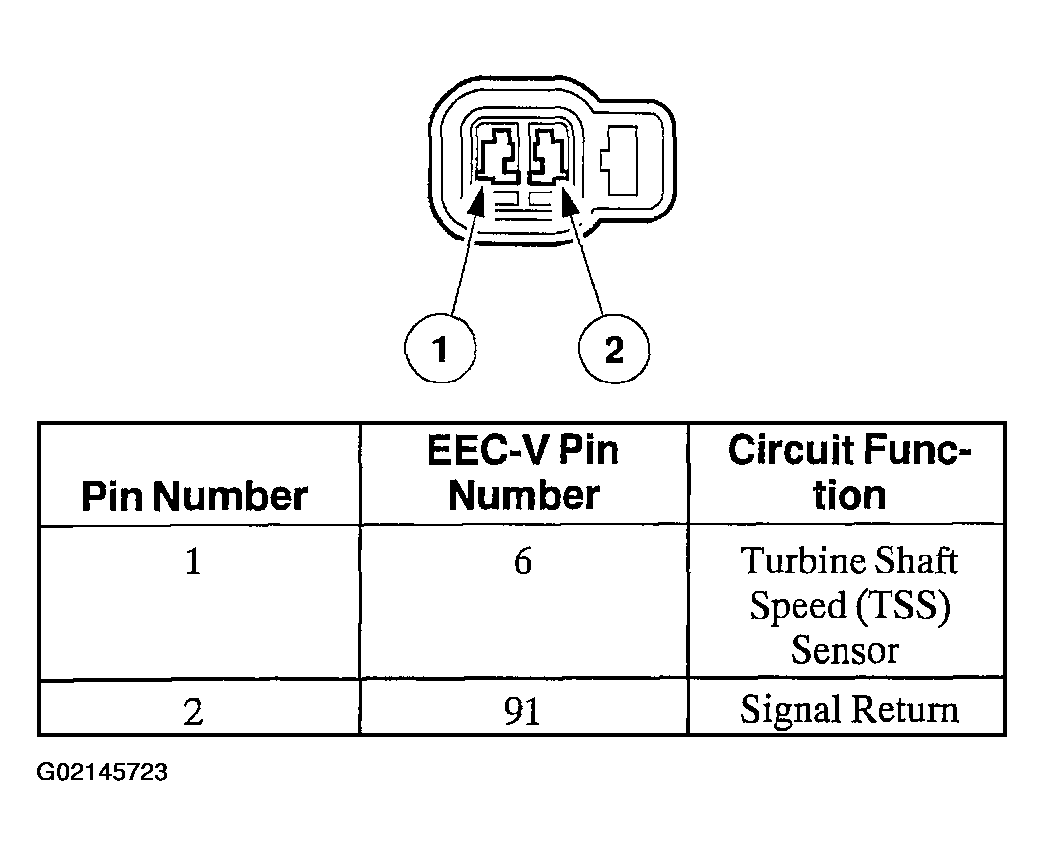

Fig 4: Locating Turbine Shaft Speed Sensor Connector Terminals
G02145723Courtesy of FORD MOTOR CO.
Fig 5: Locating Output Shaft Speed Sensor Connector Terminals
G02145724Courtesy of FORD MOTOR CO.
Fig 6: Output Shaft Speed Sensor Connector Pin Number And Circuit Functions Chart
G02145725Courtesy of FORD MOTOR CO.
