Automatic Transmission
>>
Diagnosis And Testing
>>
Diagnostic Flow Chart
Diagnostic Flow Chart

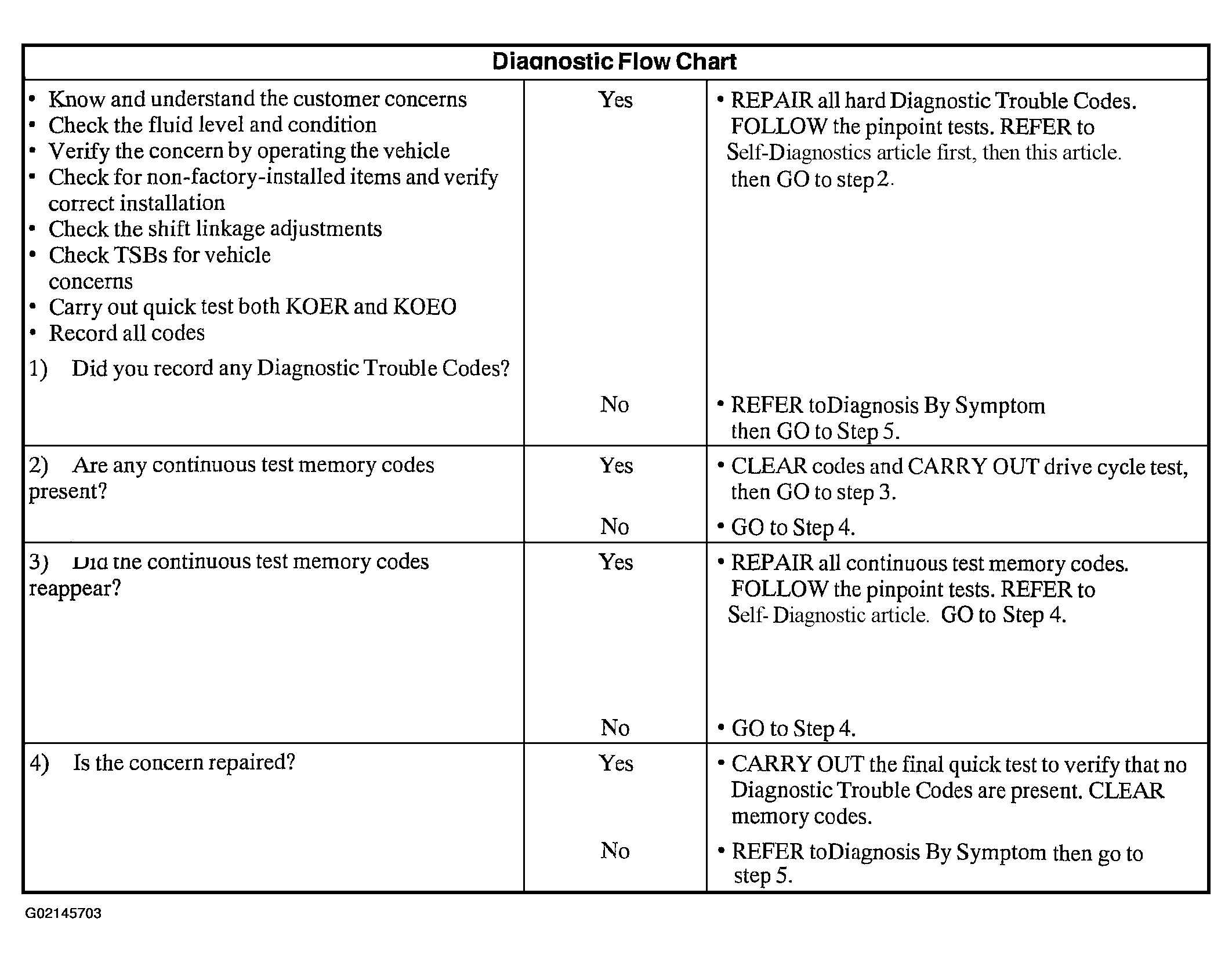

Fig 1: Diagnostic Flow Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

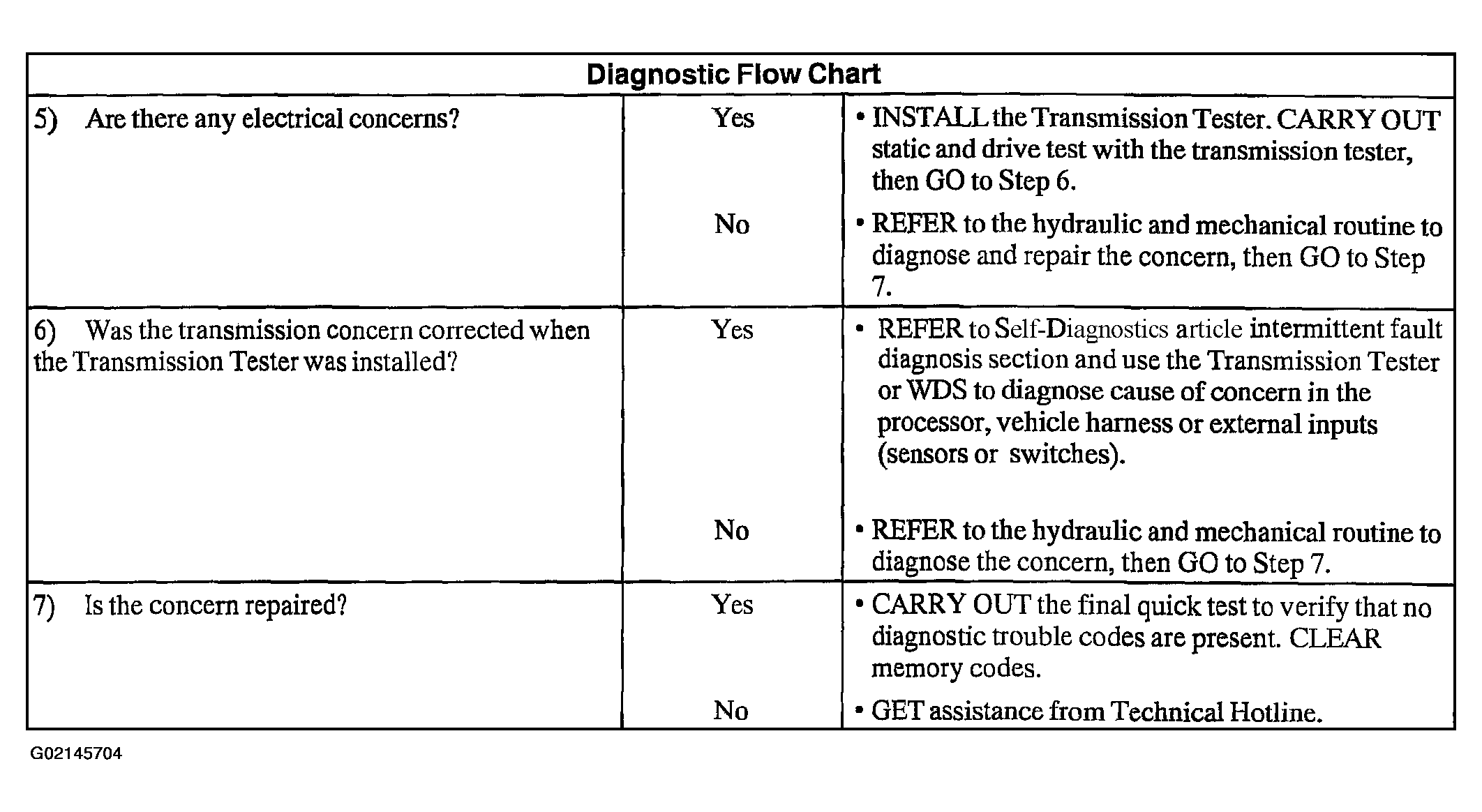

Fig 2: Diagnostic Flow Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
