Hydraulic System: Accumulators

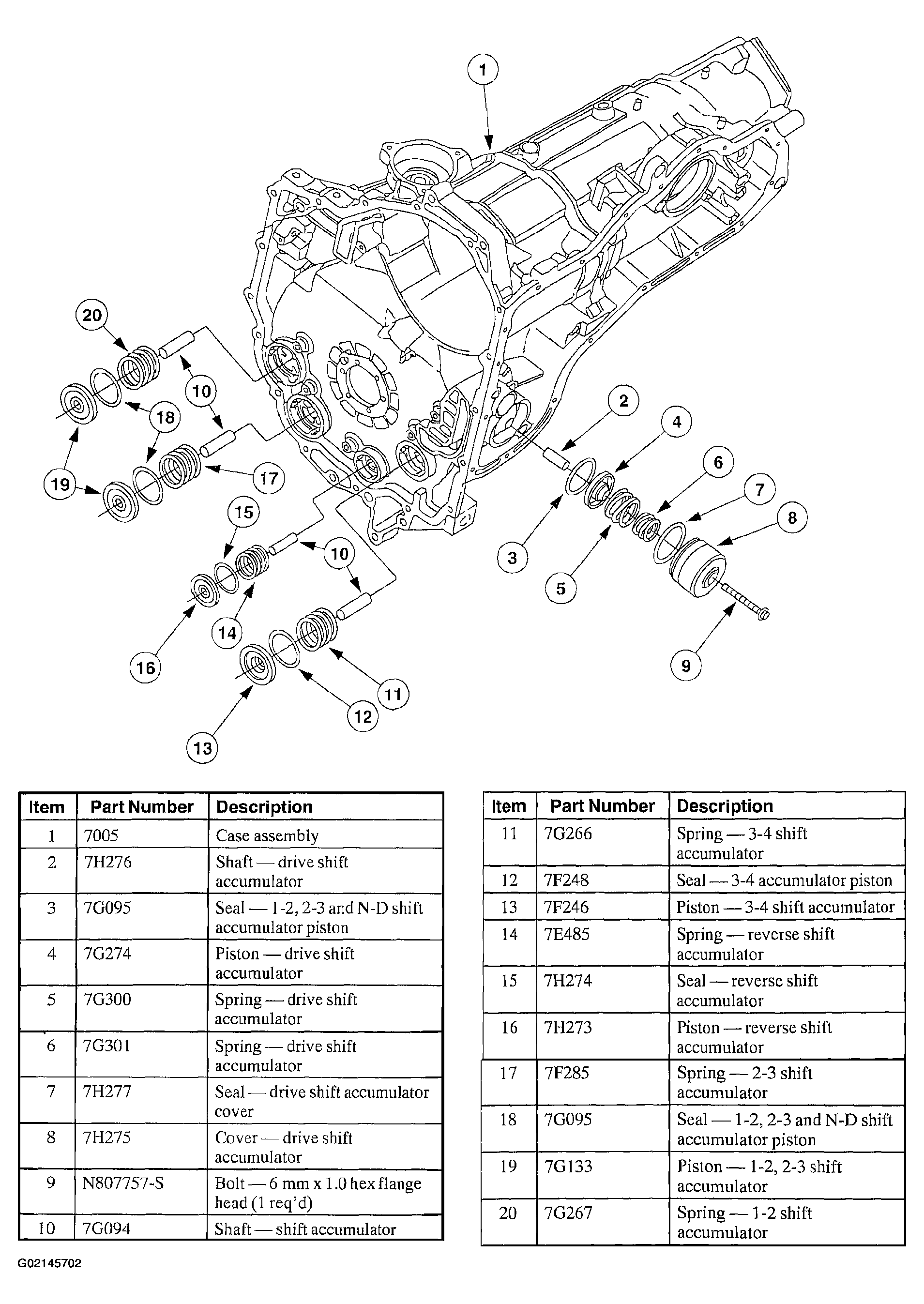

The hydraulic system has accumulators in circuits for five apply components. Each accumulator has a piston (with seal and spring) positioned on a hollow shaft.
The low-intermediate (N-D) accumulator is located in the bottom of the transaxle case.
The chain cover and side of the transaxle case contain four accumulators:
- reverse (N-R)
- intermediate (1-2)
- direct (2-3)
- overdrive (3-4)
