Pinpoint Test C: Excessive Steering Wheel Play

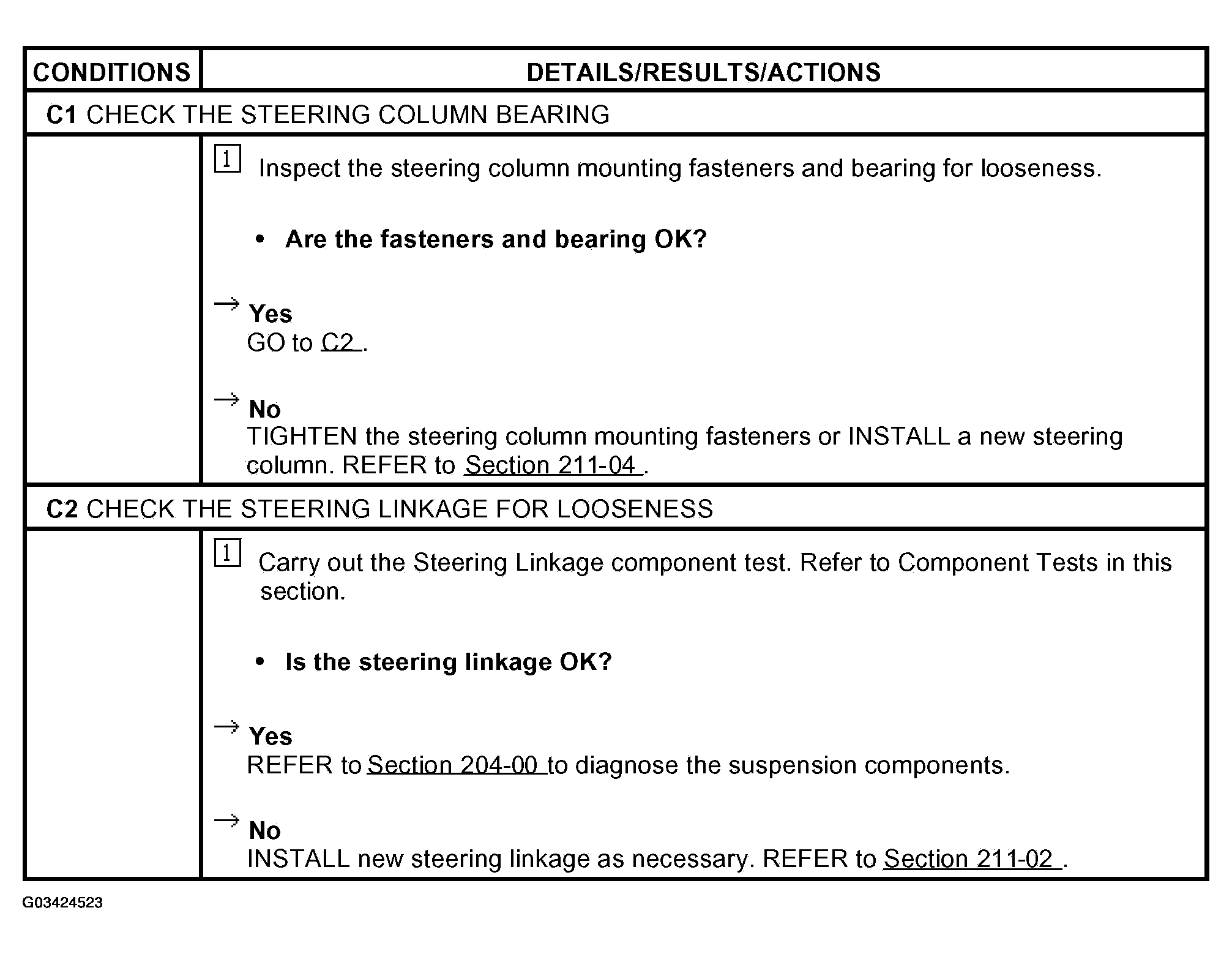

Fig 1: Identifying Pinpoint Test Chart C: Excessive Steering Wheel Play (C1 & C2)

G03424523

Courtesy of FORD MOTOR CO.
