Power Steering
>>
Steering System Components - 3.8L Engine (CIII Power Steering Pump)
Steering System Components - 3.8L Engine (CIII Power Steering Pump)

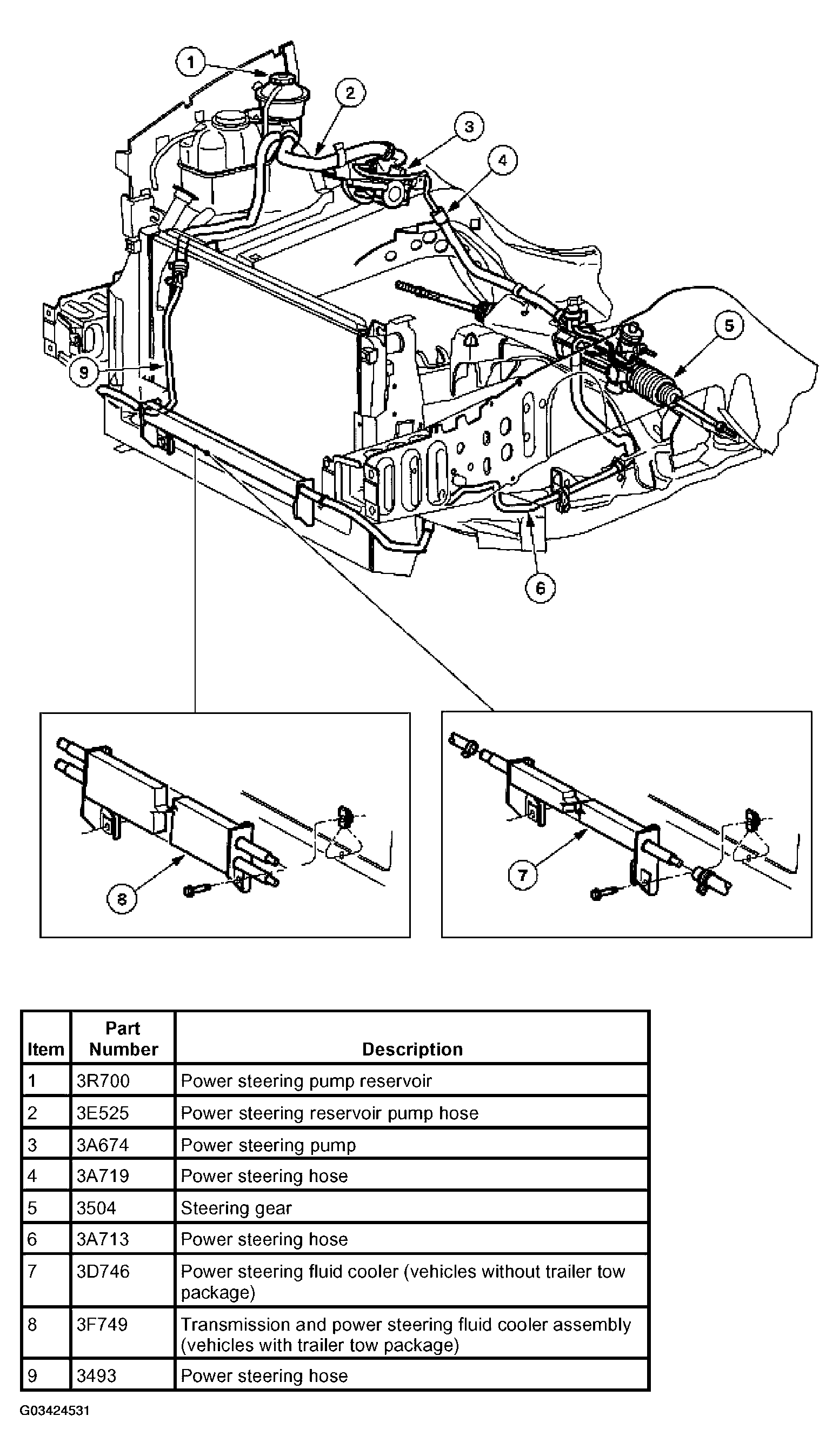

Fig 1: Identifying Steering System Components - 3.8L Engine (CIII Power Steering Pump)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
