Connecting Rod - Side Clearance

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Measure the clearance between the connecting rod and the crankshaft. Verify the measurement is within specification.
- Refer to SPECIFICATIONS .
- If out of specification, install new components as necessary. Refer to ENGINE article for the procedure.

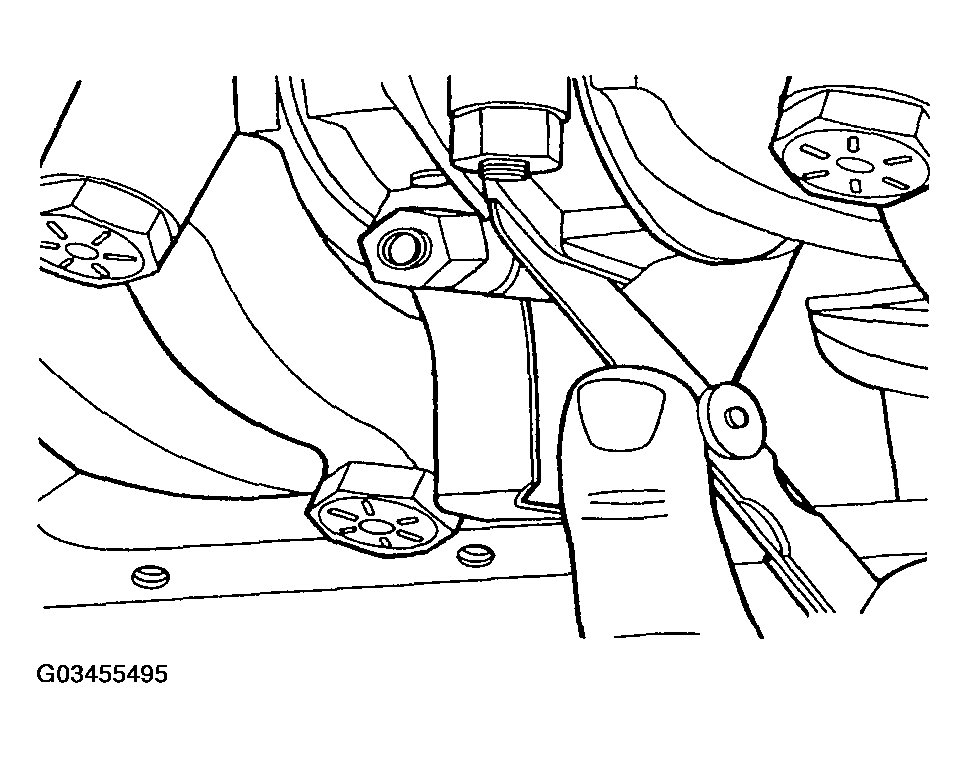

  Fig 1: Measuring Clearance Between Connecting Rod And Crankshaft
  Courtesy of FORD MOTOR CO.
