Resistor - Relays: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trim panels. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Disconnect the heater blower motor switch resistor connector.

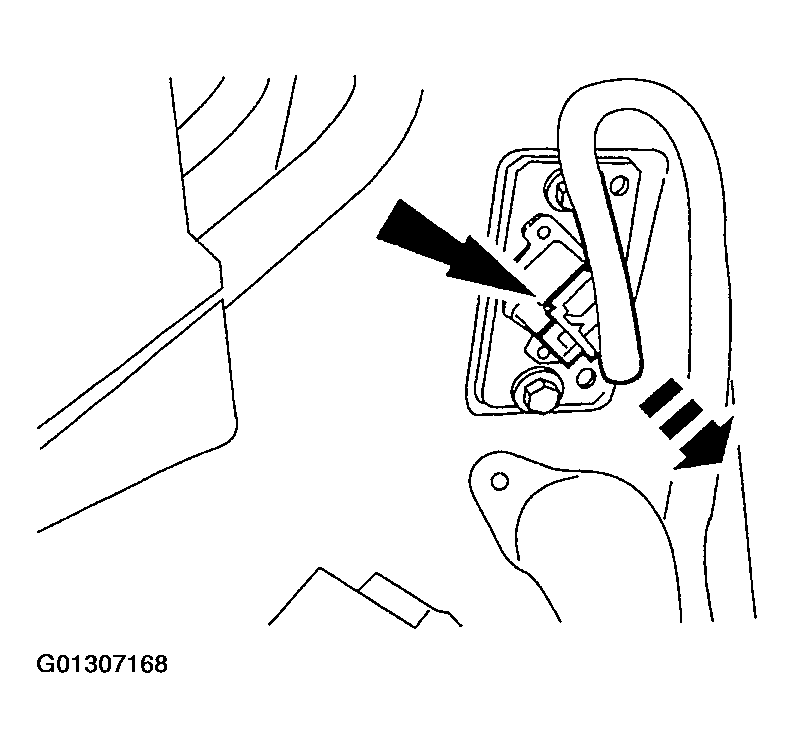

Fig 1: Disconnecting Heater Blower Motor Switch Resistor Connector
Courtesy of FORD MOTOR CO.
Remove the heater blower motor switch resistor (19A706).
1. Remove the screws.
2. Remove the heater blower motor switch resistor.

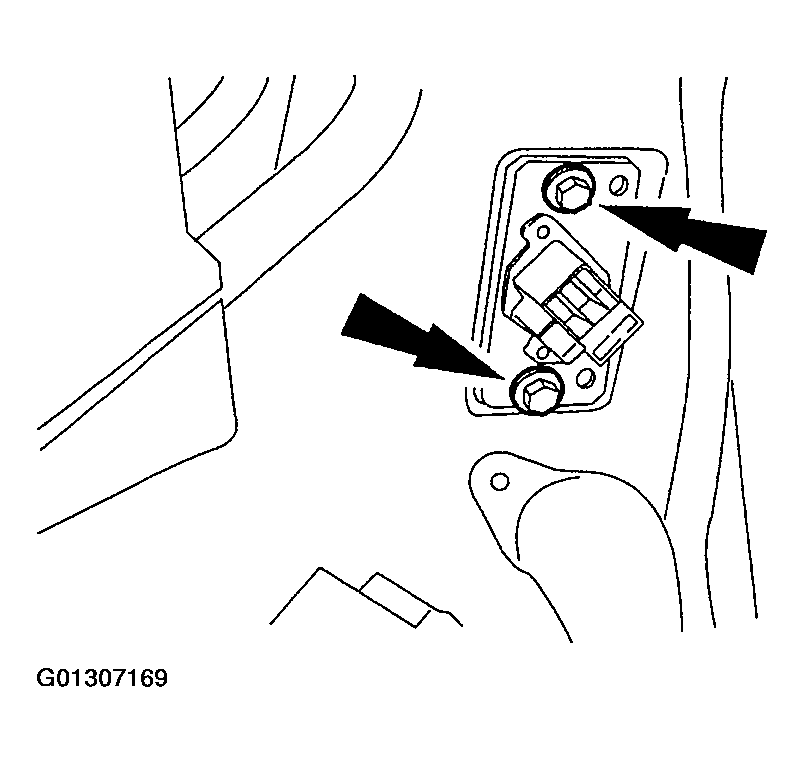

  Fig 2: Removing Heater Blower Motor Switch Resistor
  Courtesy of FORD MOTOR CO.
