Auxiliary Blower Motor Speed Control Relay: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panels. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the relay cover.

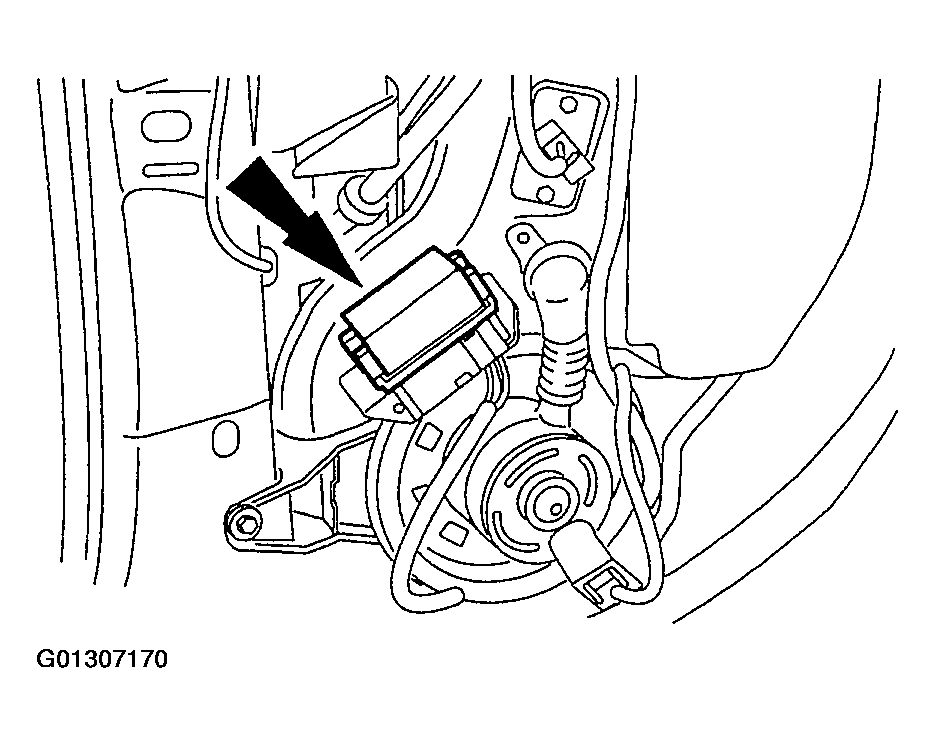

    Fig 1: Removing Relay Cover
    G01307170Courtesy of FORD MOTOR CO.
  3. Remove the relays as necessary.

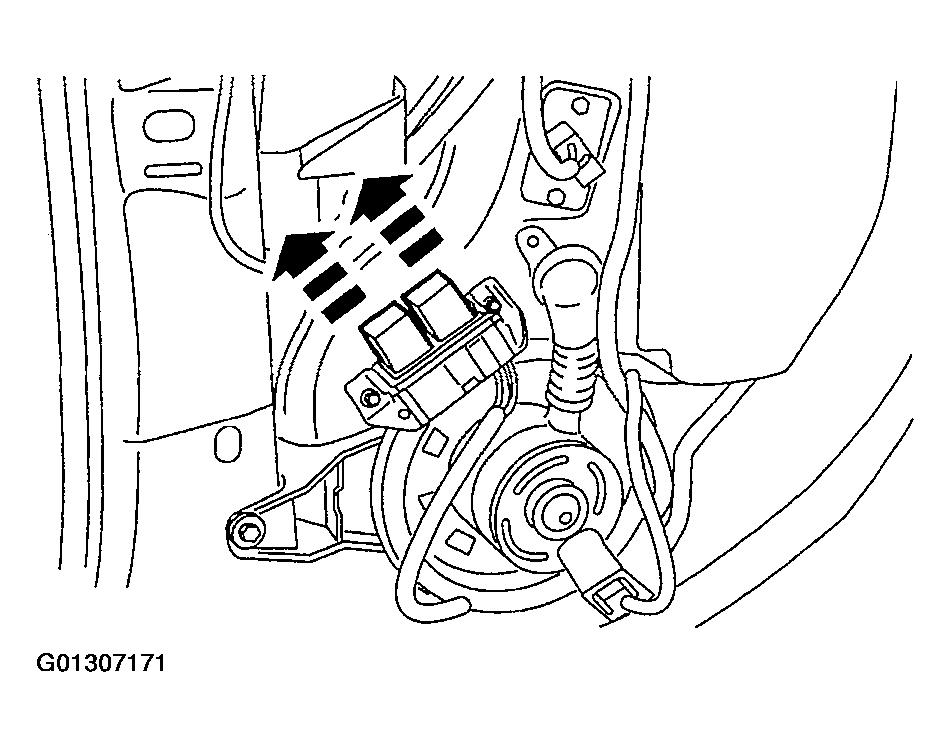

    Fig 2: Removing Relays
    G01307171Courtesy of FORD MOTOR CO.
