Heater Hose Coupling: Connect

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Clean the tubes and lubricate with MERPOL® meeting Ford specification ESE-M99B144-B or plain water.
Install a new coupling retainer, spacer, and lubricated O-ring seals into the quick disconnect coupling housing.

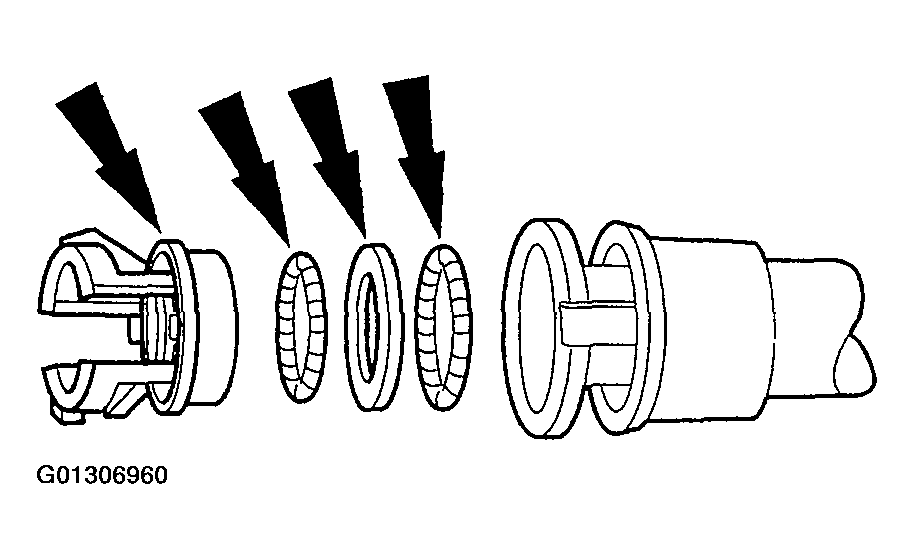

Fig 1: Installing Coupling Retainer, Spacer, And Lubricated O-Ring Seals
Courtesy of FORD MOTOR CO.
Push the heater water hose with a quick disconnect coupling onto the tube.

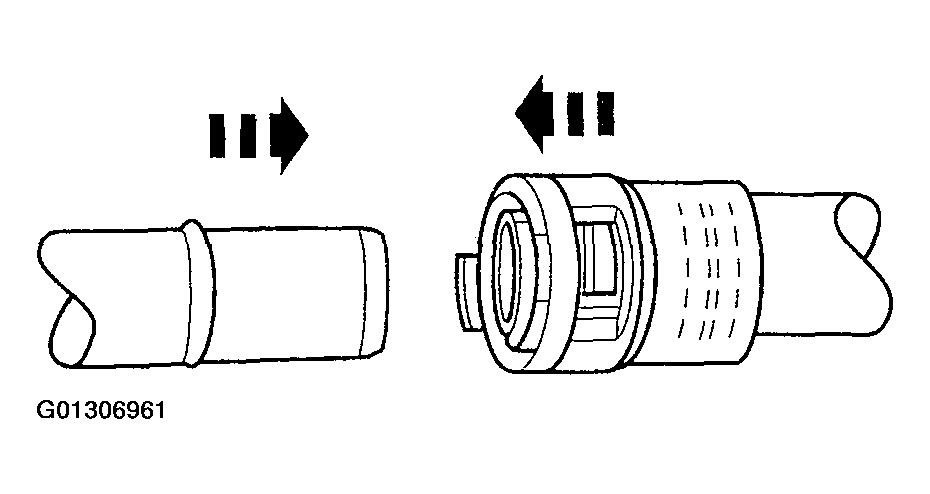

Fig 2: Disconnecting Heater Water Hose With Tube
Courtesy of FORD MOTOR CO.
Make sure the coupling is fully engaged by lightly pulling on the heater water hose.
