Pinpoint Test J: The Blower Motor Operates Continuously In High Speed
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

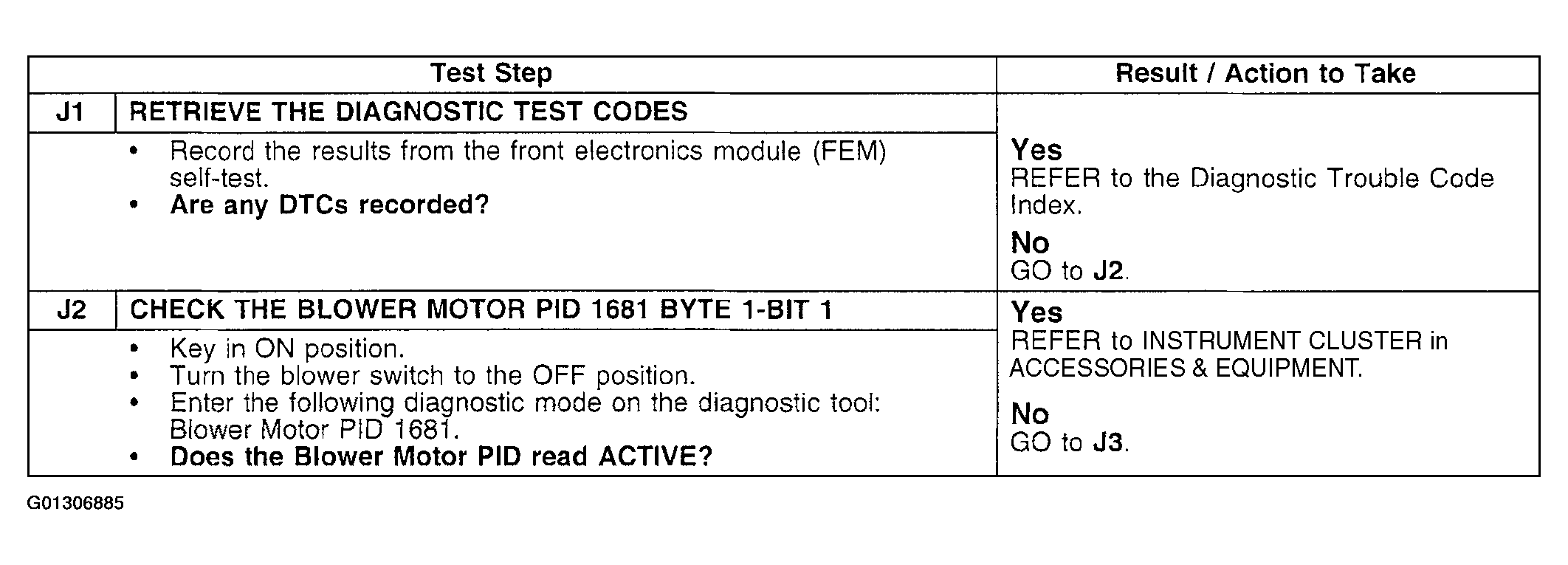

Fig 1: Pinpoint Test J: Blower Motor Operates Continuously In High Speed (Steps J1-J2)
Courtesy of FORD MOTOR CO.
Fig 2: Pinpoint Test J: Blower Motor Operates Continuously In High Speed (Steps J1-J2)
