Block Heater: Installation

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Make sure the power cable is routed and secured away from rotating or hot components or damage to the cable can occur.

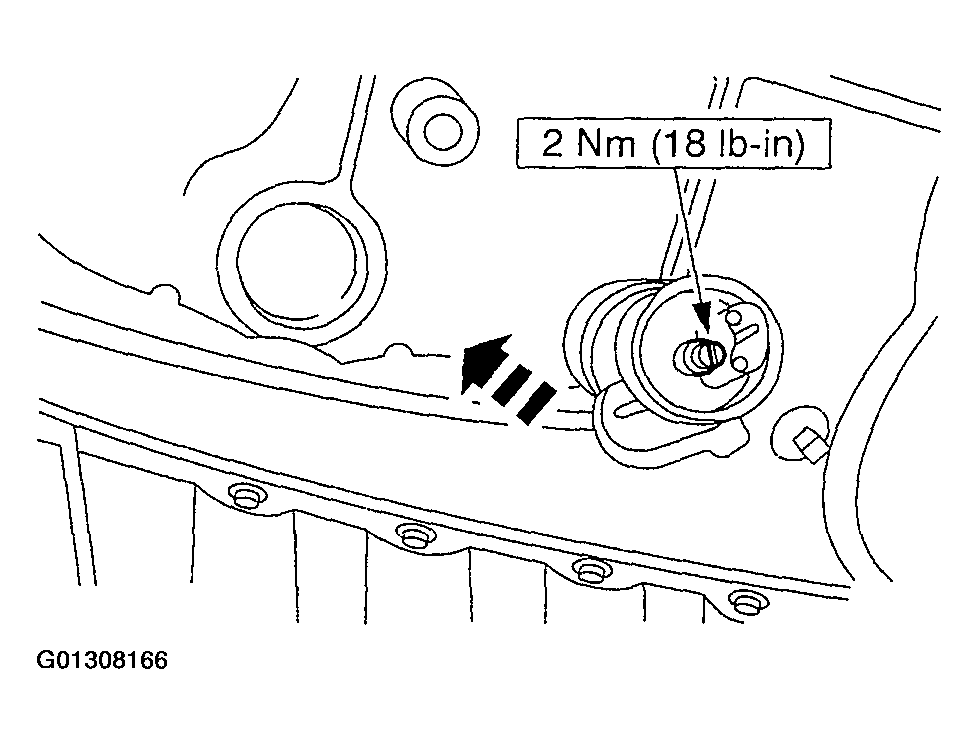

    Fig 1: Removing Block Heater
    G01308166Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
  2. Fill the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
