Removal & Installation: Condenser: Removal

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover refrigerant using an approved refrigerant recovery system. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Measure the amount of oil lost during recovery and record.
  2. Remove the front fascia. Remove battery box air duct. See Fig 1 .
  3. Remove Condenser Radiator Fan Module (CRFM) closeout panel. See Fig 2 .

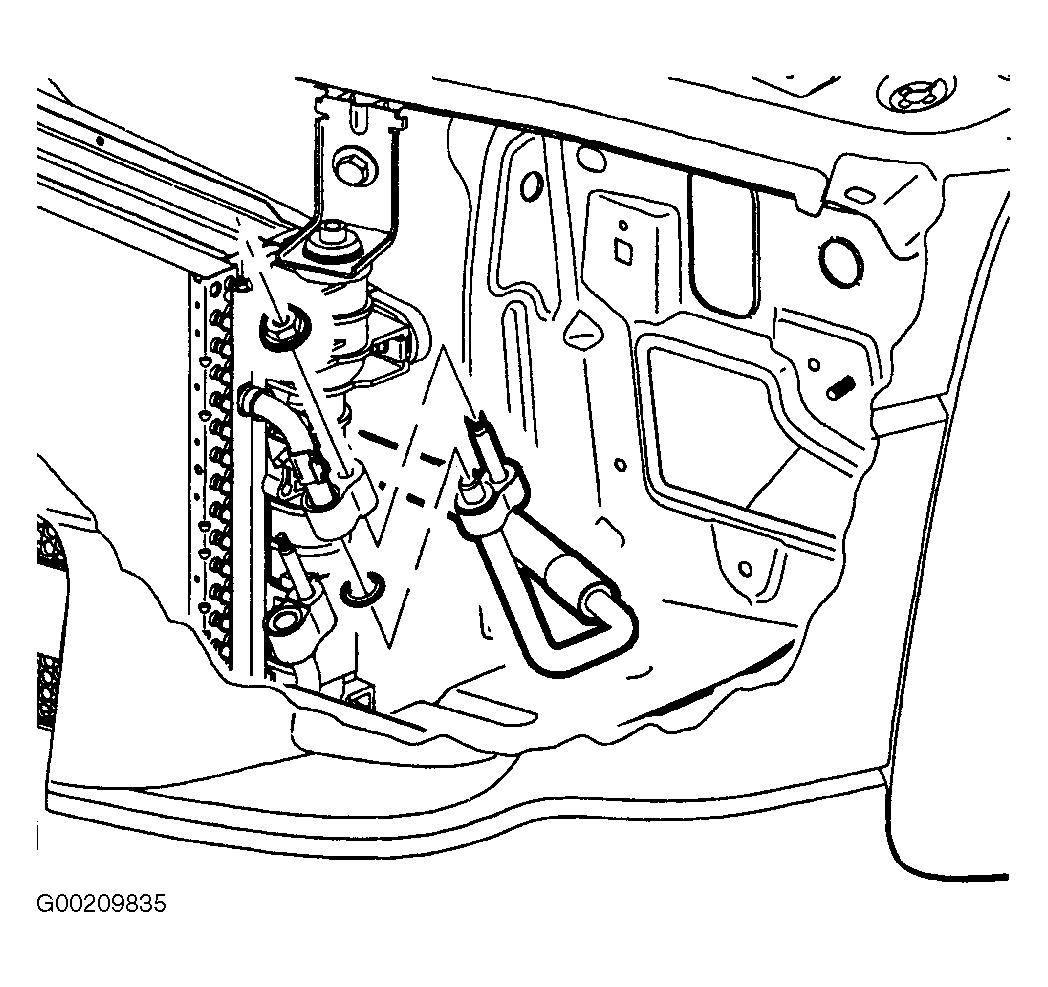

  4. Remove Receiver/Dehydrator (RD) line from condenser. See Figure .
  5. Install protective cap to RD line to prevent contamination and desiccant saturation.
  6. Remove compressor hose from condenser. Install protective cap to the compressor hose to prevent contamination and desiccant saturation.
  7. Remove upper condenser radiator fan module bracket and puck assembly. See Fig 3 . Lift condenser while holding upper retention tabs forward and remove condenser. See Fig 4 .

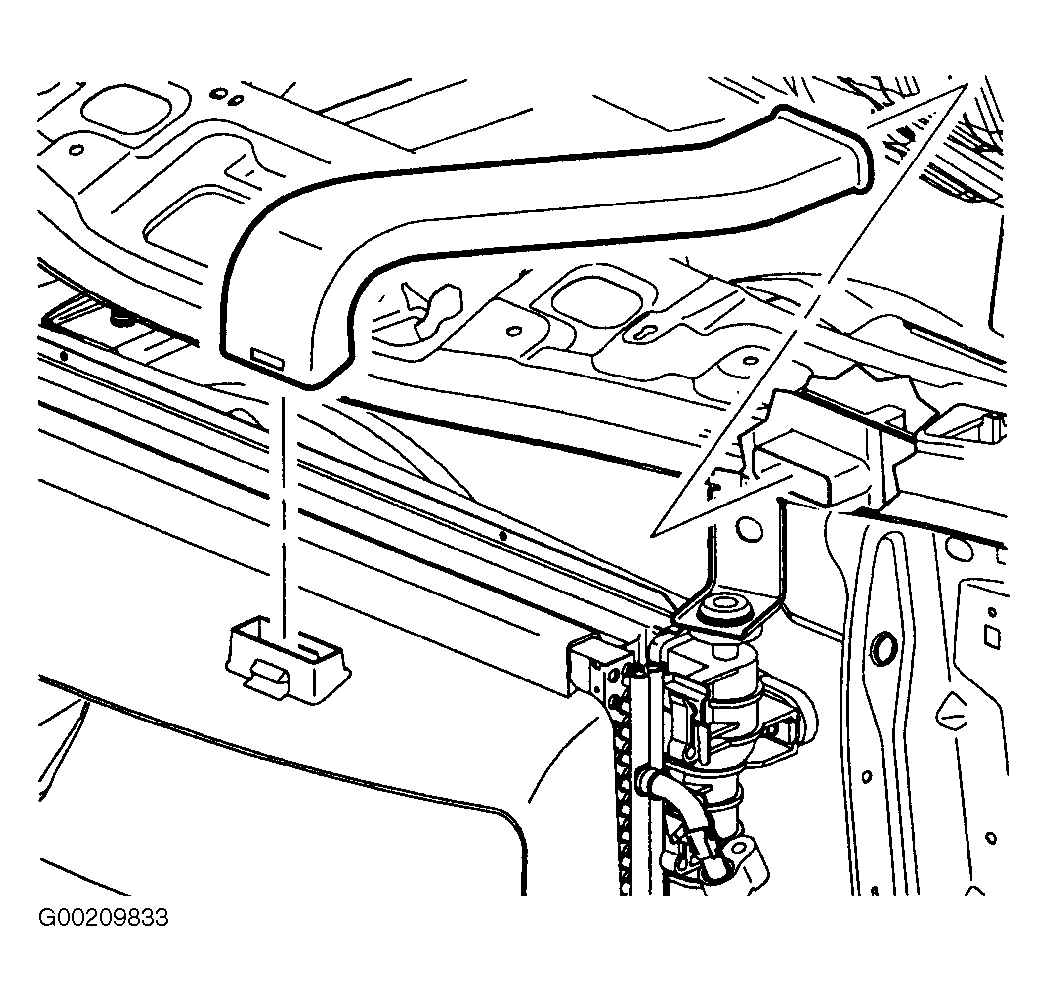

Fig 1: Identifying Battery Box Air Duct
G00209833Courtesy of GENERAL MOTORS CORP.

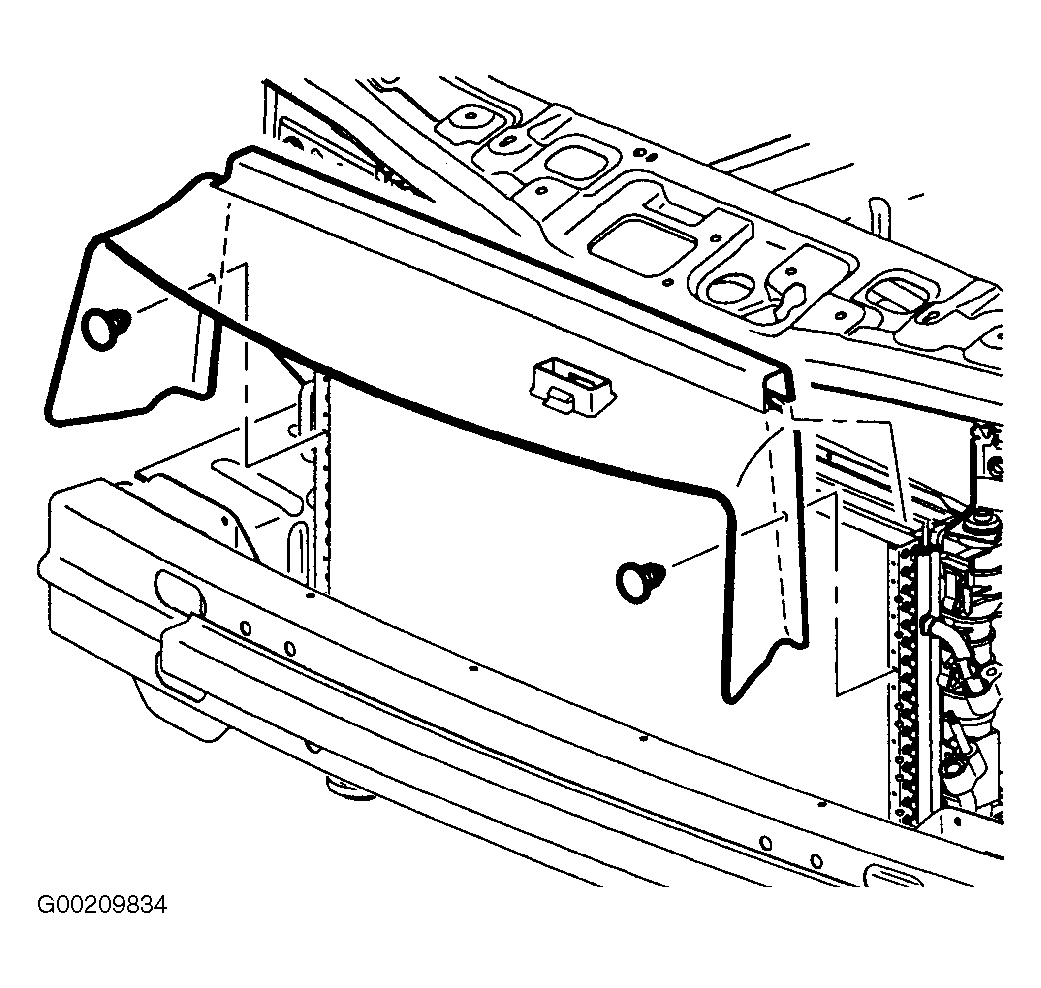

Fig 2: Removing & Installing Radiator Fan Module
G00209834Courtesy of GENERAL MOTORS CORP.

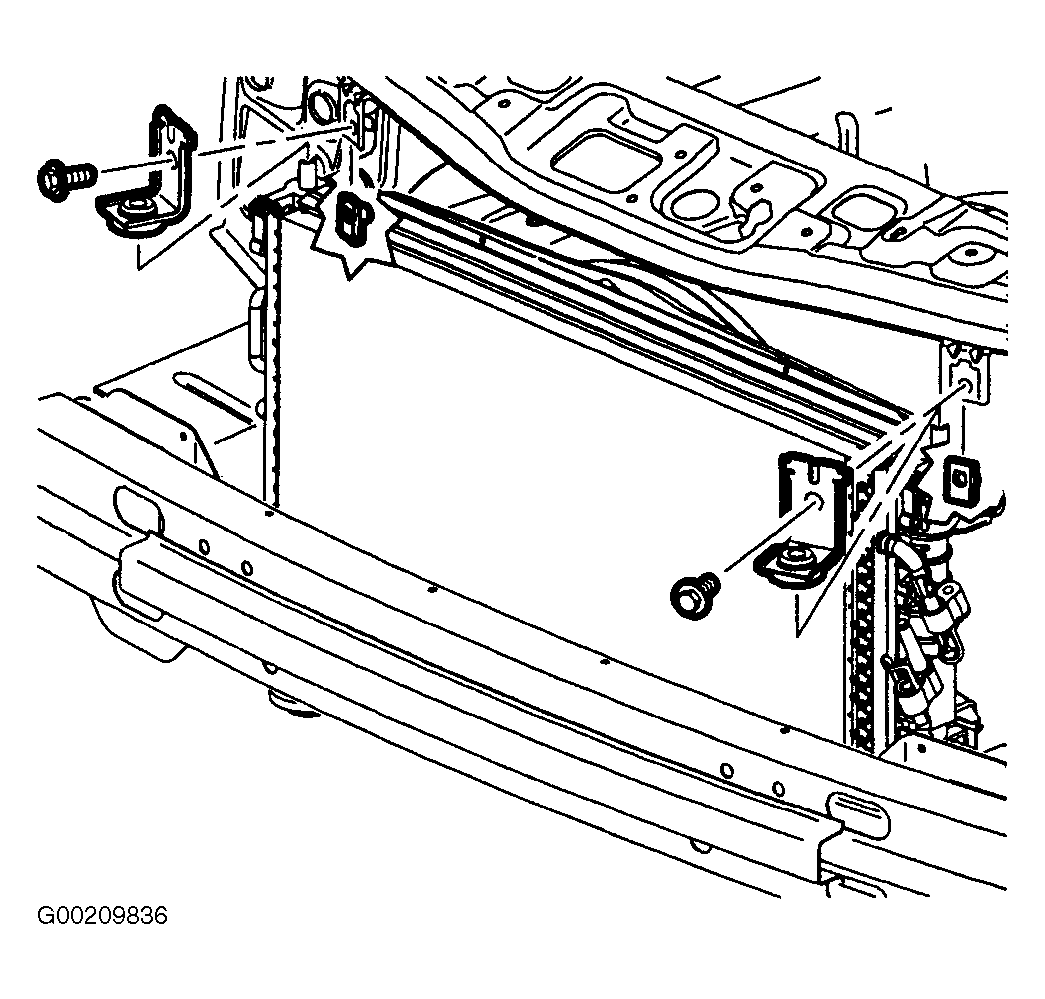

Fig 3: Removing & Installing Condenser Radiator Fan Module Bracket
G00209836Courtesy of GENERAL MOTORS CORP.

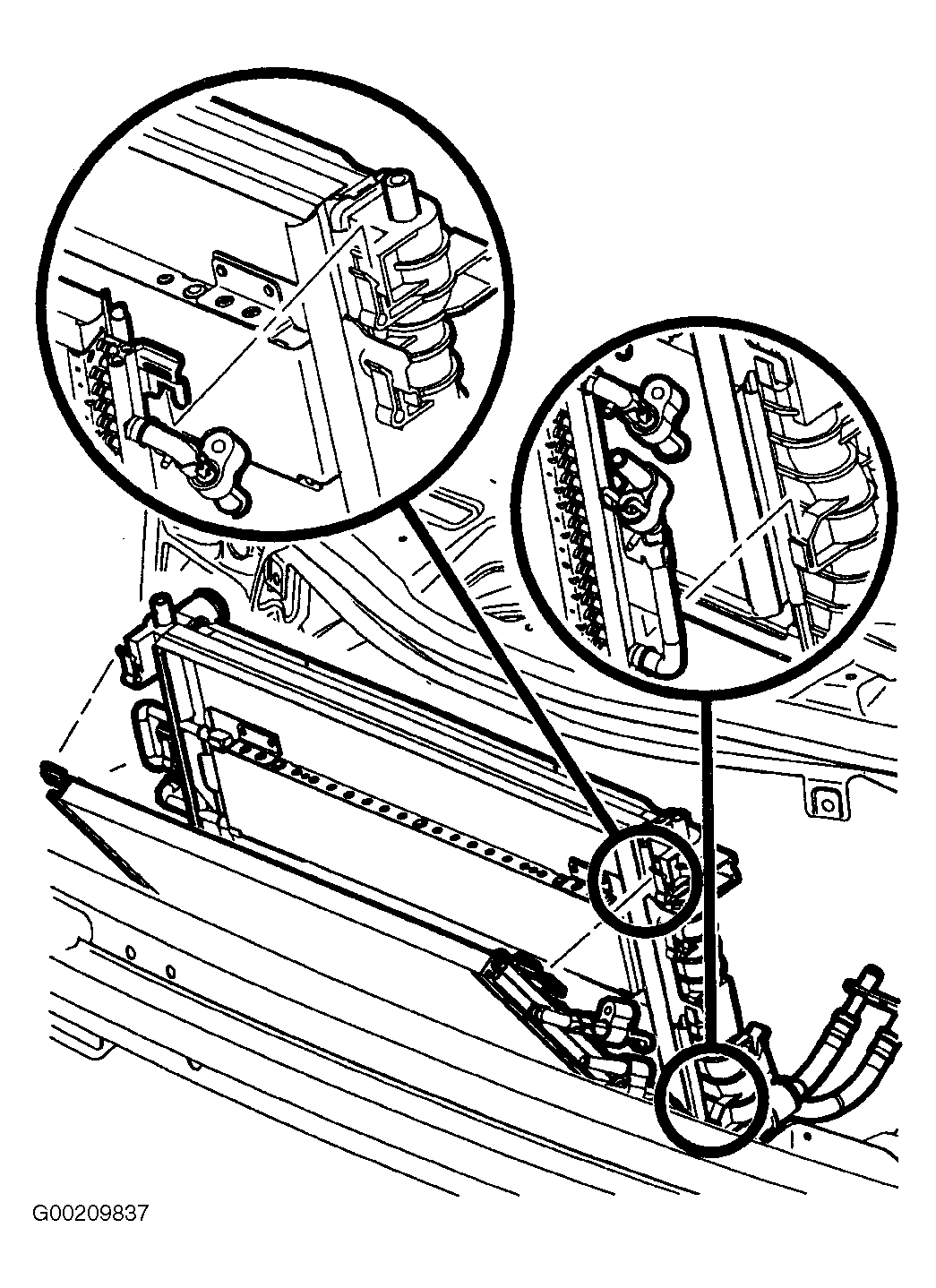

Fig 4: Removing & Installing Condenser
G00209837Courtesy of GENERAL MOTORS CORP.
