Underbody Misalignment Check
WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
- The dimensions of the underbody must be restored to provide the correct front and rear wheel alignment geometry.
- The dimensions are measured between the centers of the existing holes in the underbody unless otherwise specified.
- Inspect all underbody structural members for cracks, twists or bends. Check all welded connections for cracks. Inspect the support brackets for looseness. Carry out any necessary repairs or install new components as necessary.
- Underbody dimension tolerances are +3 mm (0.12 in).
- To align or square a body, take 2 opposite diagonal measurements between pillars. Take measurements between reference points such as crease lines or weld joints, which are diagonally opposite each other on the 2 pillars being measured.
- Due to the design and construction of the unibody vehicle, it is important to monitor the upper body structure while making any corrections to the underbody structure.
- The dimensions shown are symmetrical.
CAUTION:
Do not correct a serious misalignment with one jacking operation. Align each section proportionately until the correct dimensions are obtained.
NOTE:
To make sure of accurate measurements, remove all trim from the reference points to expose bare metal.

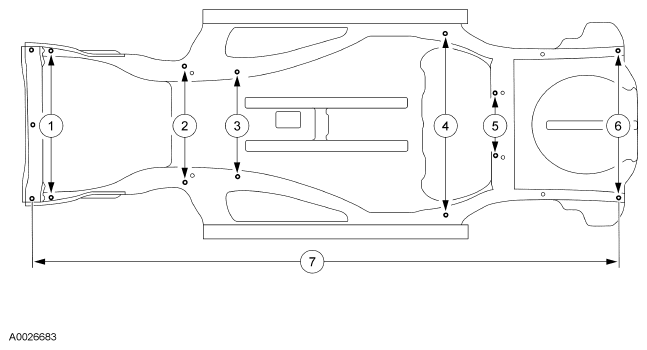

UNDERBODY DIMENSIONS
| Location | Dimension |
|---|---|
| 1 | 1,020 mm (40.1 in) |
| 2 | 780 mm (30.7 in) |
| 3 | 738 mm (29.0 in) |
| 4 | 1,250 mm (49.2 in) |
| 5 | 394 mm (15.5 in) |
| 6 | 1,034 mm (40.7 in) |
| 7 | 3,900 mm (153.54 in) |
