Battery Cables: Installation

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.

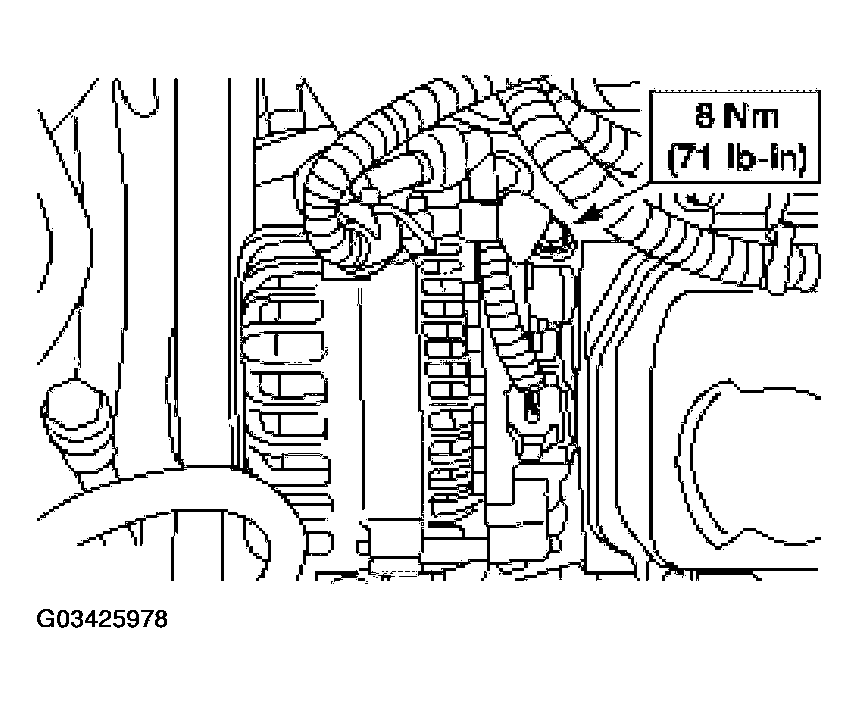

Fig 1: Installing Nut

Courtesy of FORD MOTOR CO.

Fig 2: Installing Cable

Courtesy of FORD MOTOR CO.

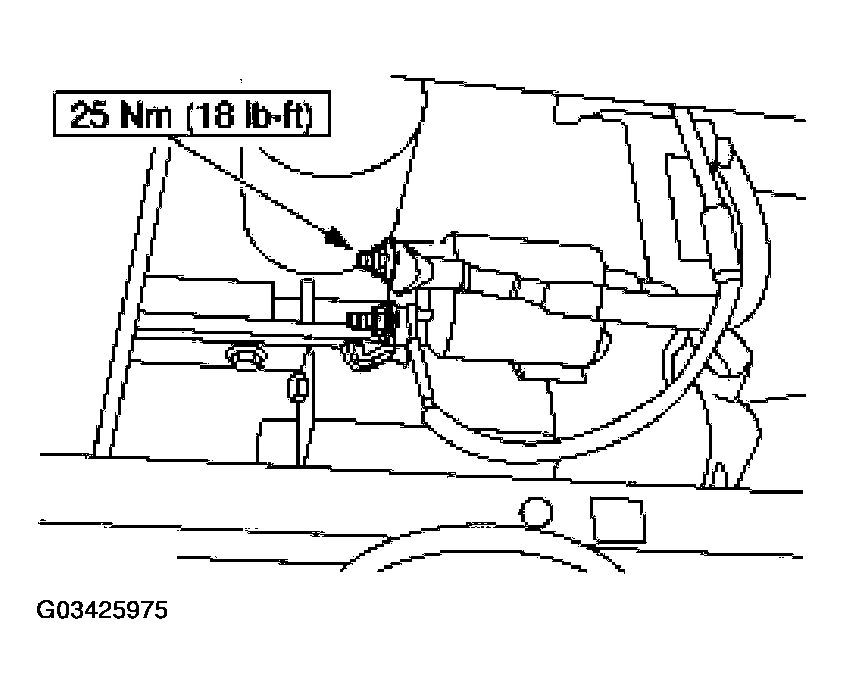

Fig 3: Installing Nut

Courtesy of FORD MOTOR CO.

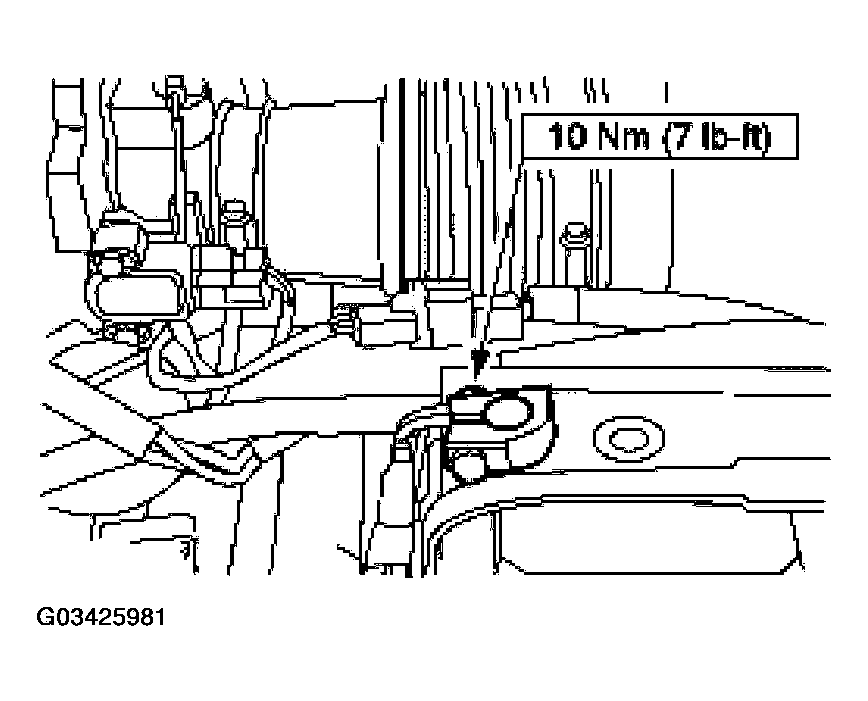

Fig 4: Installing Cable

Courtesy of FORD MOTOR CO.

Fig 5: Installing Nut

Courtesy of FORD MOTOR CO.

Fig 6: Installing Terminal Bolt

Courtesy of FORD MOTOR CO.

Fig 7: Installing Terminal Bolt

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
