Pinpoint Test B: Unable To Enter Self-Test

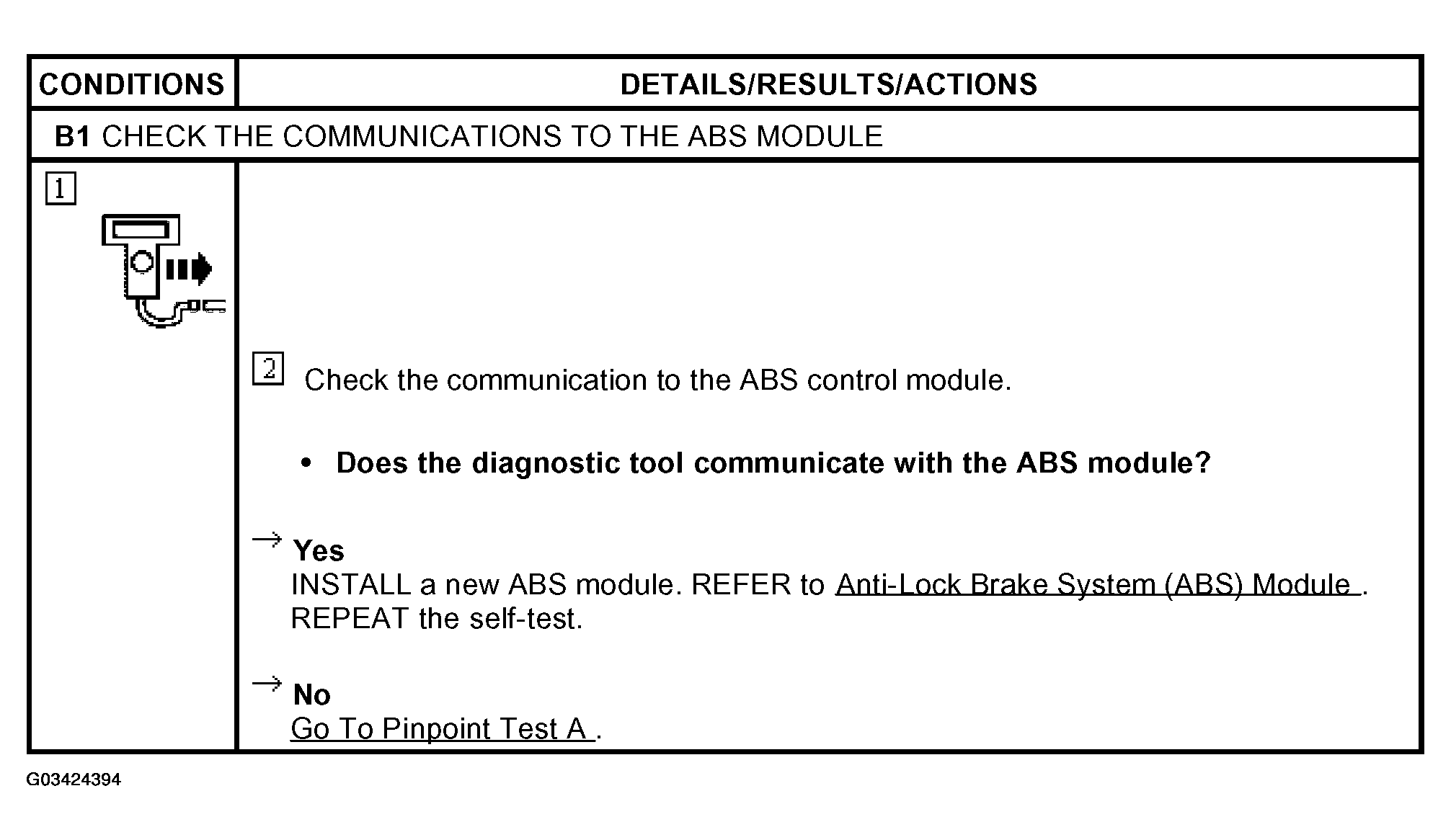

Fig 1: Pinpoint Test B: Unable To Enter Self-Test (B1)
G03424394Courtesy of FORD MOTOR CO.
