Passenger Seat: Installation

All vehicles

1. Position the seat in the vehicle.
2. Install the bolts.

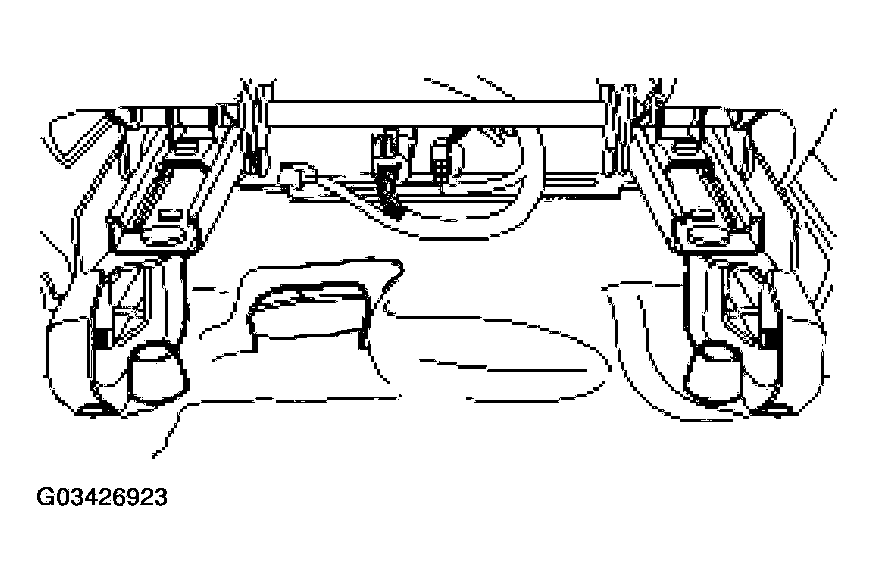

   Fig 1: Installing Bolts

   Courtesy of FORD MOTOR CO.
3. Install the nuts.

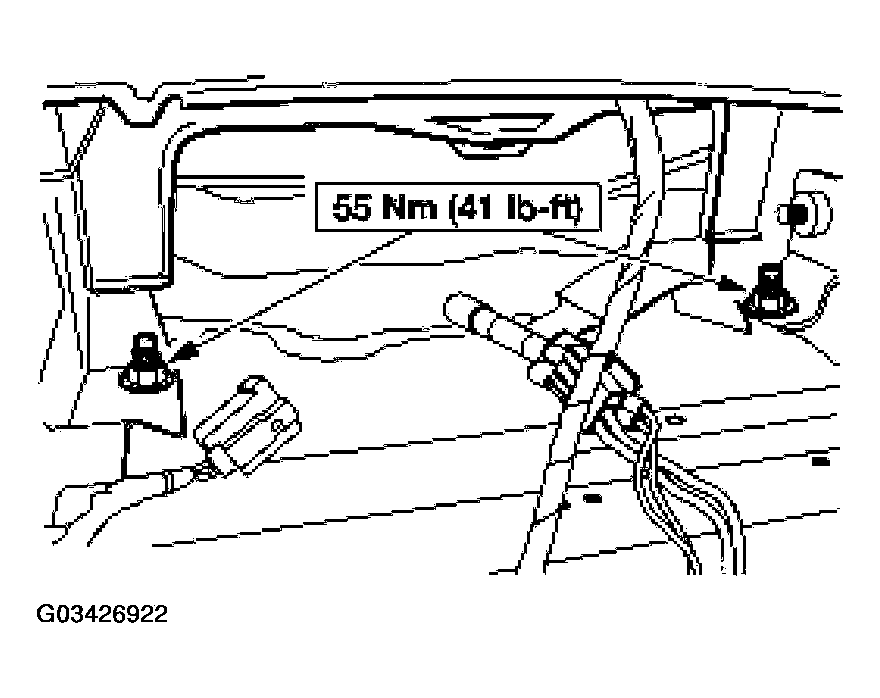

   Fig 2: Installing Nuts

   Courtesy of FORD MOTOR CO.
4. Install the nut cover caps.
   Fig 3: Installing Nut Cover Caps

   Courtesy of FORD MOTOR CO.
5. Connect the seat electrical connector.

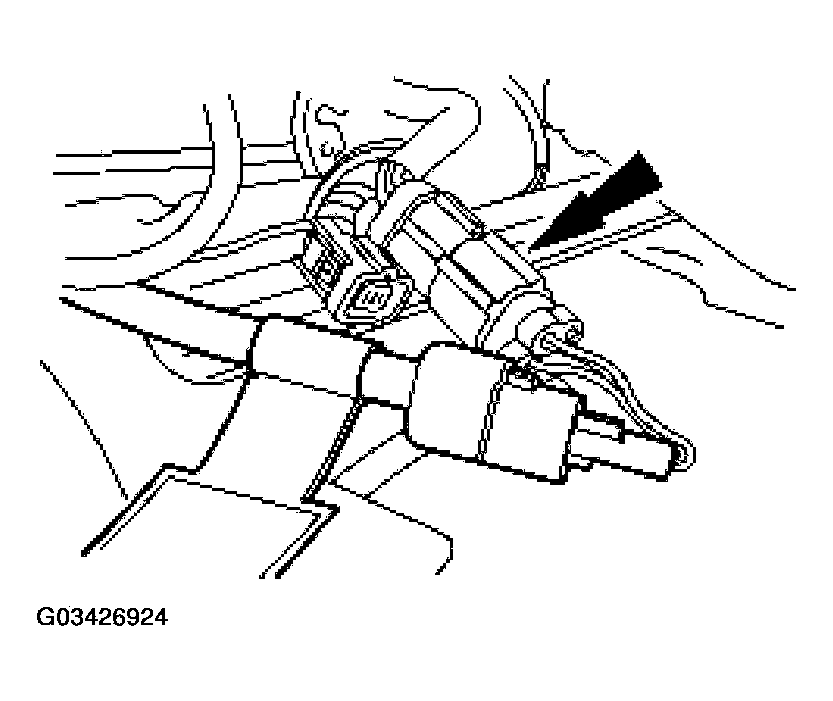

   Fig 4: Connecting Seat Electrical Connector

   Courtesy of FORD MOTOR CO.

   Vehicles without side air bags

6. Install the side air bag bridge resistor onto the seat frame.
   Fig 5: Installing Side Air Bag Bridge Resistor Onto Seat Frame

   Courtesy of FORD MOTOR CO.

   Vehicles with side air bags

7. Connect the passenger seat side air bag electrical connector.
   1. Connect the passenger seat side air bag electrical connector.
   2. Slide and engage the passenger seat side air bag electrical connector locking clip.
      Fig 6: Connecting Passenger Seat Side Air Bag Electrical Connector

      Courtesy of FORD MOTOR CO.

      All vehicles

8. Repower the SRS. Refer to ACTIVATING SYSTEM .
9. Check the active restraint system for correct operation.
