Steering System Components - 3.8 L Engine (CIII Power Steering Pump)

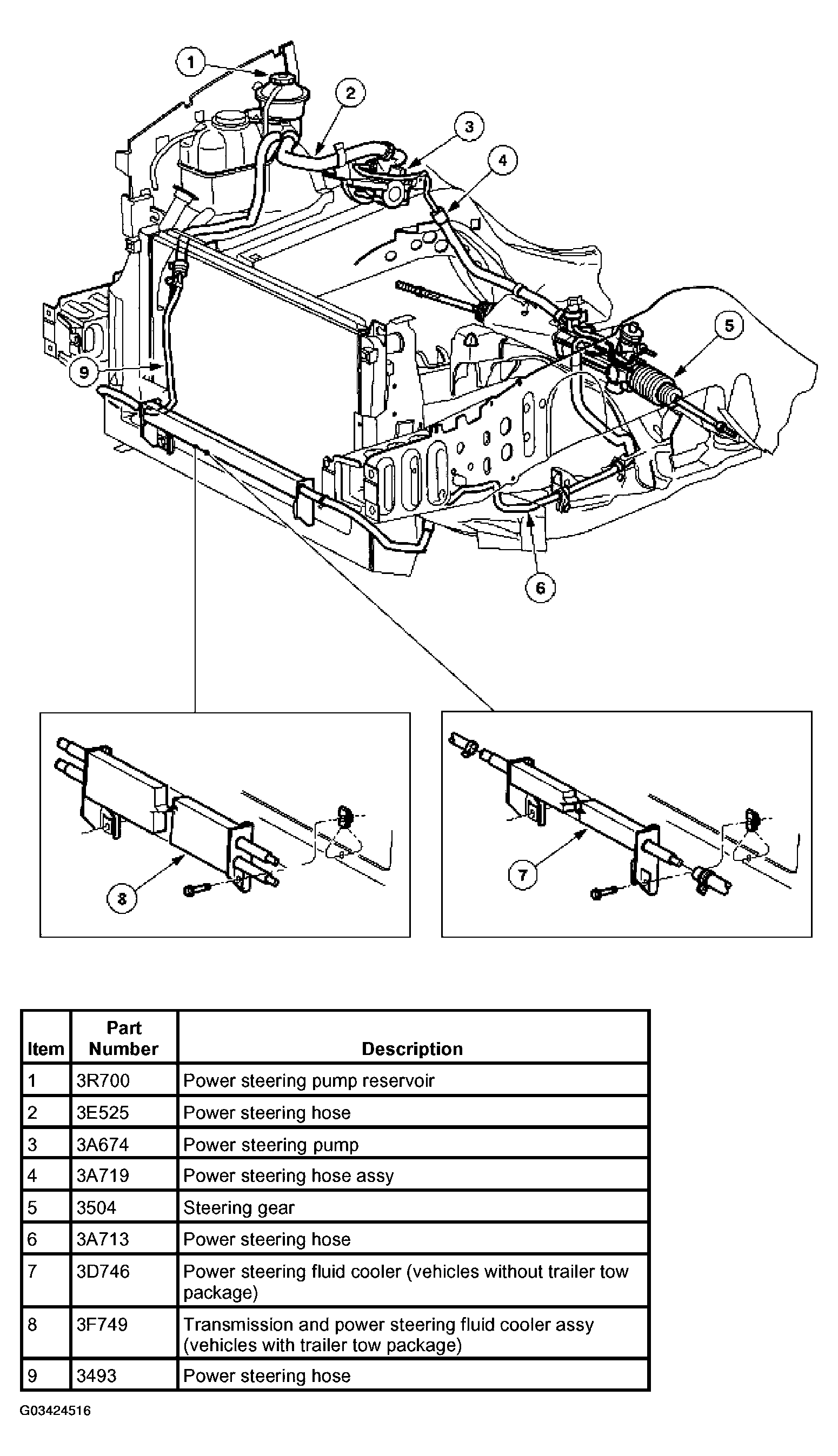

Fig 1: Identifying Steering System Components - 3.8 L Engine (CIII Power Steering Pump)

Courtesy of FORD MOTOR CO.

For additional information on the power steering pump reservoir (3R700), refer to POWER STEERING .

For additional information on the steering wheel and column assembly, refer to STEERING COLUMN .

For additional information on the power steering hoses, refer to POWER STEERING .

For additional information on the power steering fluid cooler (3D746) and the transmission and power steering fluid cooler assembly (3F749), refer to POWER STEERING .

For additional information on the power steering pump (3A674), refer to POWER STEERING .

For additional information on the steering gear (3504), refer to POWER STEERING .
