Steering Gear Bushing/Preload

  1. Raise and support the vehicle so the wheels are just above the ground.
  2. Check for looseness (clatter) in the steering gear by moving it up, down, fore and aft.

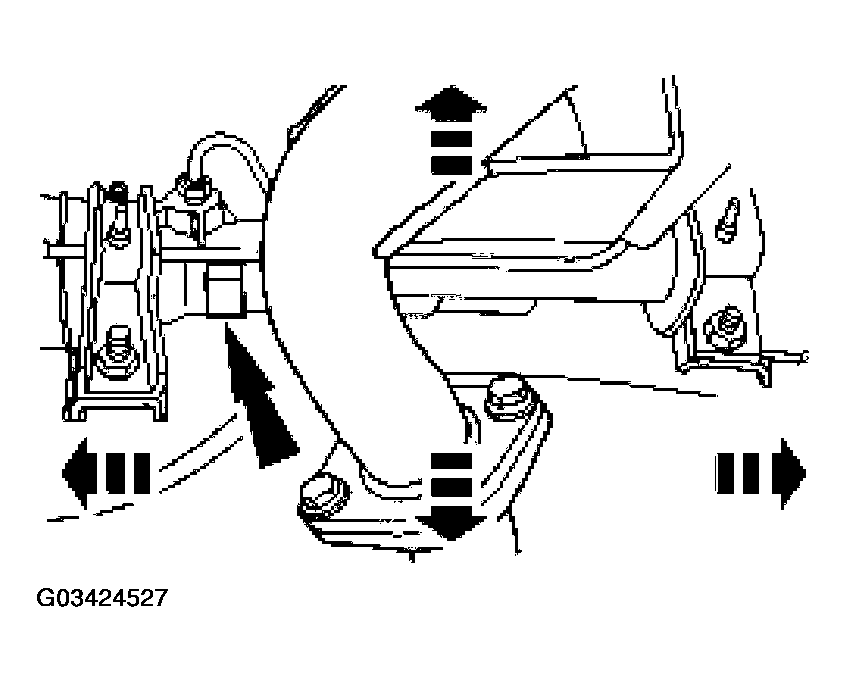

    3. Fig 1: Checking For Loosens (Clatter) In Steering Gear
    G03424527Courtesy of FORD MOTOR CO.
  3. If the steering gear is excessively loose, replace the steering gear. Refer to STEERING GEAR .
