Pinpoint Test F: The Washer Pump Is Inoperative - Front And Rear Washers Stay On Continuously.

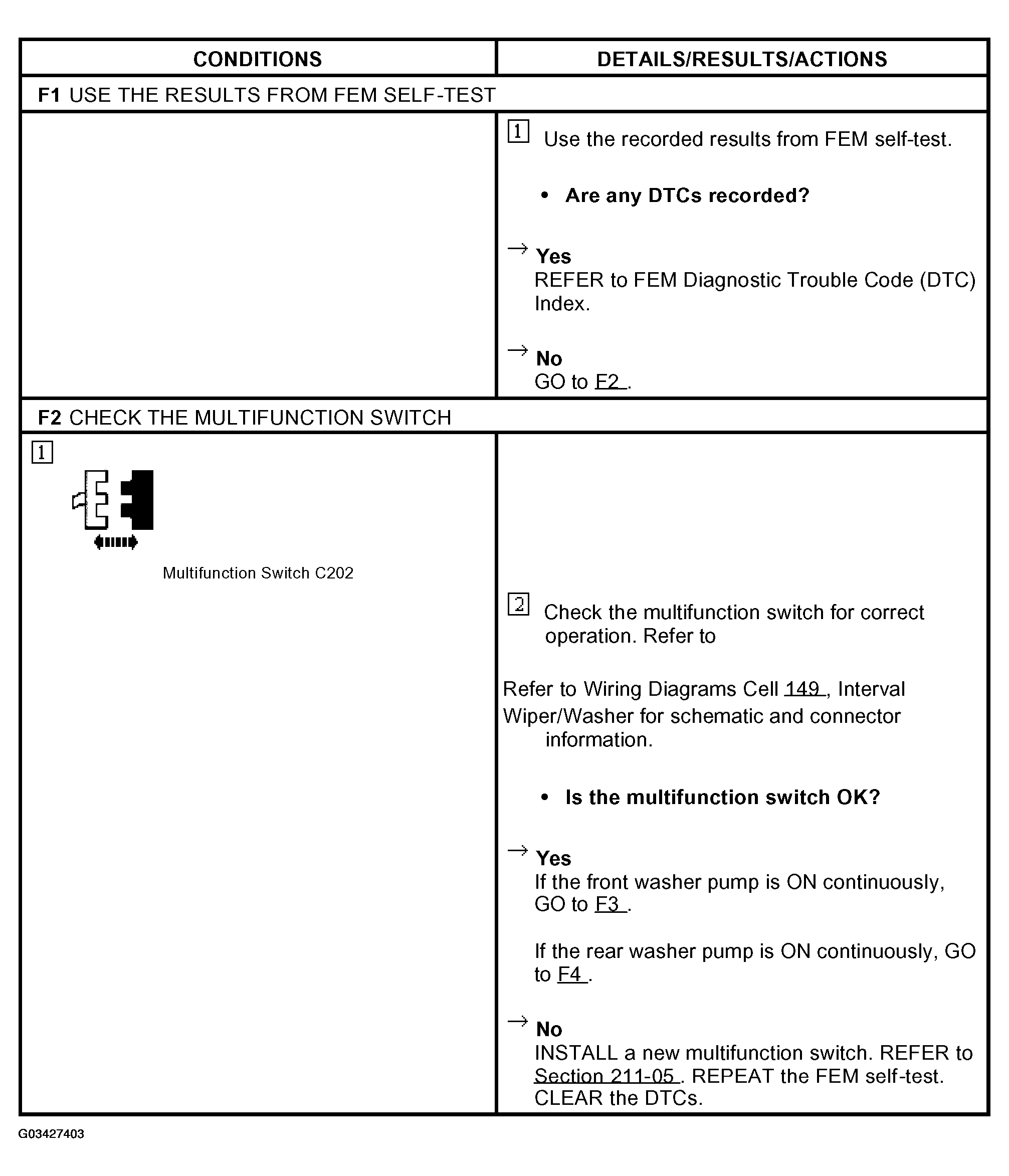

Fig 1: Pinpoint Test F: Washer Pump Is Inoperative - Front And Rear Washers Stay On Continuously (F1 & F2)
G03427403Courtesy of FORD MOTOR CO.

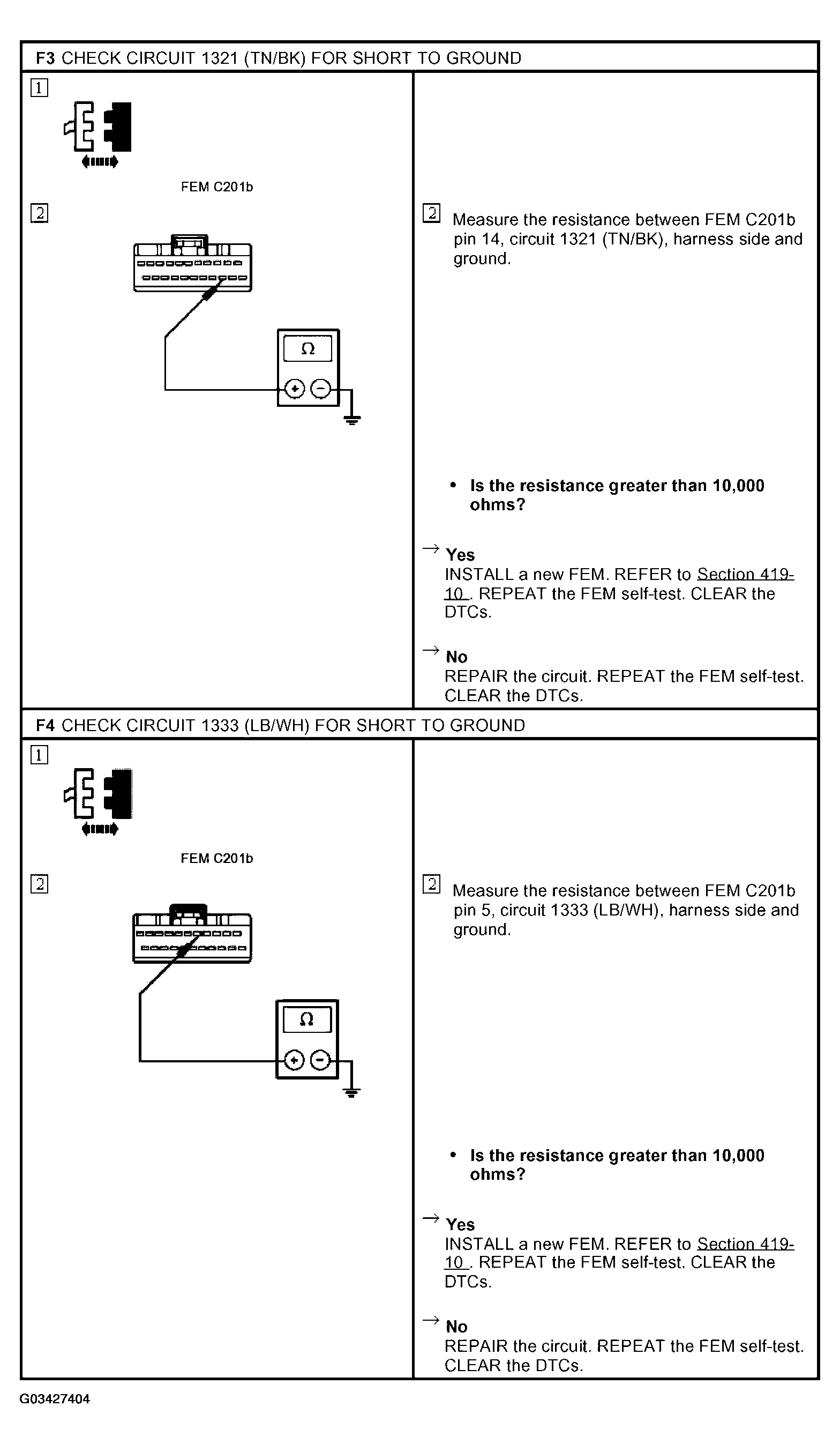

Fig 2: Pinpoint Test F: Washer Pump Is Inoperative - Front And Rear Washers Stay On Continuously (F3 & F4)
G03427404Courtesy of FORD MOTOR CO.
