Pinpoint Test C: No Communication With The Remote Keyless Entry (RKE) Module

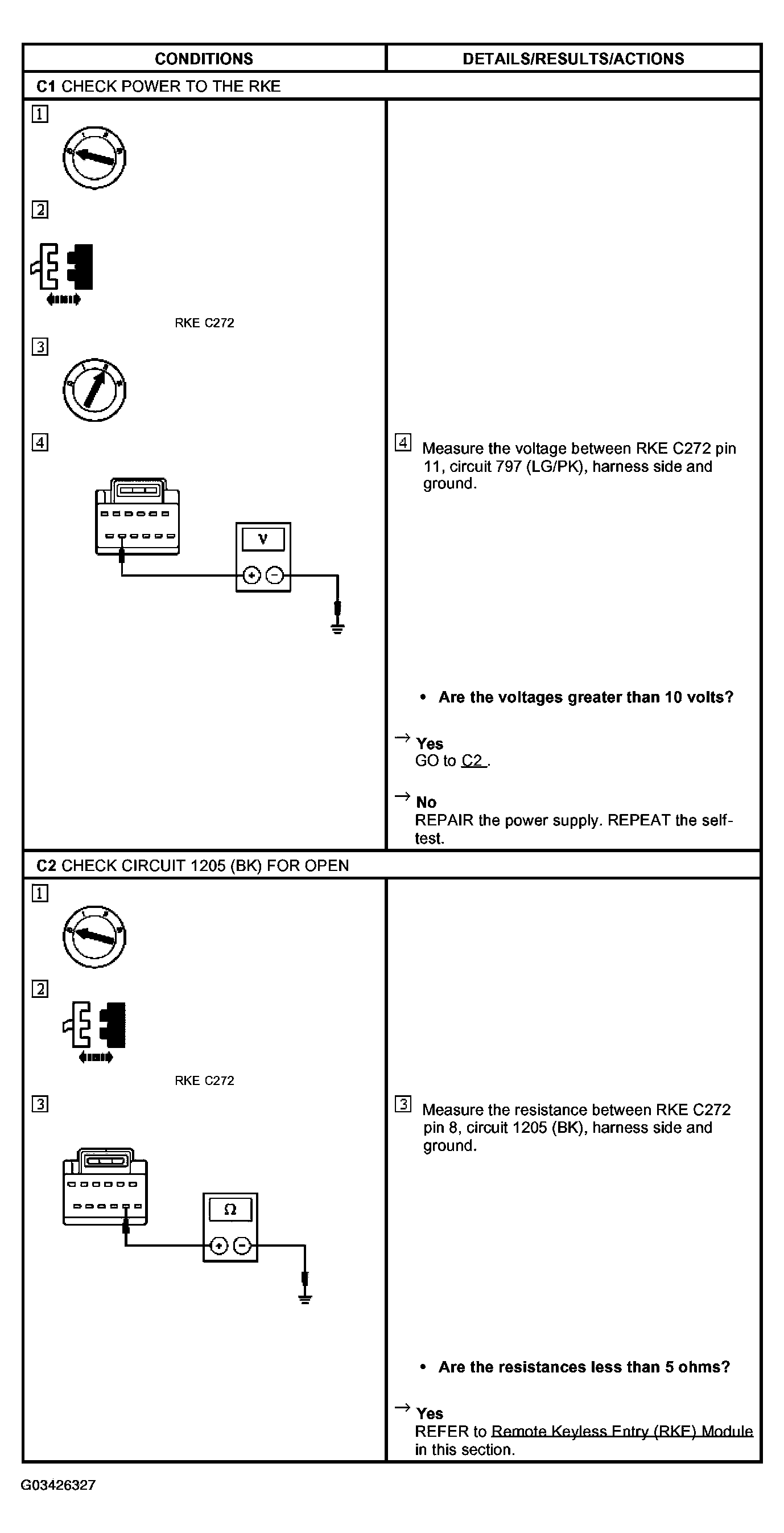

Fig 1: Pinpoint Test C: No Communication With Remote Keyless Entry (RKE) Module (C1 & C2)

G03426327

Courtesy of FORD MOTOR CO.
