Pinpoint Test B: No Communication With The Rear Electronic Module (Rem)

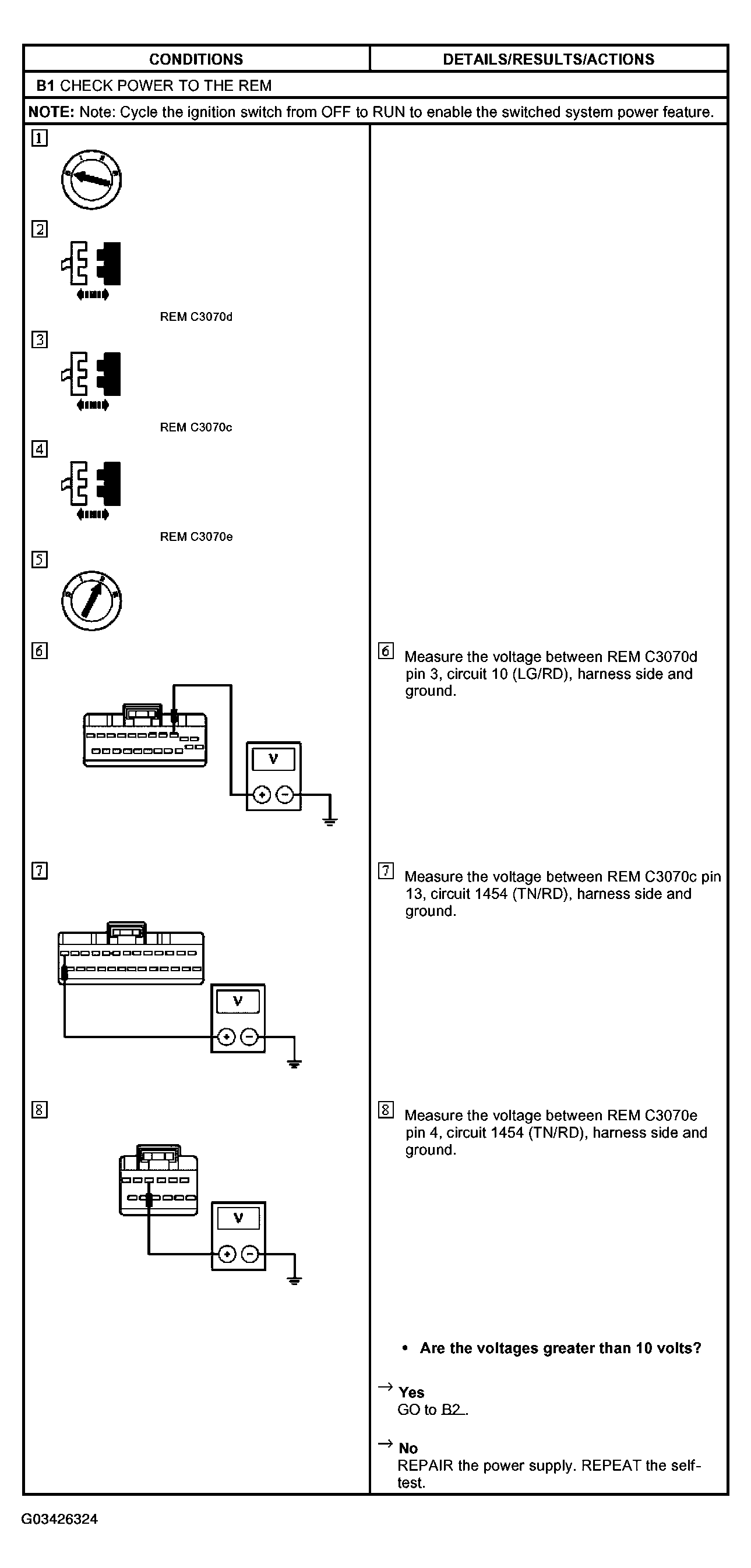

Fig 1: Pinpoint Test B: No Communication With Rear Electronic Module (B1)
G03426324Courtesy of FORD MOTOR CO.

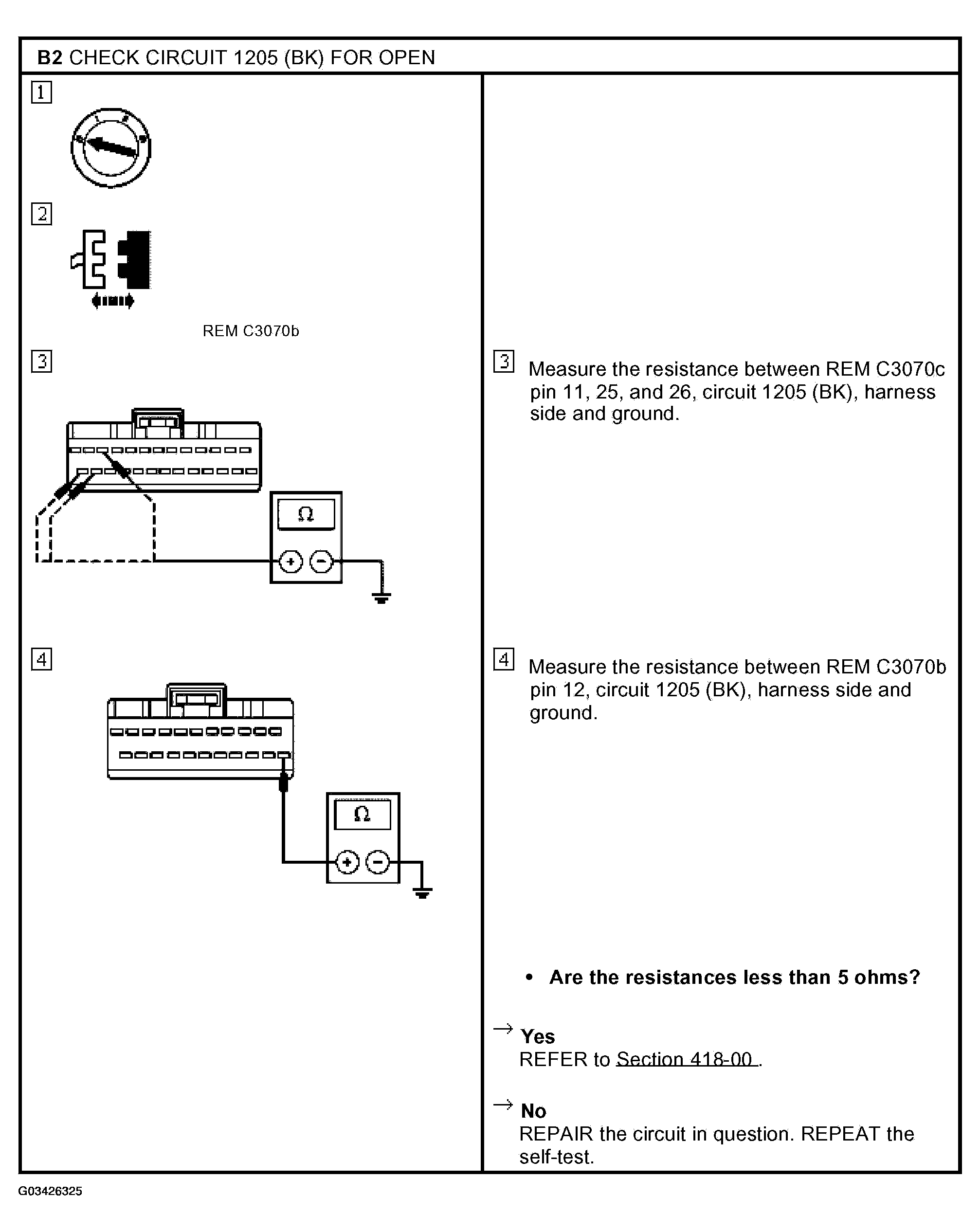

Fig 2: Pinpoint Test B: No Communication With Rear Electronic Module (B2)
G03426325Courtesy of FORD MOTOR CO.
