Pinpoint Test A: No Communication With The Front Electronic Control Module (Fem)

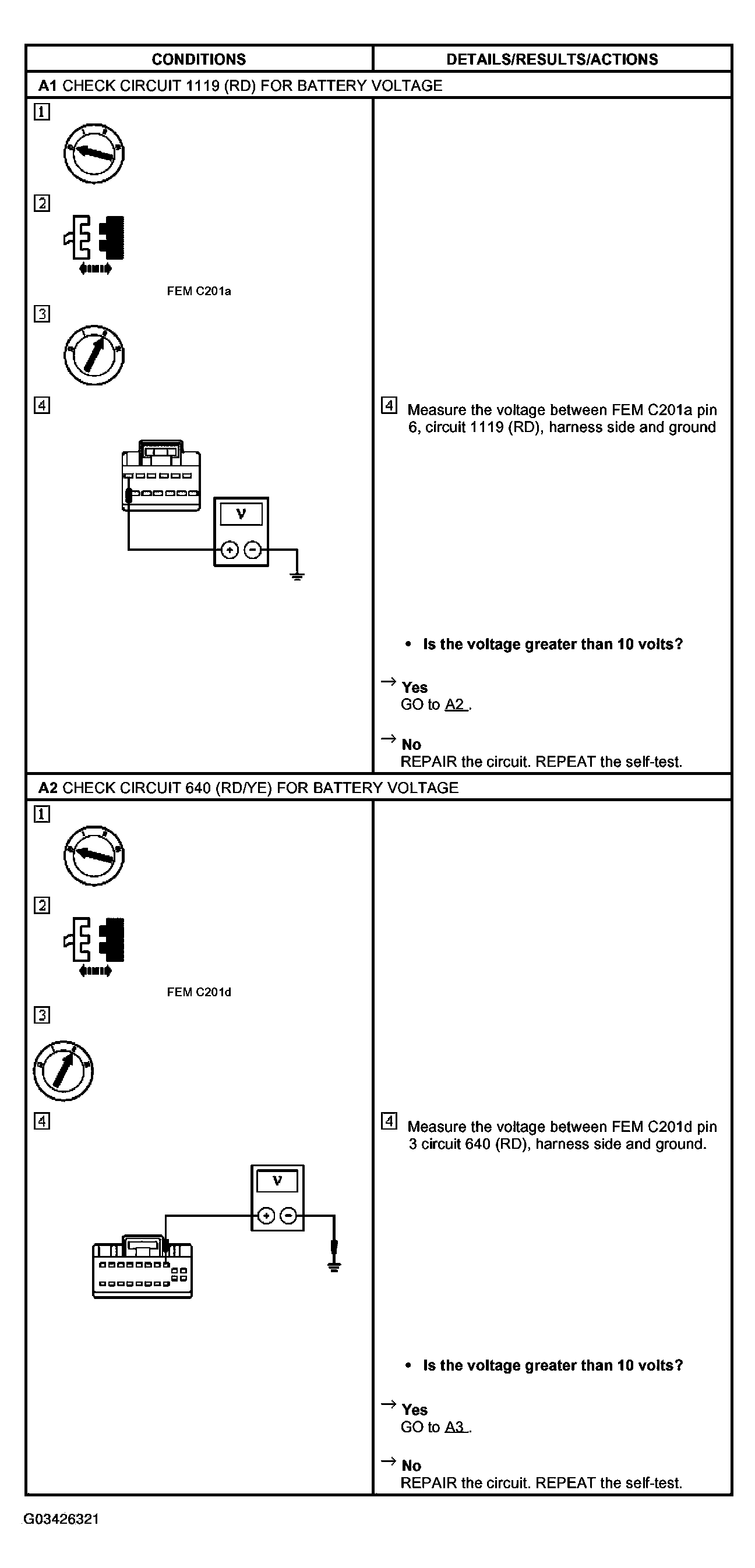

Fig 1: Pinpoint Test A: No Communication With Front Electronic Control Module (A1 & A2)
G03426321Courtesy of FORD MOTOR CO.

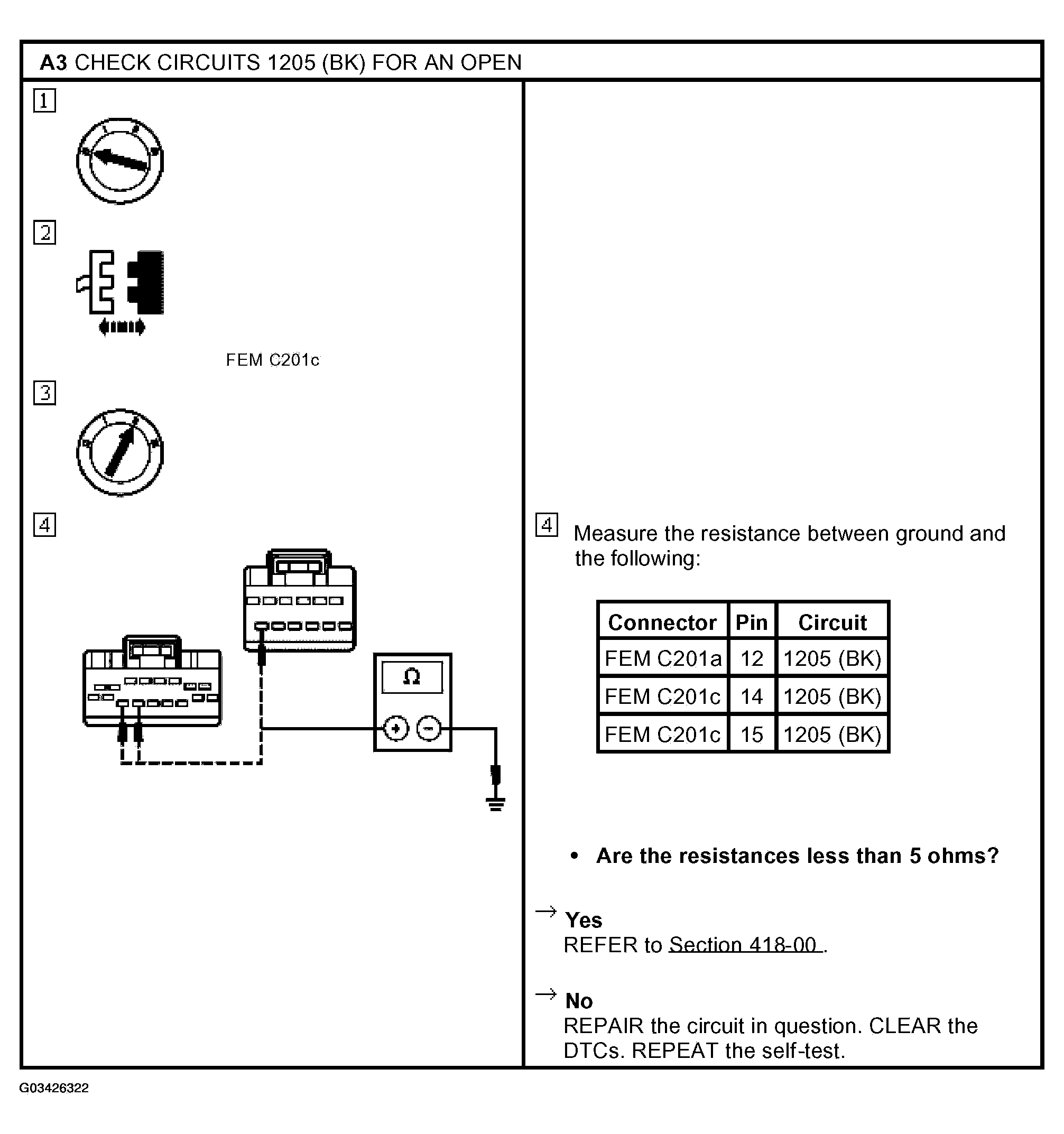

Fig 2: Pinpoint Test A: No Communication With Front Electronic Control Module (A3)
G03426322Courtesy of FORD MOTOR CO.
