Solenoid Body Assembly: Removal

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING & CABLES .
Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
Drain the transmission fluid.

Fig 1: Identifying Transmission Fluid Drain Plug
Courtesy of FORD MOTOR CO.

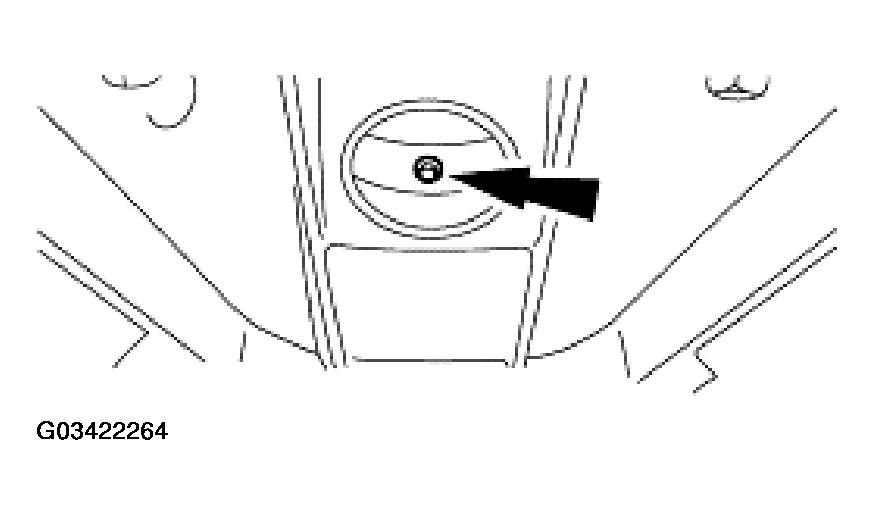

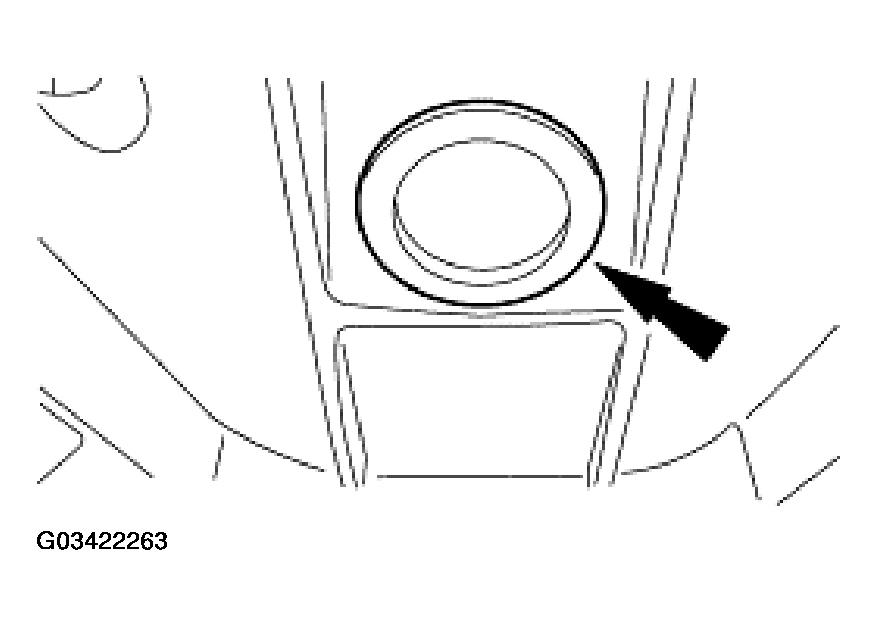

Remove the converter housing plug.

Fig 2: Removing Converter Housing Plug
Courtesy of FORD MOTOR CO.

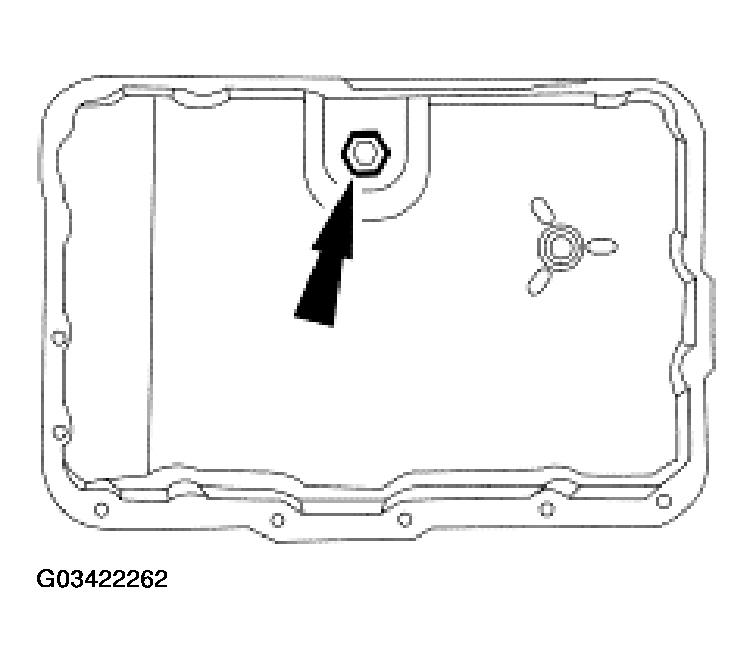

Remove the drain plug.

Fig 3: Removing Drain Plug
Courtesy of FORD MOTOR CO.

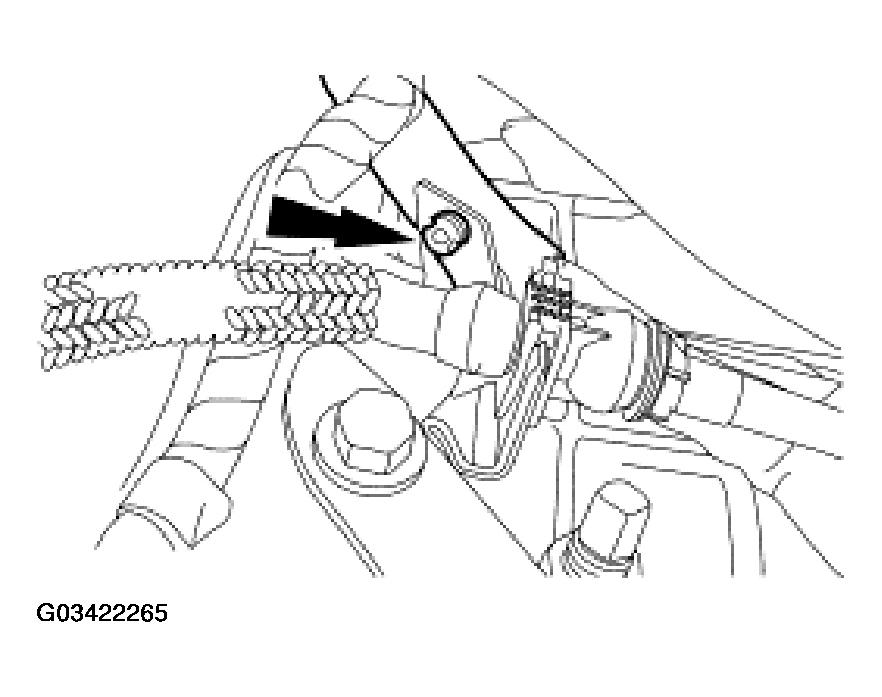

Disconnect the wire harness from the top of the transmission shift cable bracket.

Fig 4: Disconnecting Wire Harness From Top Of Transmission Shift Cable Bracket
Courtesy of FORD MOTOR CO.

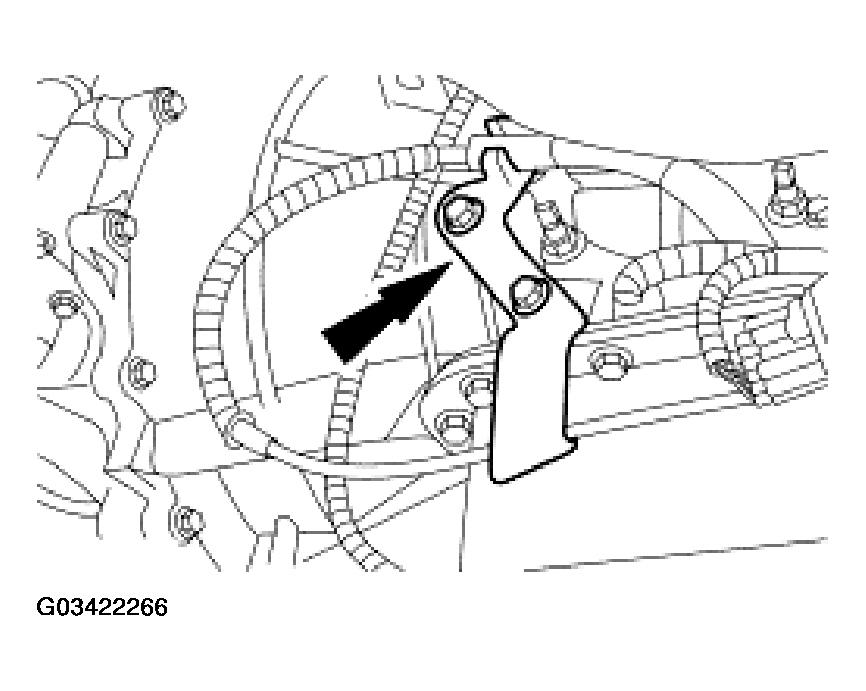

Remove the transmission shift cable bracket and position out of the way.

Fig 5: Removing Transmission Shift Cable Bracket
Courtesy of FORD MOTOR CO.

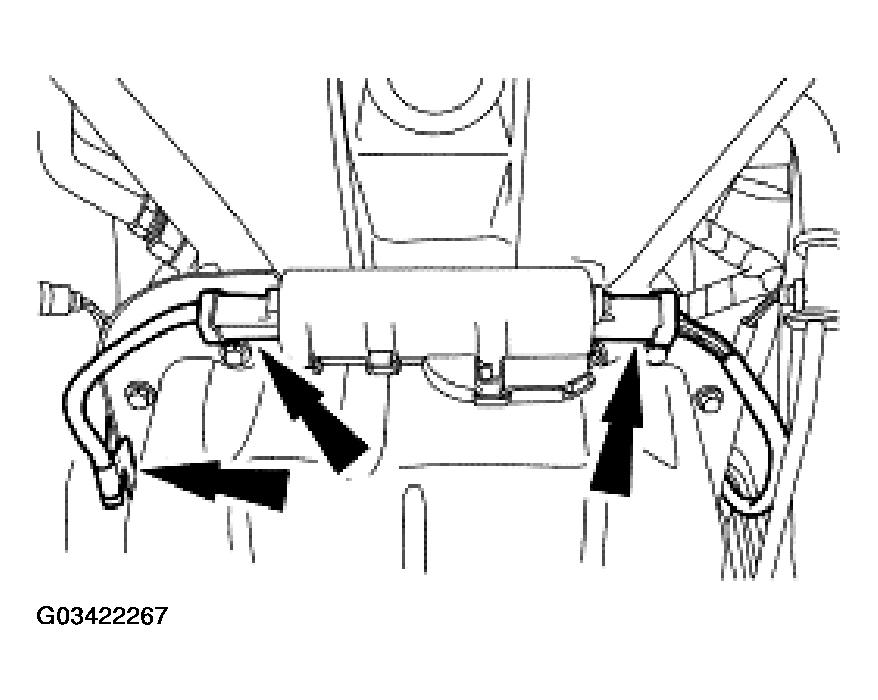

Disconnect the HO2S sensor connectors and remove the sensor wire retaining clip from the right side of the transmission pan rail.

Fig 6: Disconnecting HO2S Sensor Connectors
Courtesy of FORD MOTOR CO.
Remove the HO2S sensor connector from the front of the transmission pan rail.

Fig 7: Removing HO2S Sensor Connector From Front Of Transmission Pan Rail
Courtesy of FORD MOTOR CO.

NOTE: Clean the area around connector to prevent contamination of the solenoid body connector.

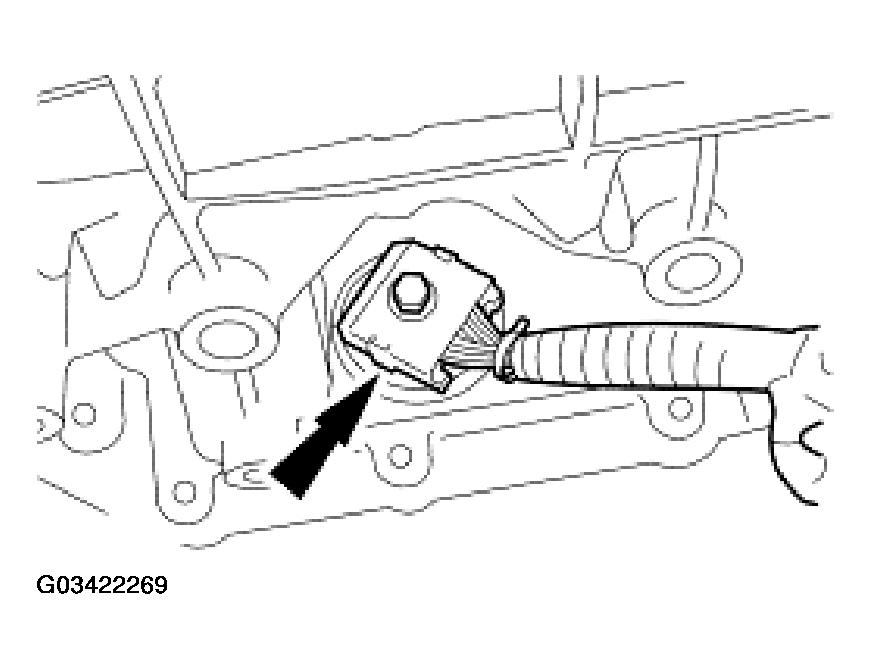

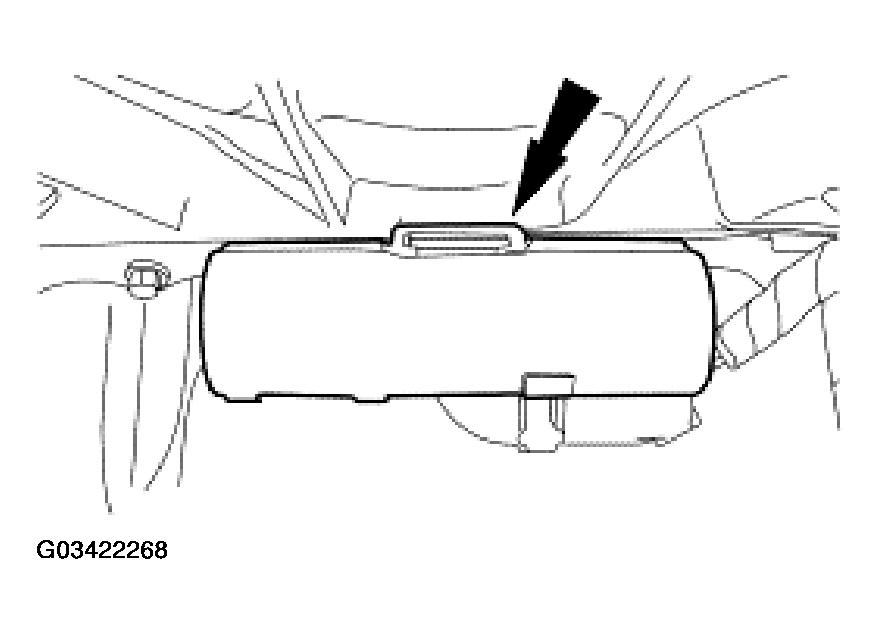

Fig 8: Disconnecting Transmission Connector

Courtesy of FORD MOTOR CO.

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect for damage. If not damaged, the gasket should be reused.

Fig 9: Removing Transmission Fluid Pan And Gasket

Courtesy of FORD MOTOR CO.

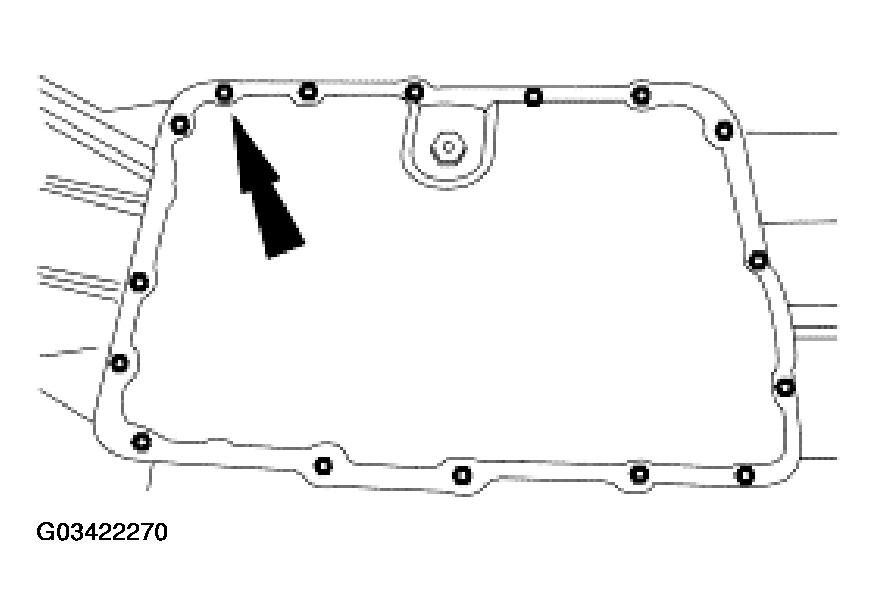

Remove the transmission fluid pan and gasket.

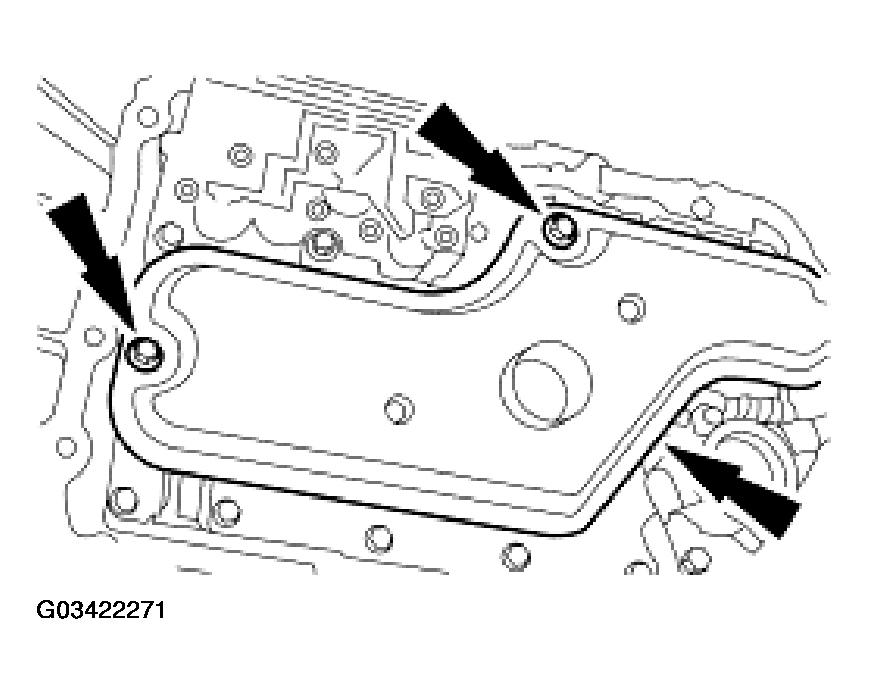

Remove the transmission fluid filter.

Fig 10: Removing Transmission Fluid Filter
Courtesy of FORD MOTOR CO.

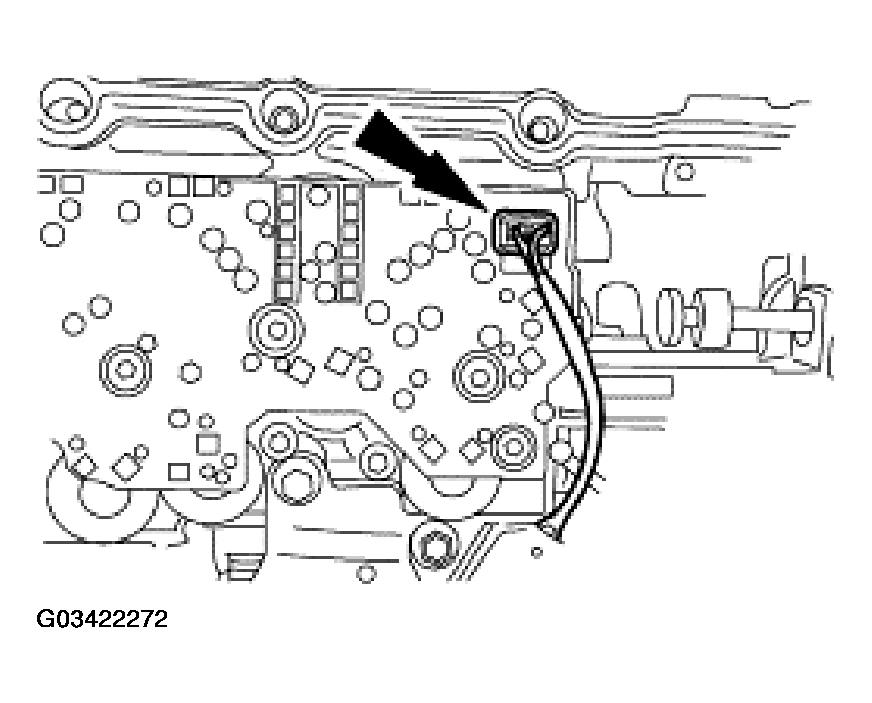

Disconnect the reverse pressure switch connector.

Fig 11: Disconnecting Reverse Pressure Switch Connector
Courtesy of FORD MOTOR CO.

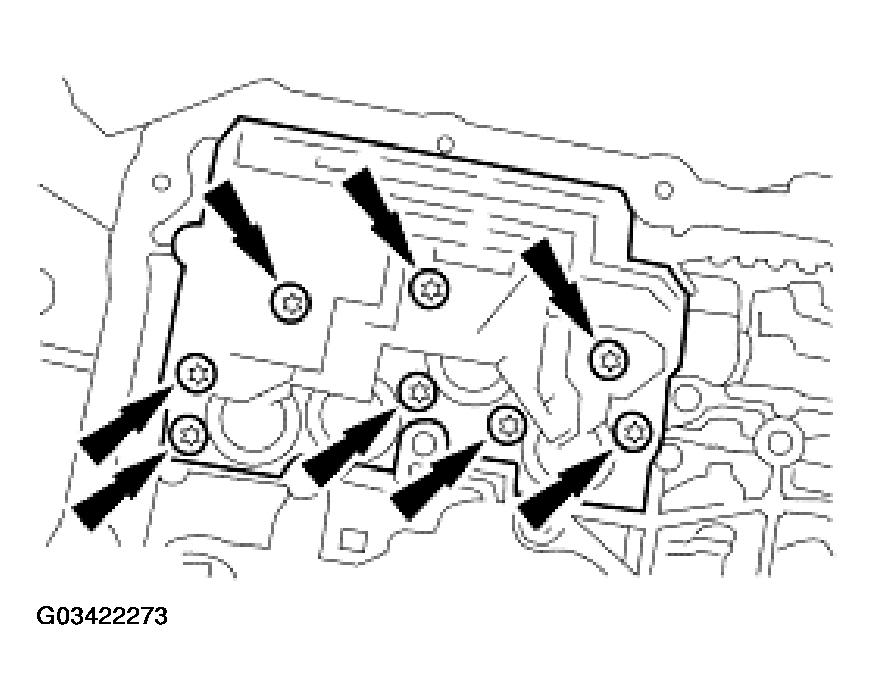

Remove the solenoid body.

Fig 12: Removing Solenoid Body
Courtesy of FORD MOTOR CO.
