Special Tool(s)

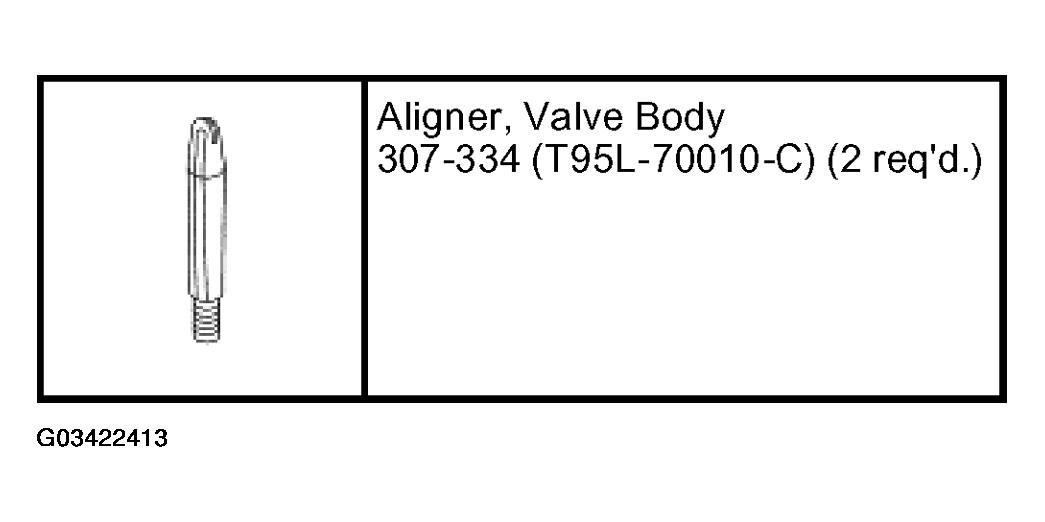

Fig 1: Identifying Special Tool
G03422413Courtesy of FORD MOTOR CO.

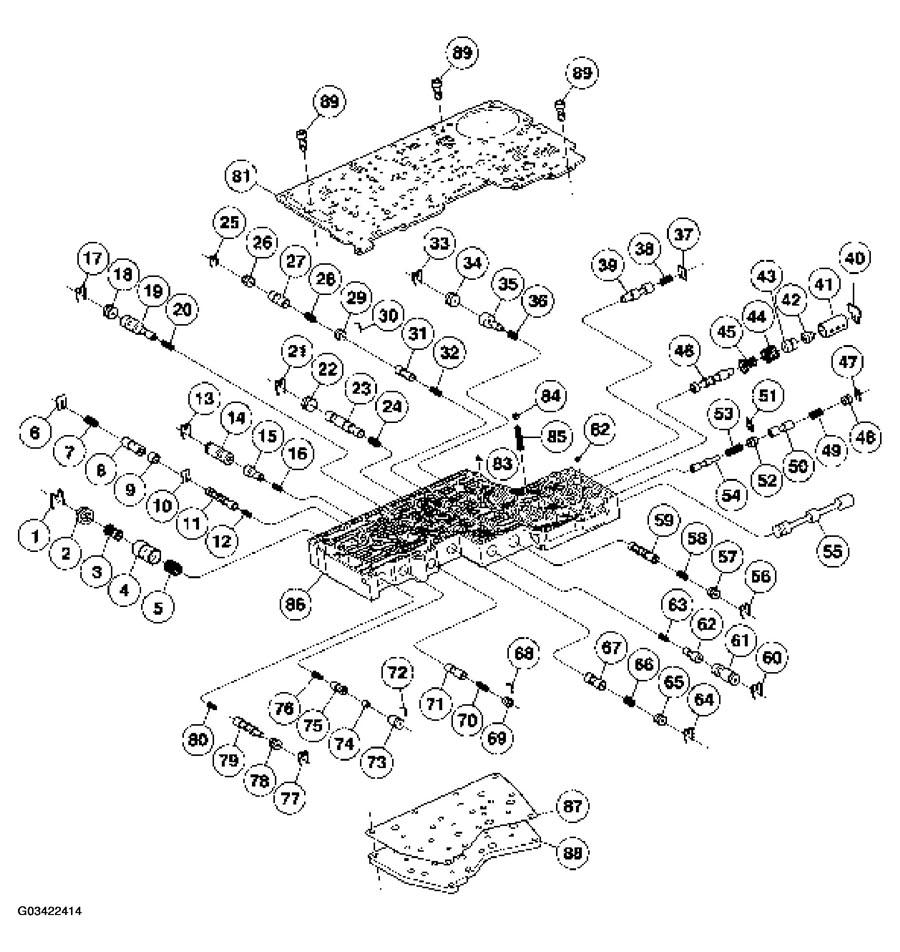

Fig 2: Exploded View Of Main Control Valve Body
G03422414Courtesy of FORD MOTOR CO.

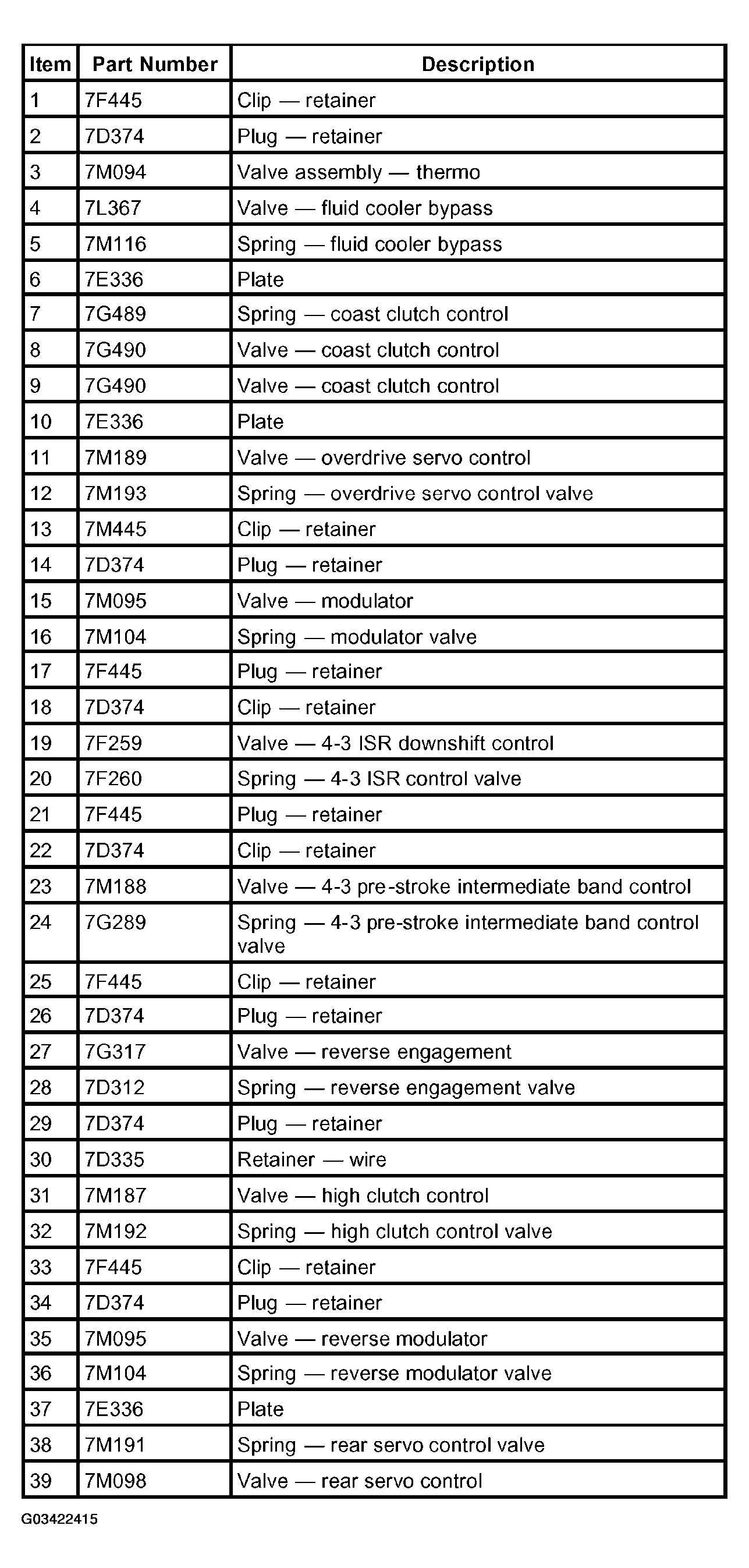

Fig 3: Main Control Valve Body Description Table (1 Of 2)
G03422415Courtesy of FORD MOTOR CO.

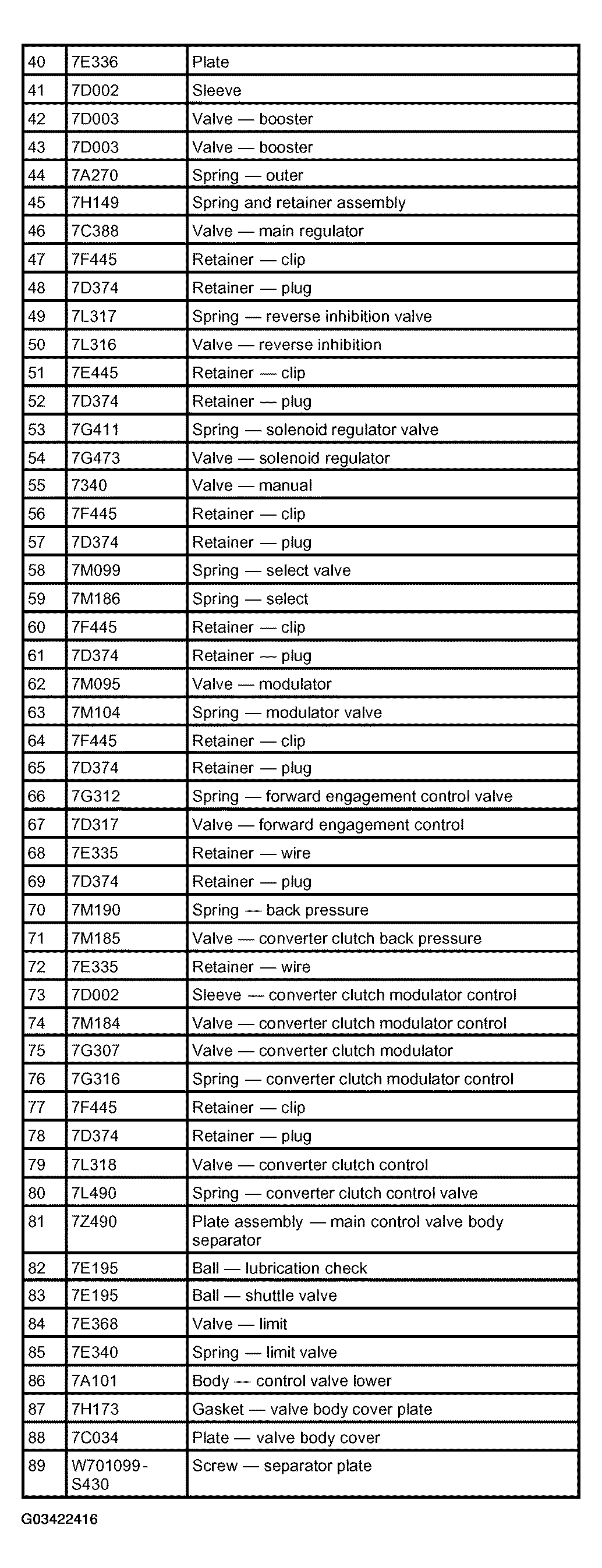

Fig 4: Main Control Valve Body Description Table (2 Of 2)
G03422416Courtesy of FORD MOTOR CO.
