Valve -Seat Width

  1. Measure the valve seat width. Install a new cylinder head if measurements are not within specification.

    Refer to CYLINDER HEAD for the procedure.

    • Measure the intake valve seat width.
    • Measure the exhaust valve seat width.
    • Refer to GENERAL SPECIFICATIONS . .

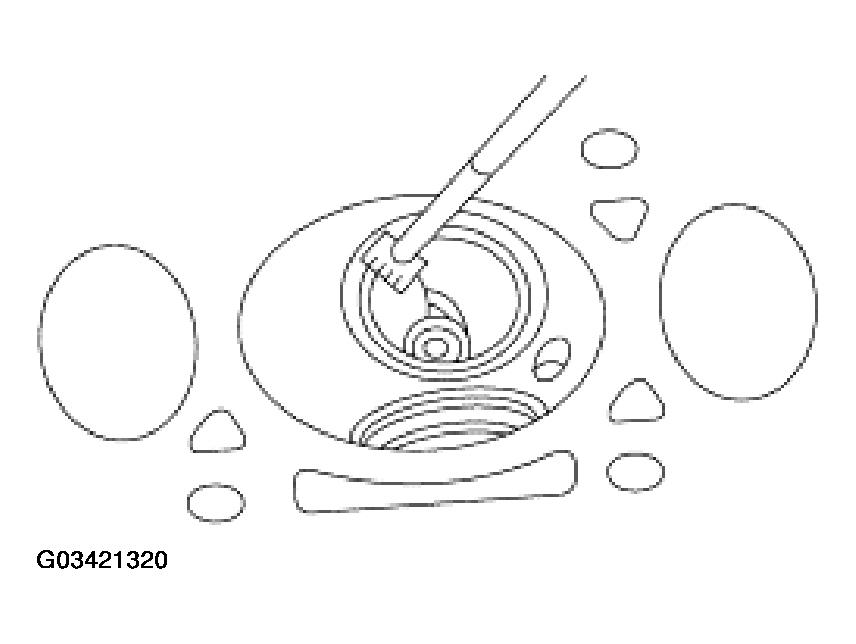

      Fig 1: Measuring Valve Seat Width
      G03421320Courtesy of FORD MOTOR CO.
