Pinpoint Test H: The Traction Control Cannot Be Disabled

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

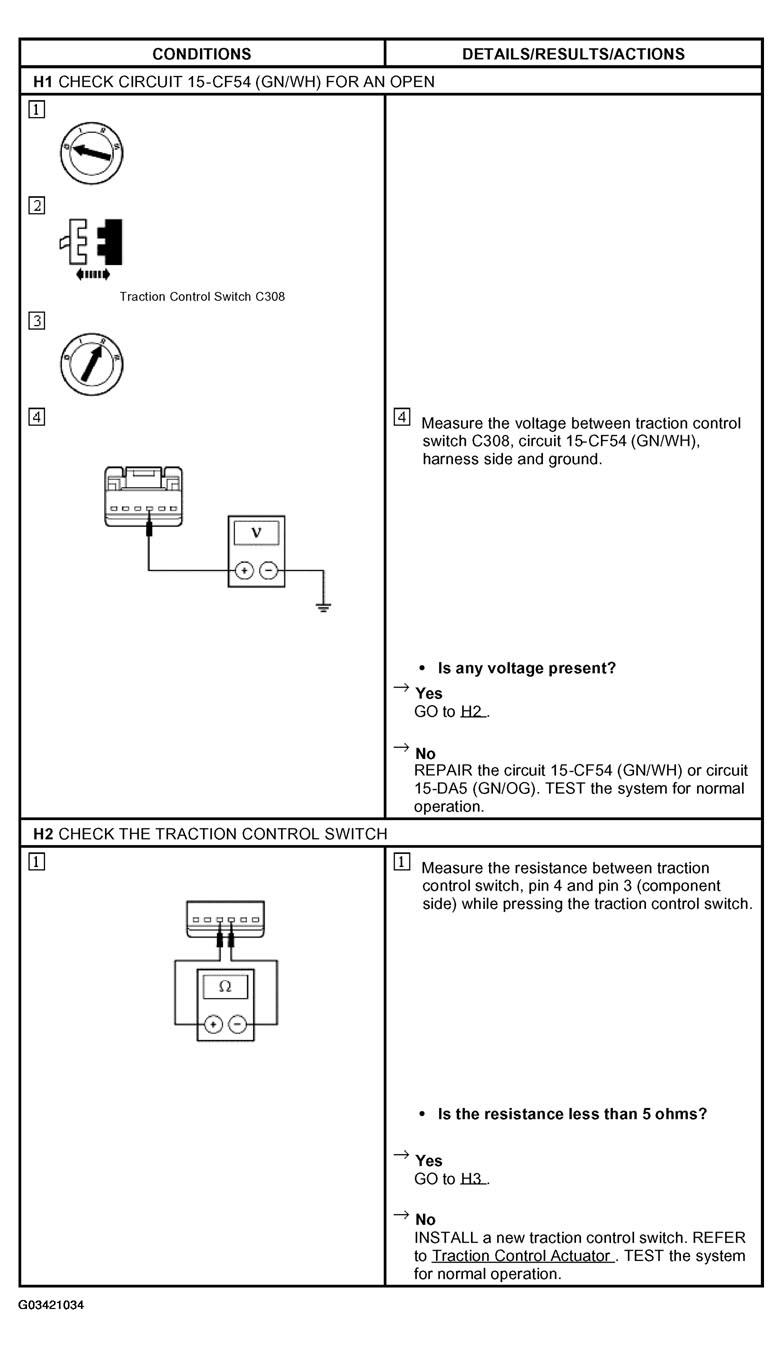

Fig 1: Pinpoint Test H: Traction Control Cannot Be Disabled (H1-H2)
G03421034Courtesy of FORD MOTOR CO.

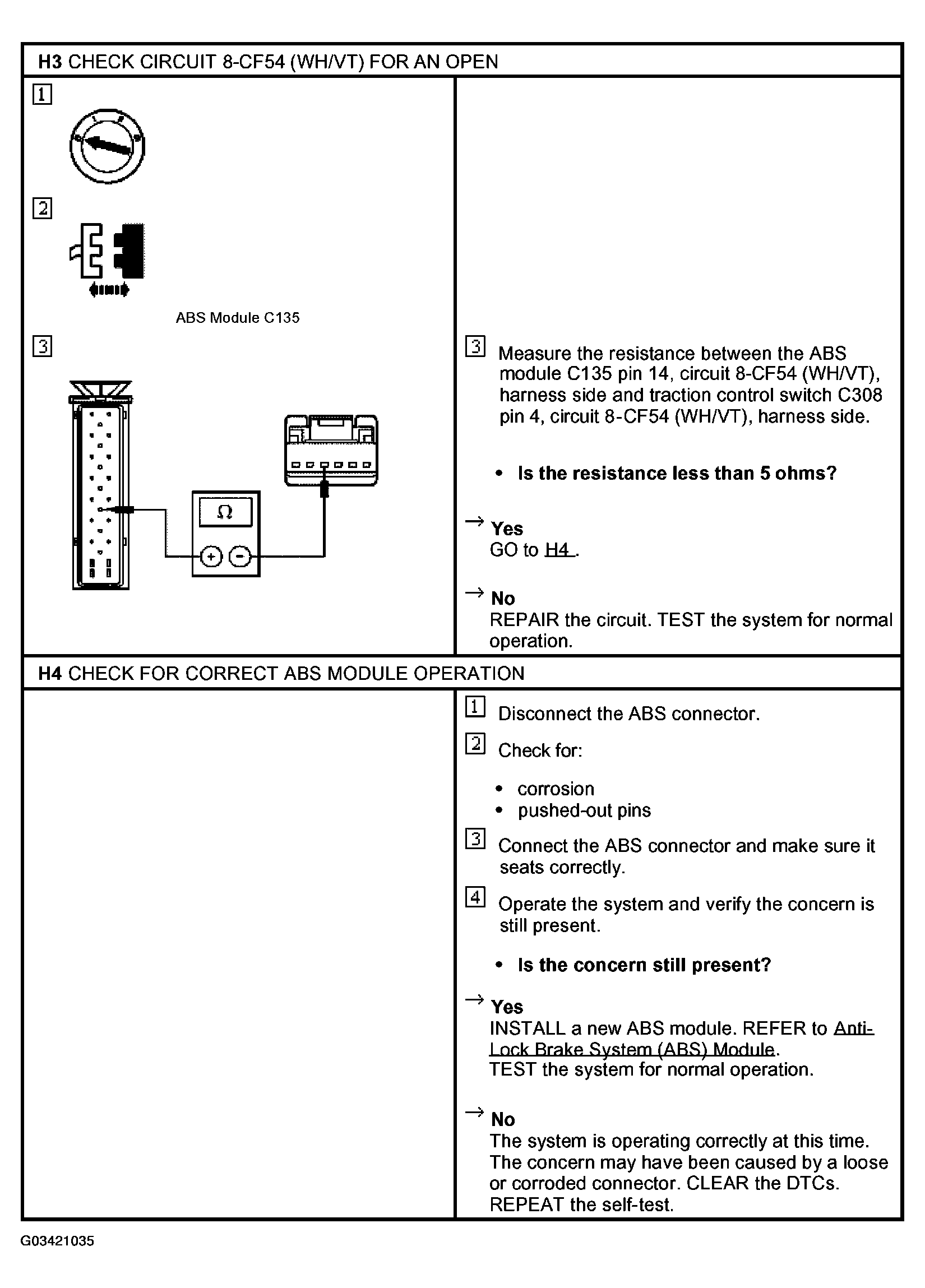

Fig 2: Pinpoint Test H: Traction Control Cannot Be Disabled (H3-H4)
G03421035Courtesy of FORD MOTOR CO.
