System Bleeding

With the convertible top closed and unlatched, detach the well sling interior trim cover.

Fig 1: Detaching Well Sling Interior Trim Cover
Courtesy of FORD MOTOR CO.

CAUTION: Do not attempt to disconnect the rear window defrost grid connector from the rear window glass.

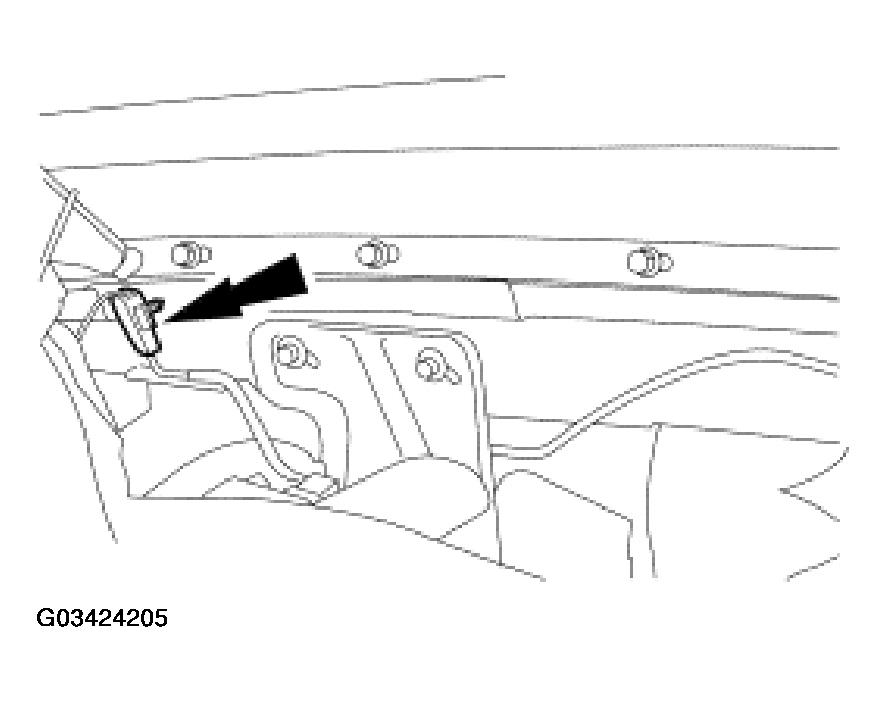

Fig 2: Disconnecting Rear Window Defrost Grid Electrical Connector Locator

Courtesy of FORD MOTOR CO.

Disconnect the rear window defrost grid electrical connector locator from the body.
Disconnect the rear window defrost grid electrical connector and route the wire out through the hole in the well sling interior trim cover.
Remove the ground bolt for the rear window defrost grid.

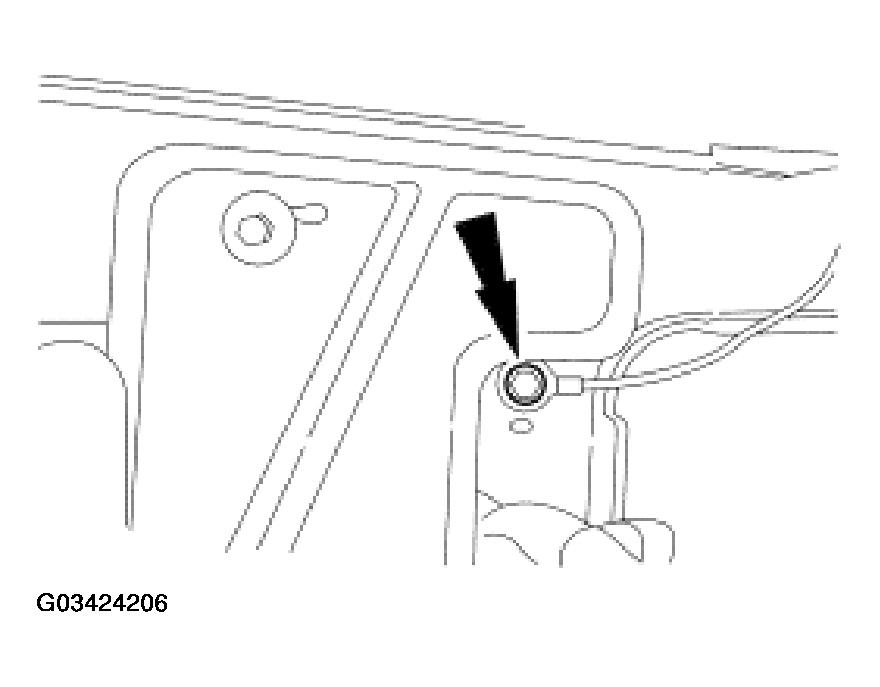

Fig 3: Removing Rear Window Defrost Grid Ground Bolt
Courtesy of FORD MOTOR CO.
Route the rear window defrost grid ground wire out through the hole in the well sling interior trim cover.
Position the well sling interior trim cover aside.
Position aside the motor noise reduction shroud.

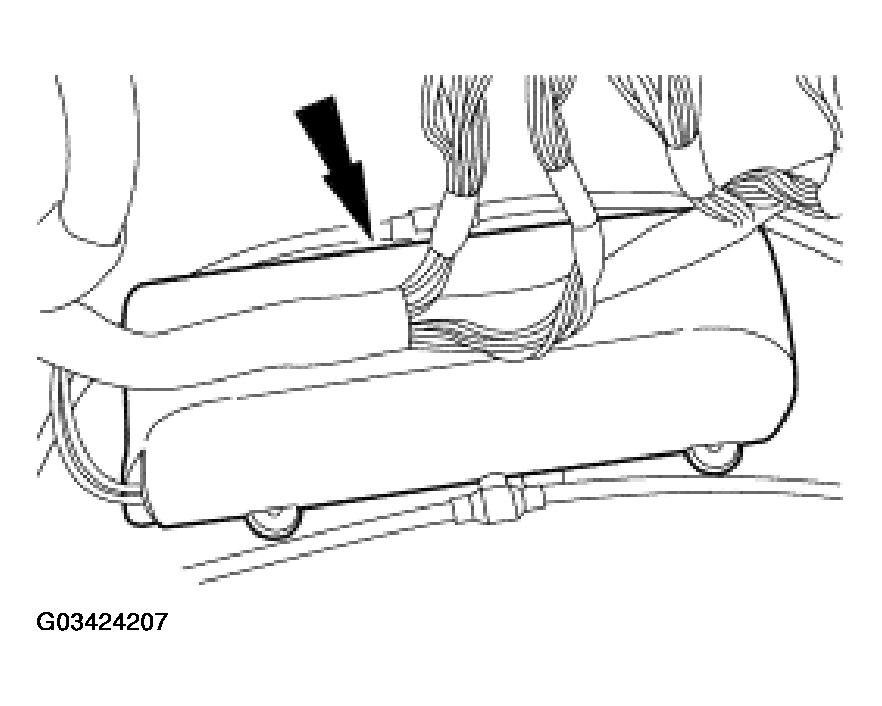

Fig 4: Positioning Aside Motor Noise Reduction Shroud
Courtesy of FORD MOTOR CO.
Remove the fill plug at the end of the motor assembly.

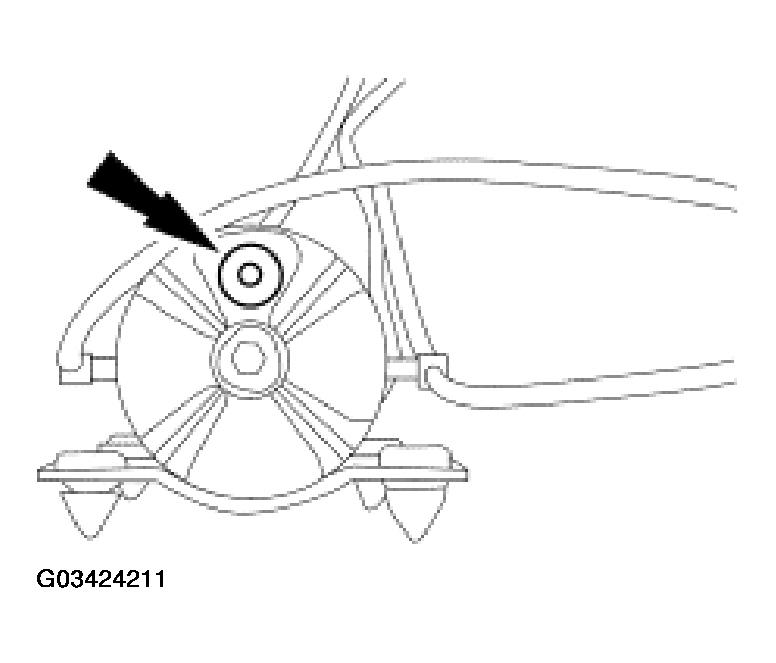

Fig 5: Removing Fill Plug
Courtesy of FORD MOTOR CO.
Fill the motor assembly with Mercon(R) Multi-Purpose Automatic Transmission Fluid XT-2-QDX or equivalent to the bottom of the fill hole and install the fill plug.

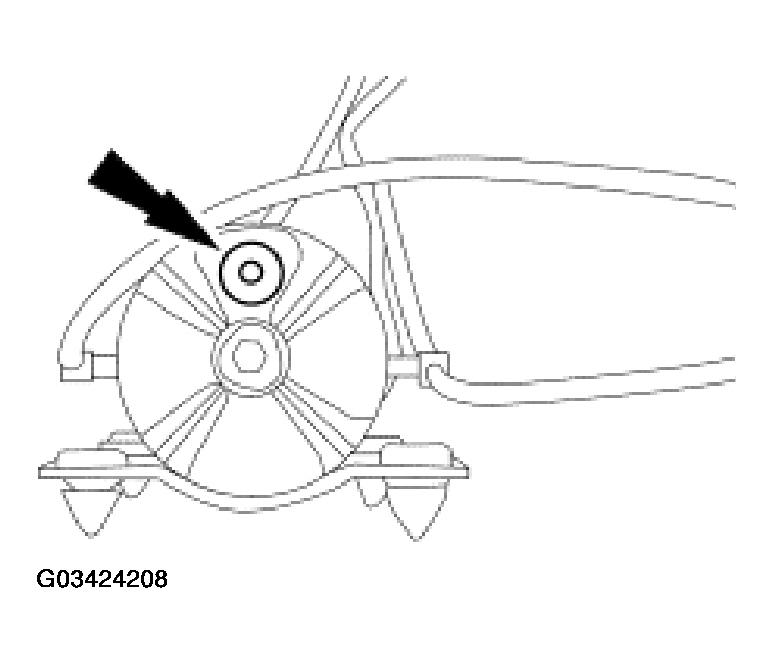

Fig 6: Identifying Fill Plug
Courtesy of FORD MOTOR CO.

NOTE: Some noise squeal may be noticed due to the air in the system.

Operate the convertible top switch until the lift cylinders are fully extended and then fully retracted.
Repeat this procedure three times.
Remove the fill plug and check the fluid level. Fill the motor assembly with Mercon(R) Multi-Purpose Automatic Transmission Fluid XT-2-QDX or equivalent to the bottom of the fill hole.

Fig 7: Removing Fill Plug
Courtesy of FORD MOTOR CO.
Install the fill plug.

Fig 8: Installing Fill Plug
Courtesy of FORD MOTOR CO.
Position the motor noise reduction shroud.

Fig 9: Positioning Motor Noise Reduction Shroud
Courtesy of FORD MOTOR CO.
Route the rear window defrost grid ground wire through the hole in the well sling interior trim cover.
Install the rear window defrost grid ground bolt.

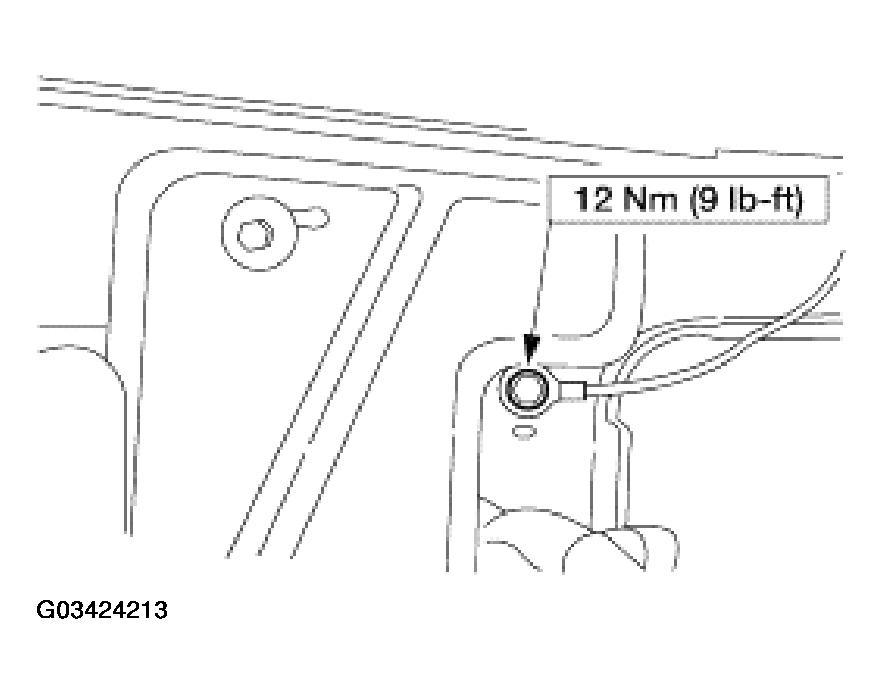

Fig 10: Installing Rear Window Defrost Grid Ground Bolt
Courtesy of FORD MOTOR CO.
Route the rear window defrost grid wire through the hole in the well sling interior trim cover.
Connect the rear window defrost grid electrical connector and attach the locator to the body.

Fig 11: Connecting Rear Window Defrost Grid Electrical Connector
Courtesy of FORD MOTOR CO.
Install the well sling interior trim cover.

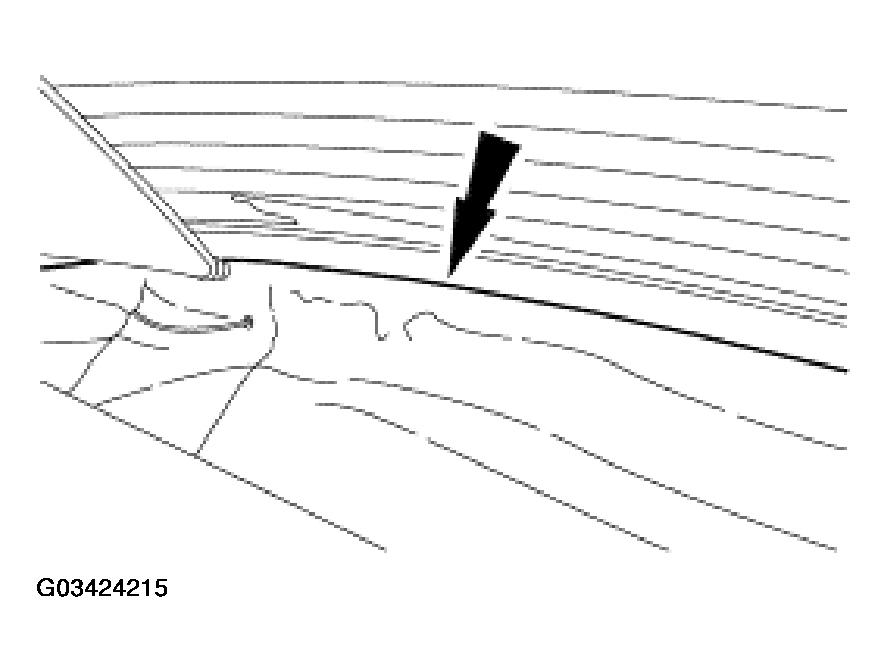

Fig 12: Installing Well Sling Interior Trim Cover
Courtesy of FORD MOTOR CO.
