Seat Control Switch: Removal
WARNING:
Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING:
After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
WARNING:
Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
NOTE:
Driver seat is shown, passenger seat is similar.
- Remove the seat and Deactivate the SRS. For additional information, refer to FRONT SEAT .

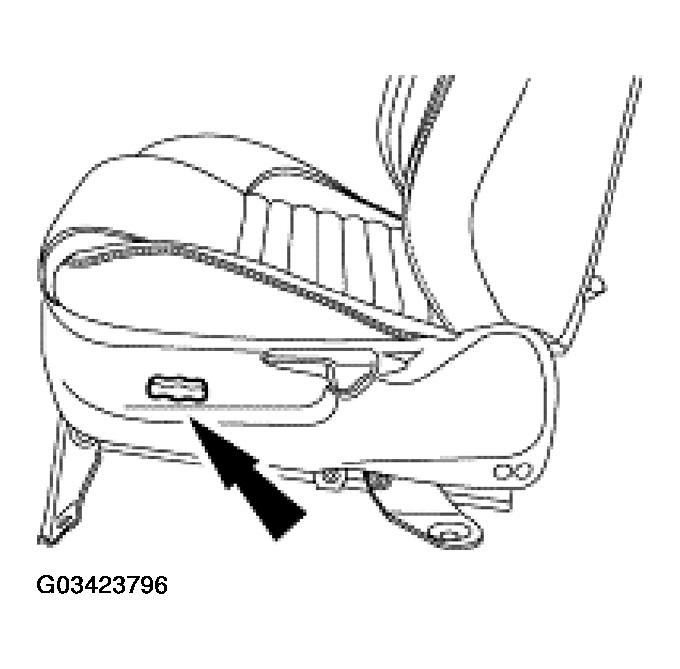

- Remove the seat control switch cover.
- Remove the seat cushion side shield. For additional information, refer to FRONT SEAT CUSHION - SIDE SHIELD .

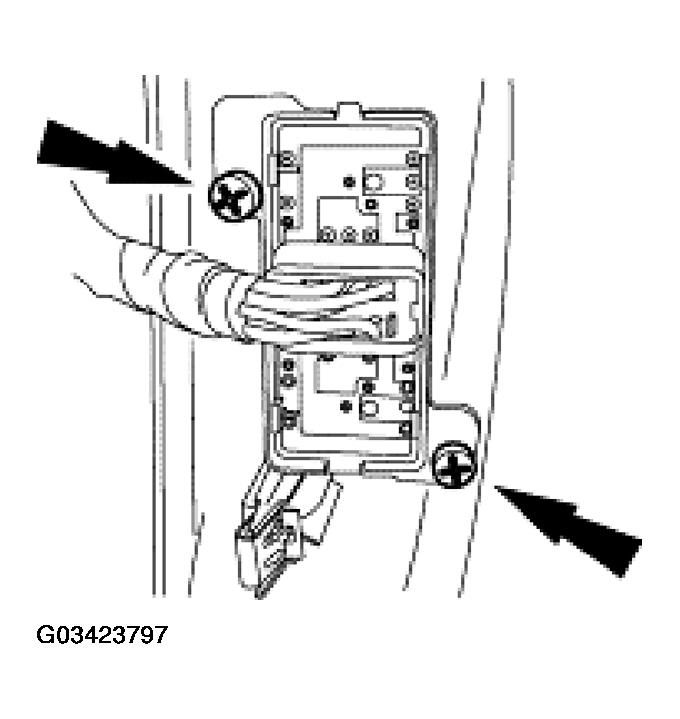

- Remove the two screws and the seat control switch.
