Lumbar Assembly: Installation

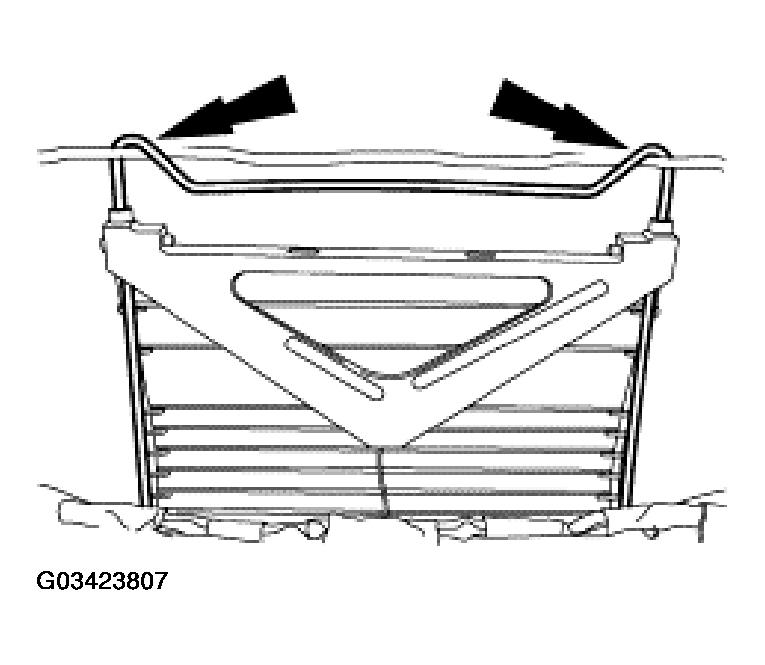

Attach the top of the lumbar basket on the backrest frame.

Fig 1: Attaching Top Of Lumbar Basket To Backrest Frame
Courtesy of FORD MOTOR CO.

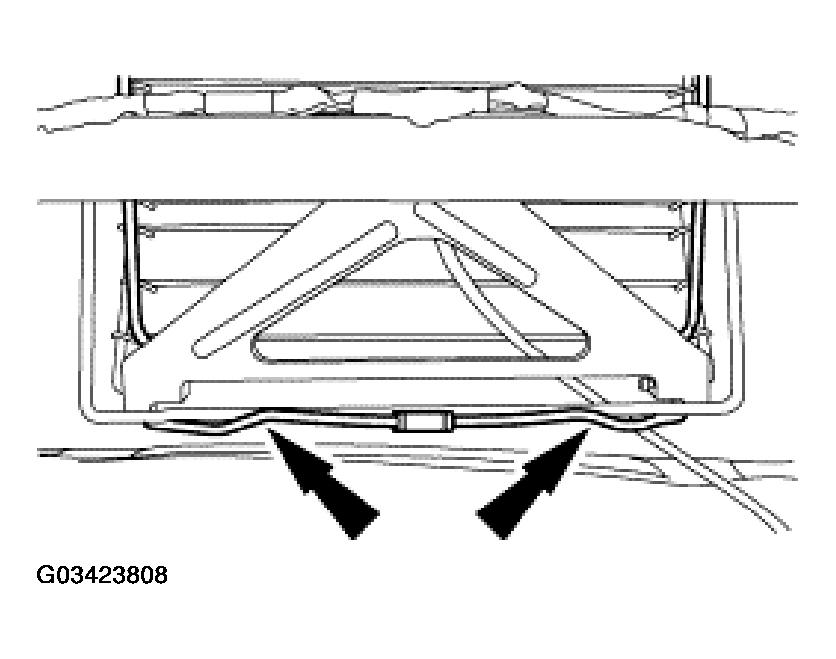

Hook the bottom of the lumbar basket on the backrest frame.

Fig 2: Hooking Bottom Of Lumbar Basket On Backrest Frame
Courtesy of FORD MOTOR CO.

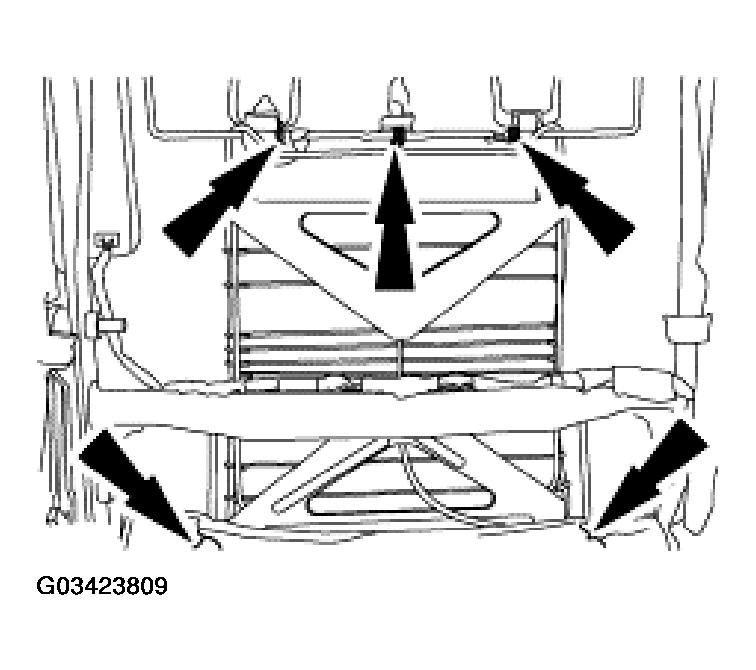

NOTE: New hog rings must be installed.

Fig 3: Installing New Hog Rings

Courtesy of FORD MOTOR CO.

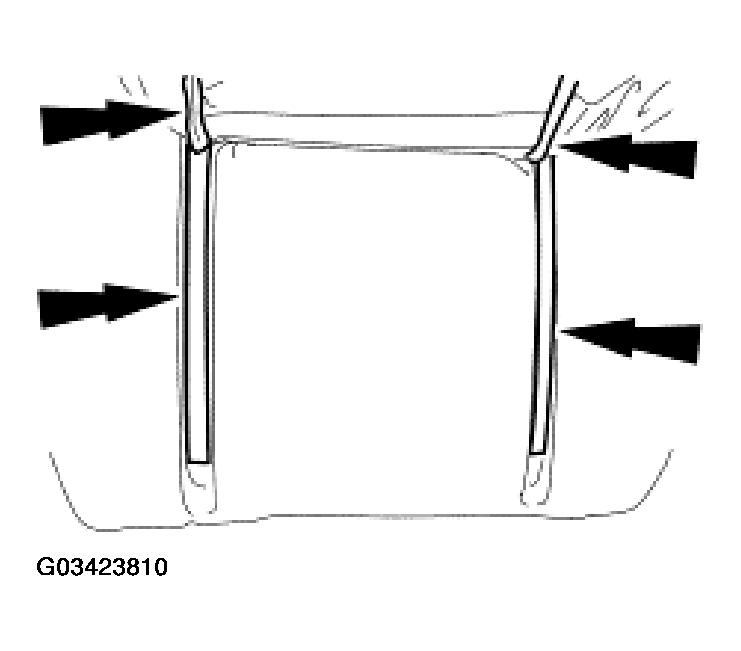

CAUTION: Use care when attaching the backrest upholstery to the hook and loop fasteners to avoid tearing the fastener off the seat foam.

Fig 4: Installing Backrest Upholstery

Courtesy of FORD MOTOR CO.

Install the backrest upholstery and smooth out any wrinkles.

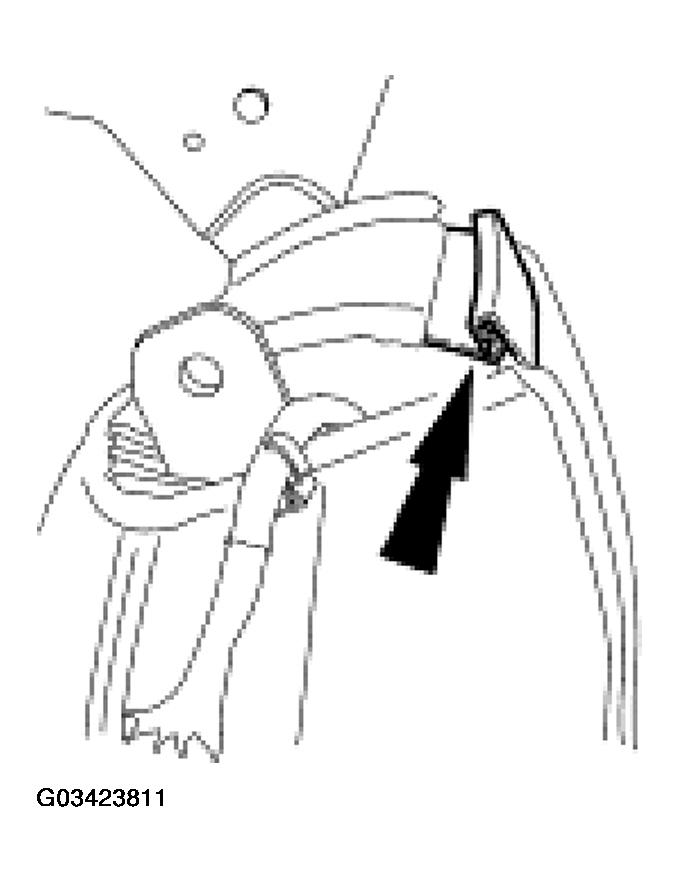

Attach the backrest upholstery J-clip.

Fig 5: Attaching Backrest Upholstery J-Clip
Courtesy of FORD MOTOR CO.

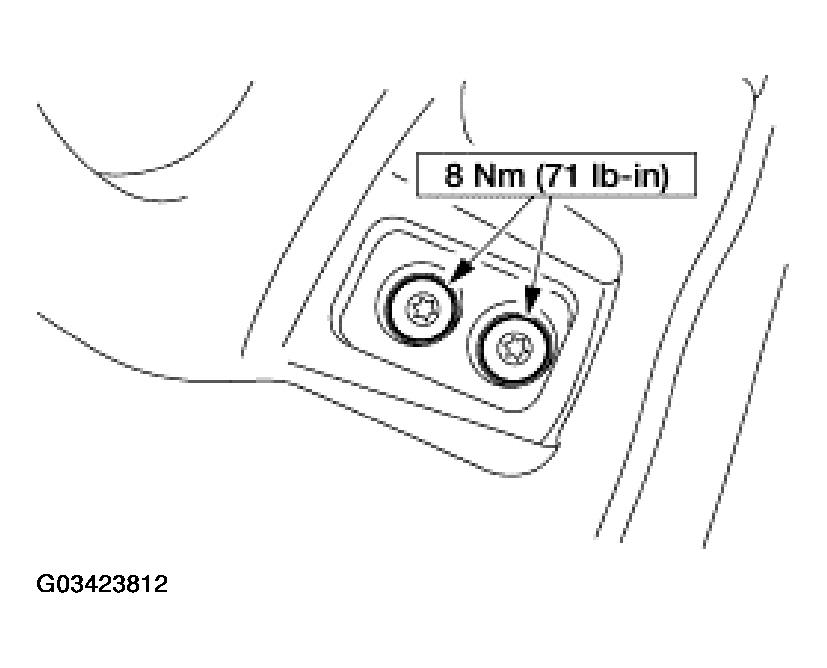

Install the safety belt guide.

Fig 6: Installing Safety Belt Guide
Courtesy of FORD MOTOR CO.

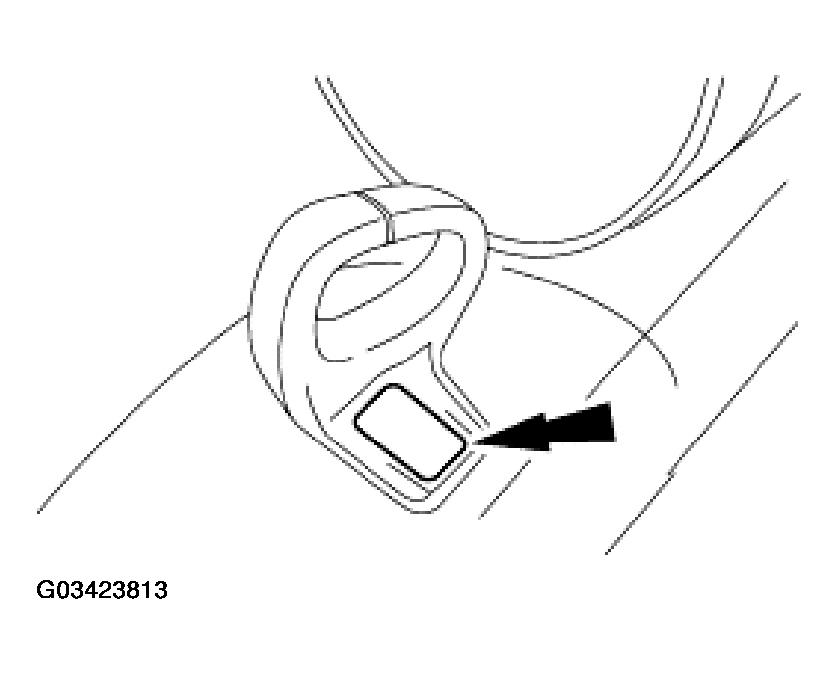

Install the screw cover.

Fig 7: Installing Safety Belt Guide Screw Cover
Courtesy of FORD MOTOR CO.
Install the head restraint.
Install the front cushion side shield. For additional information, refer to FRONT SEAT BACKREST .
Install the front seat and reactivate the SRS. For additional information, refer to FRONT SEAT .
