Pinpoint Test D: DTC P1566-Speed Control Command Switches Low/Out Of Range

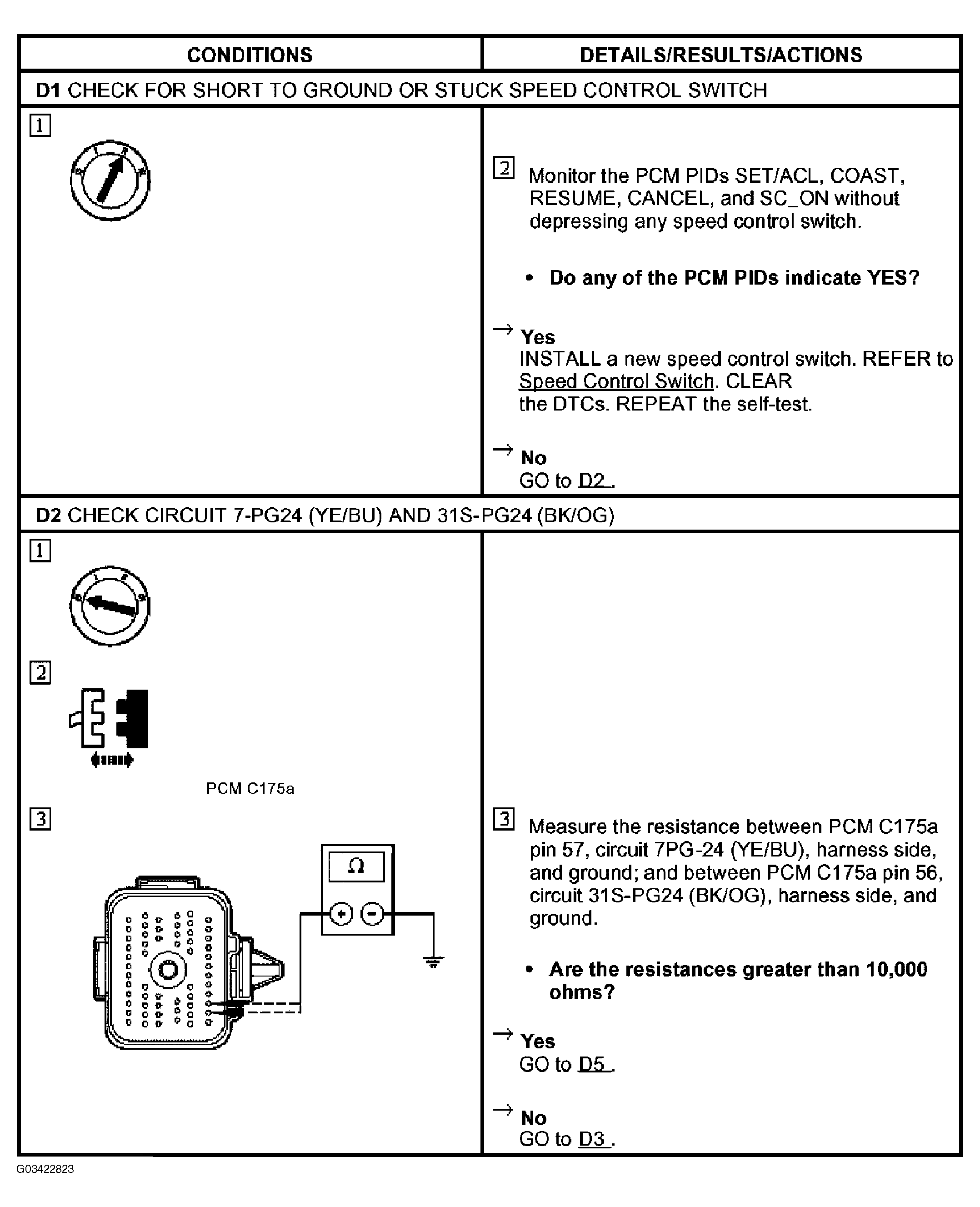

Fig 1: Identifying Pinpoint Test D: DTC P1566-Speed Control Command Switches Low/Out Of Range (D1-D2)

Courtesy of FORD MOTOR CO.

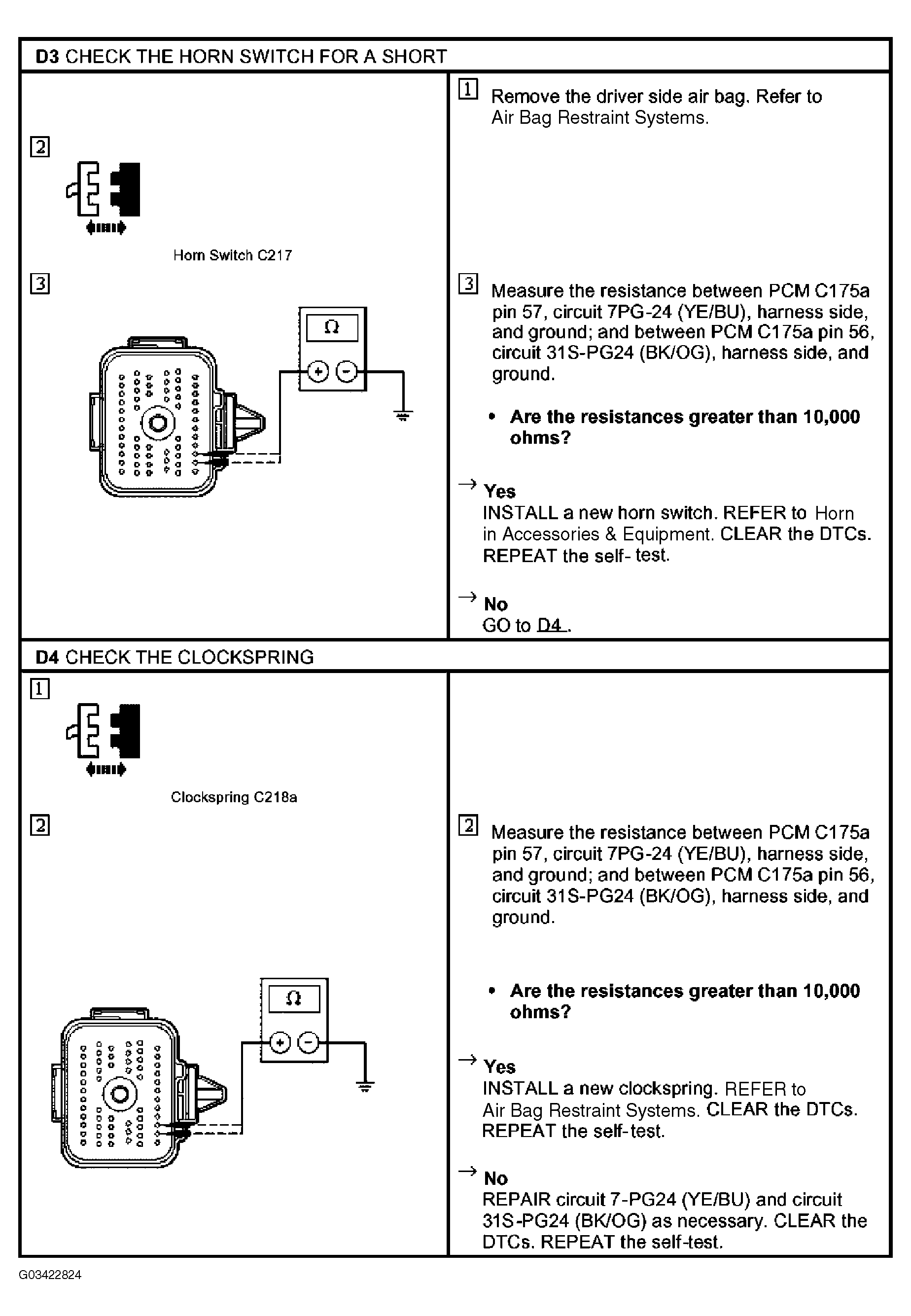

Fig 2: Identifying Pinpoint Test D: DTC P1566-Speed Control Command Switches Low/Out Of Range (D3-D4)

Courtesy of FORD MOTOR CO.

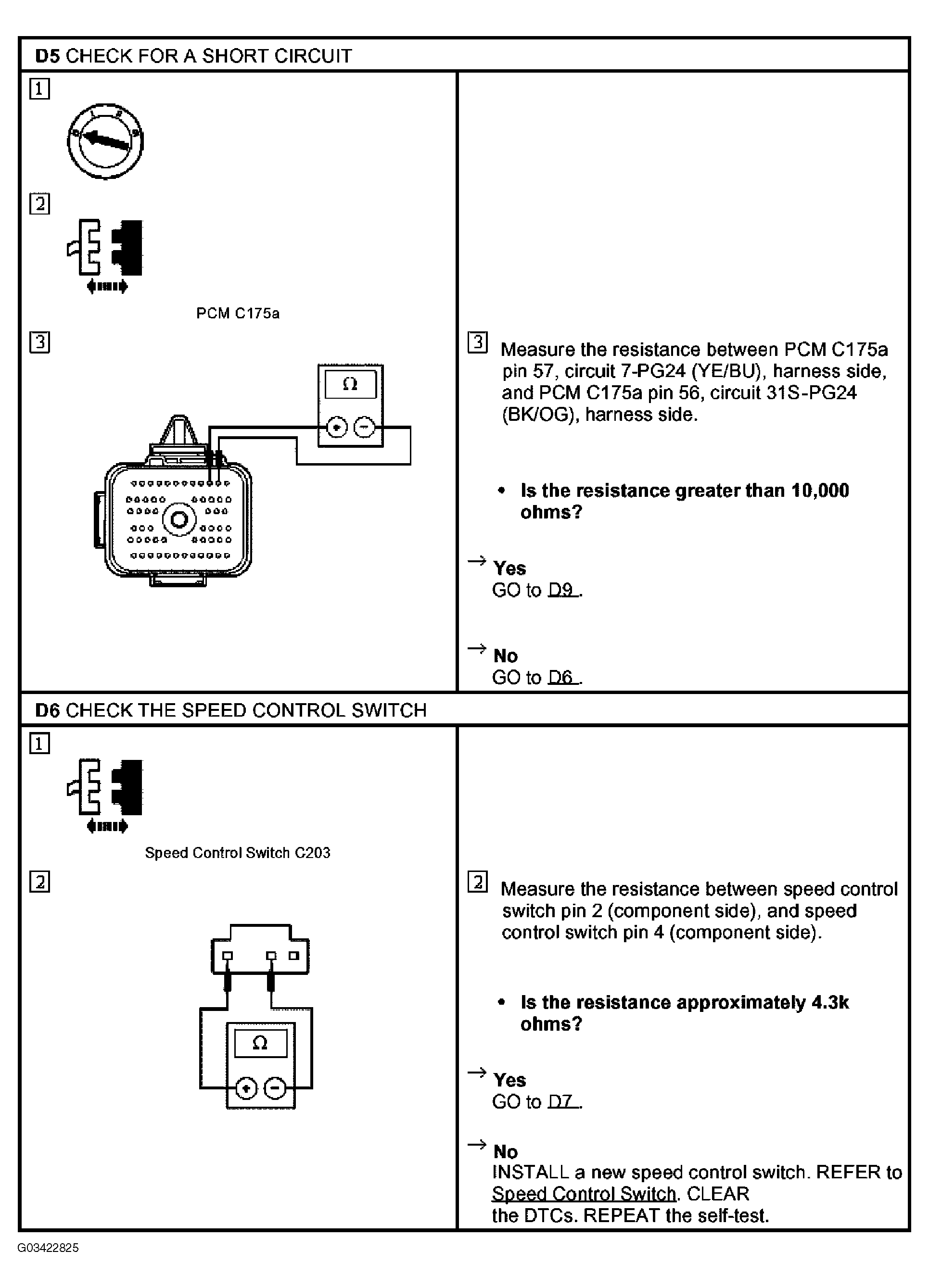

Fig 3: Identifying Pinpoint Test D: DTC P1566-Speed Control Command Switches Low/Out Of Range (D5-D6)

Courtesy of FORD MOTOR CO.

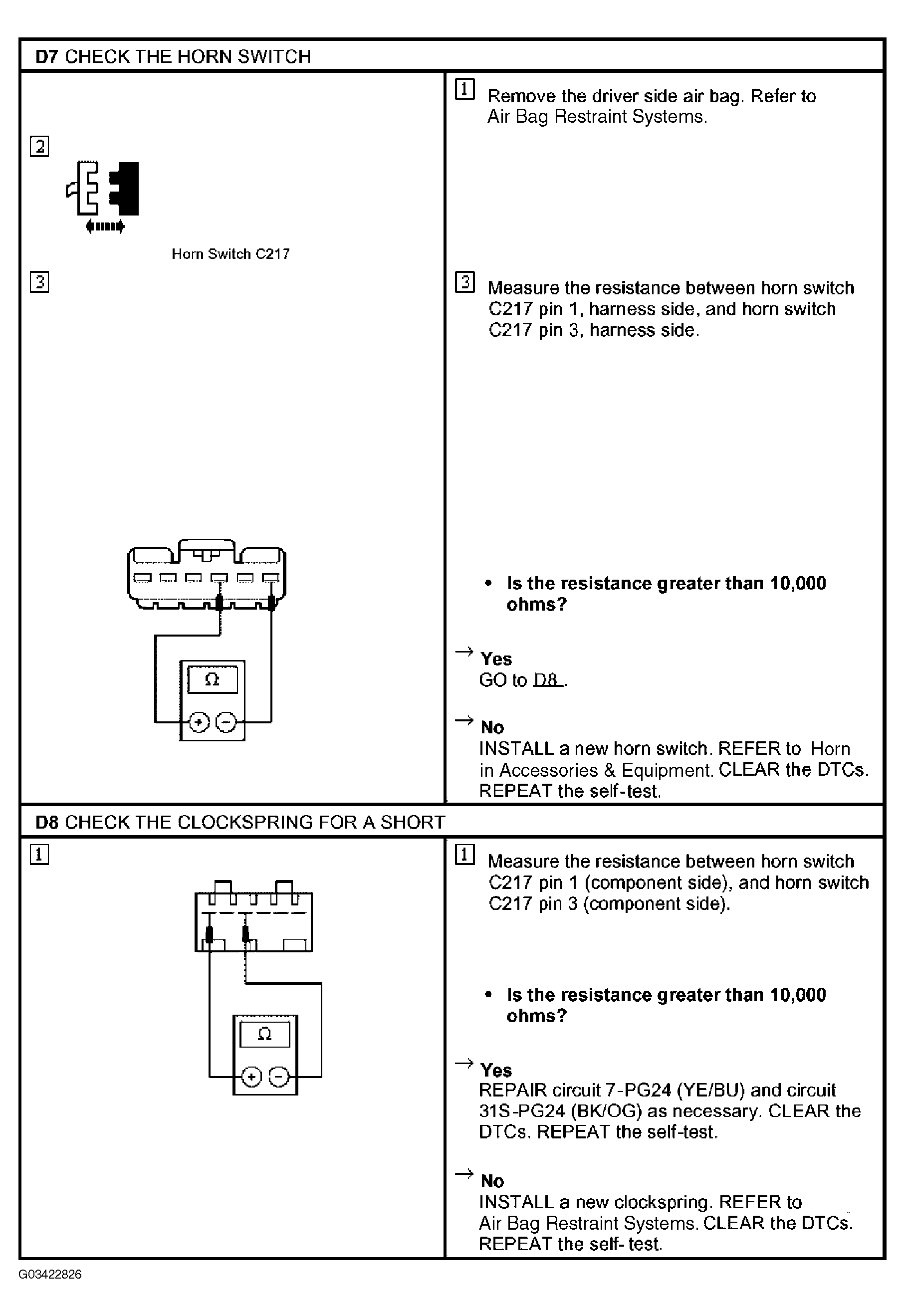

Fig 4: Identifying Pinpoint Test D: DTC P1566-Speed Control Command Switches Low/Out Of Range (D7-D8)

Courtesy of FORD MOTOR CO.

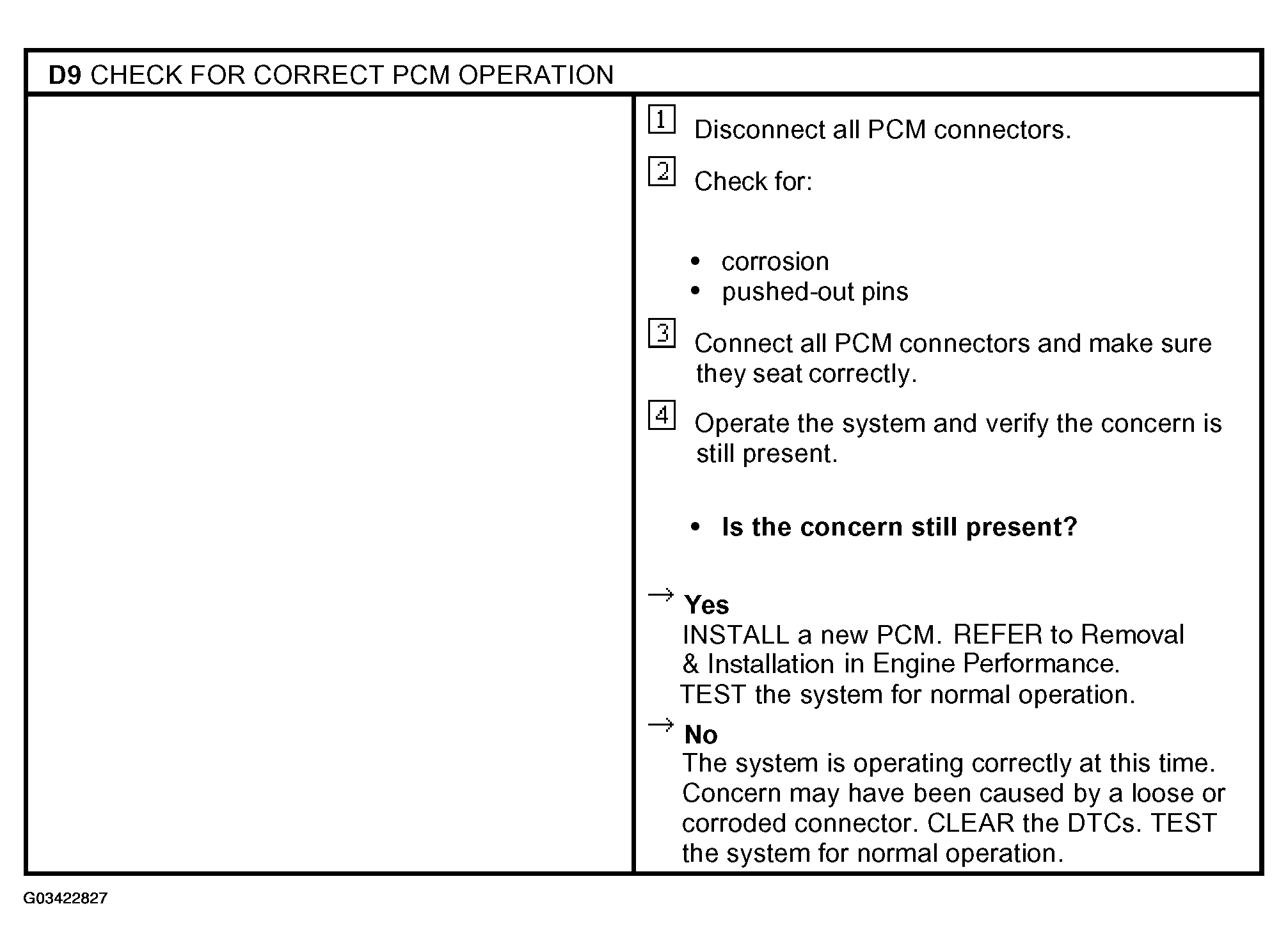

Fig 5: Identifying Pinpoint Test D: DTC P1566-Speed Control Command Switches Low/Out Of Range (D9)

Courtesy of FORD MOTOR CO.
