Pinpoint Test A: No Communication With The Dual Automatic Temperature Control (DATC) Module

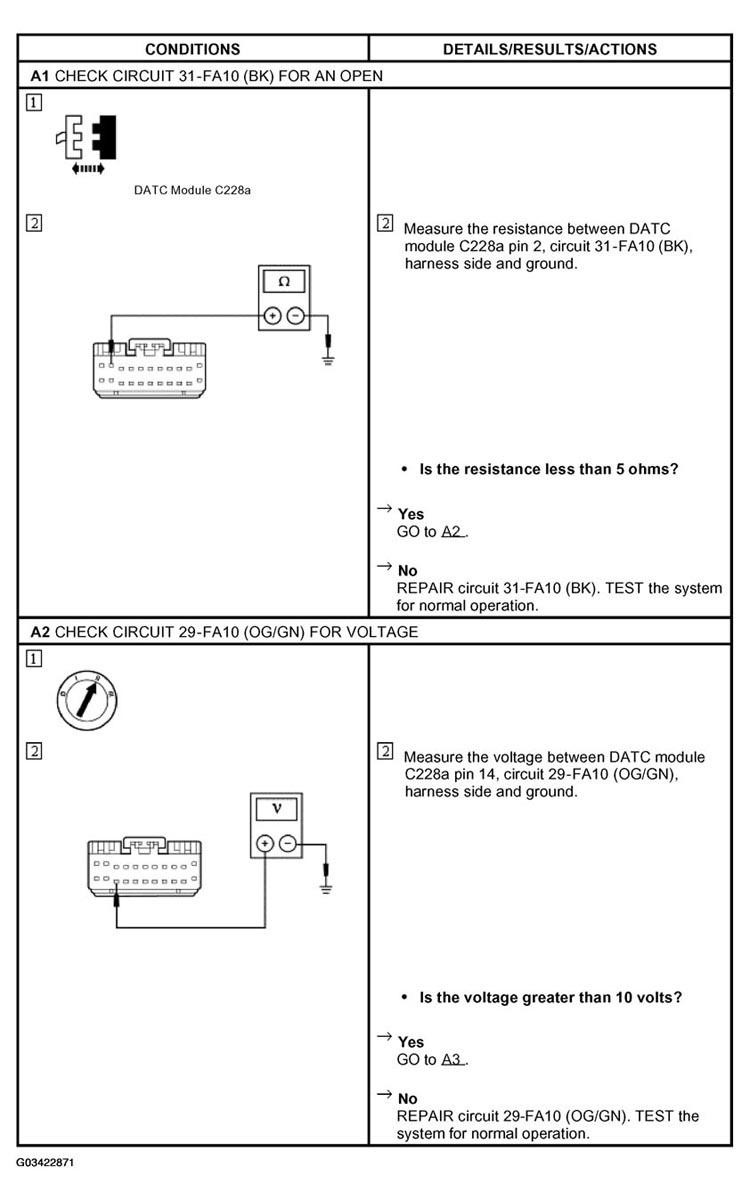

Fig 1: Identifying Pinpoint Test A: No Communication With Dual Automatic Temperature Control (DATC) Module (A1-A2)
G03422871Courtesy of FORD MOTOR CO.

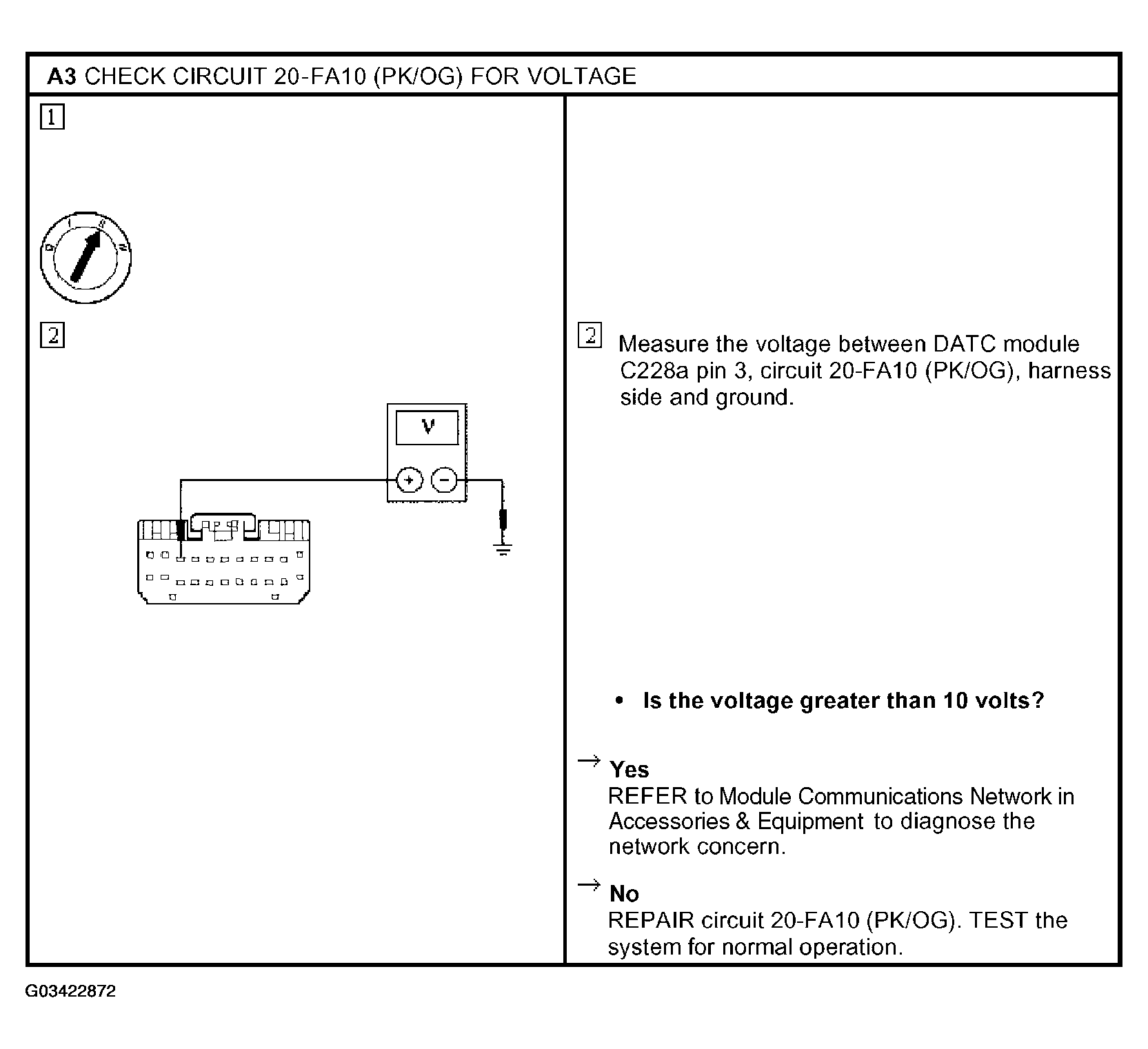

Fig 2: Identifying Pinpoint Test A: No Communication With Dual Automatic Temperature Control (DATC) Module (A3)
G03422872Courtesy of FORD MOTOR CO.
