Pinpoint Test A: No Communication With The Powertrain Control Module

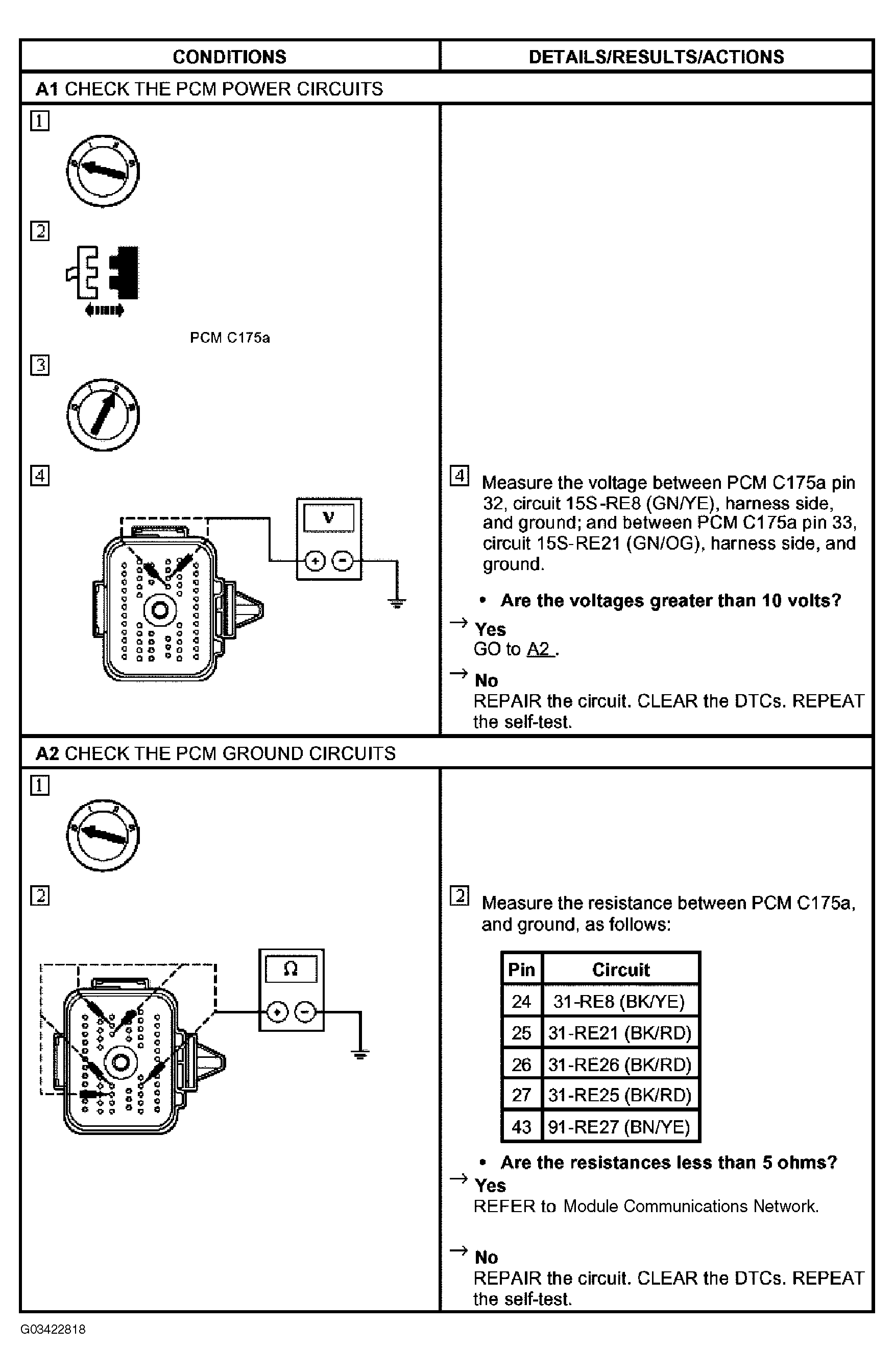

Fig 1: Identifying Pinpoint Test A: No Communication With Powertrain Control Module

G03422818

Courtesy of FORD MOTOR CO.
