Pinpoint Test C: No Communication With The Remote Keyless Entry (RKE) Module

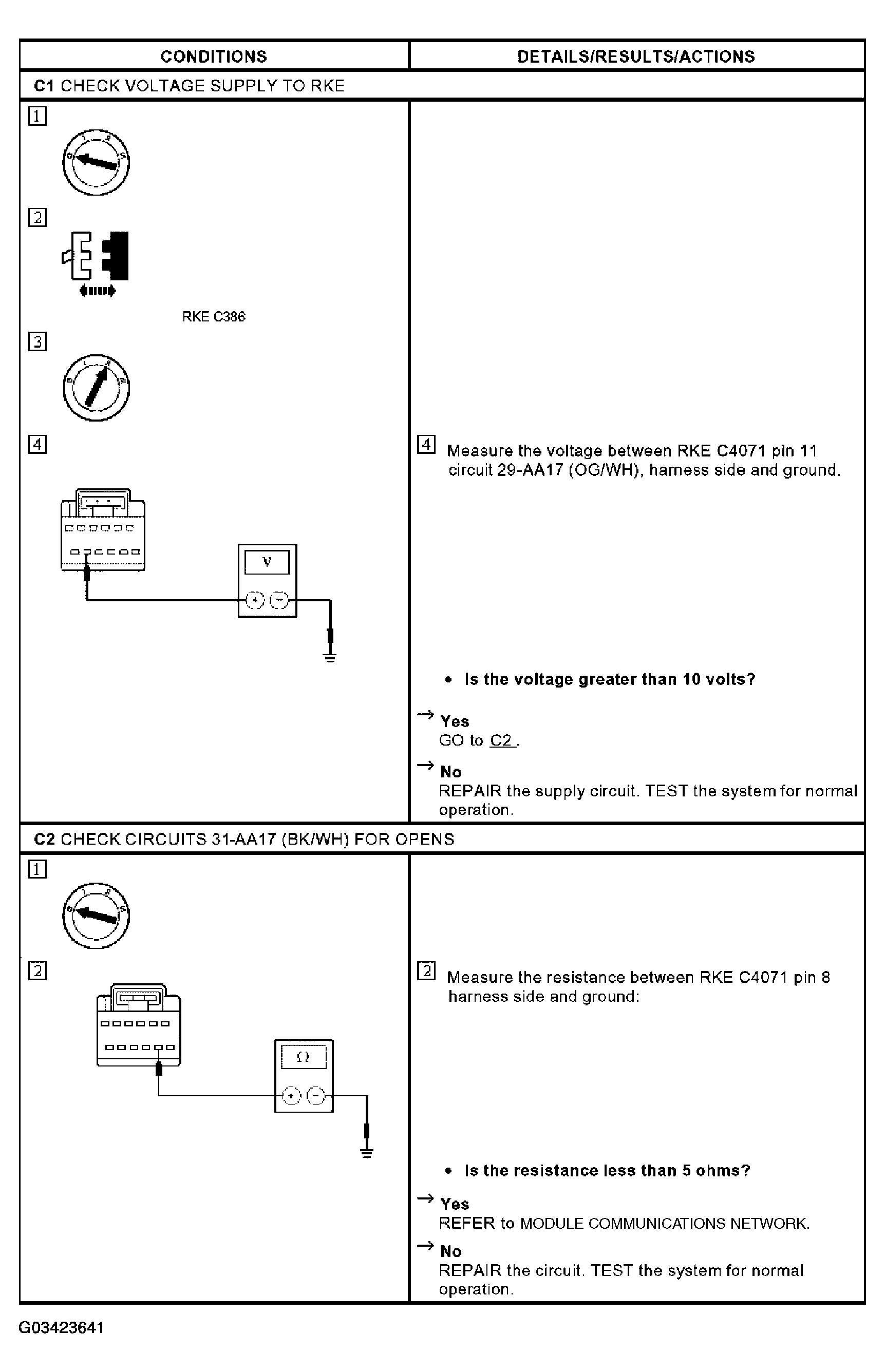

Fig 1: Pinpoint Test C: No Communication With Remote Keyless Entry Module

G03423641

Courtesy of FORD MOTOR CO.
