Pinpoint Test A: No Communication With The Front Electronic Module (Fem)

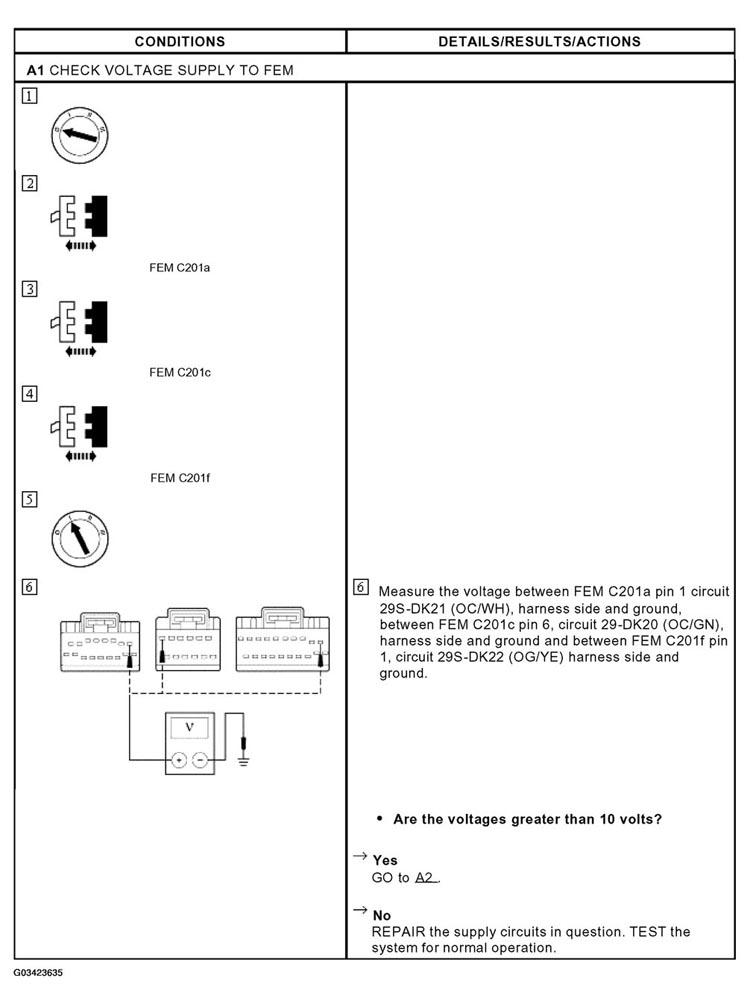

Fig 1: Pinpoint Test A: No Communication With Front Electronic Module (Test A1)
G03423635Courtesy of FORD MOTOR CO.

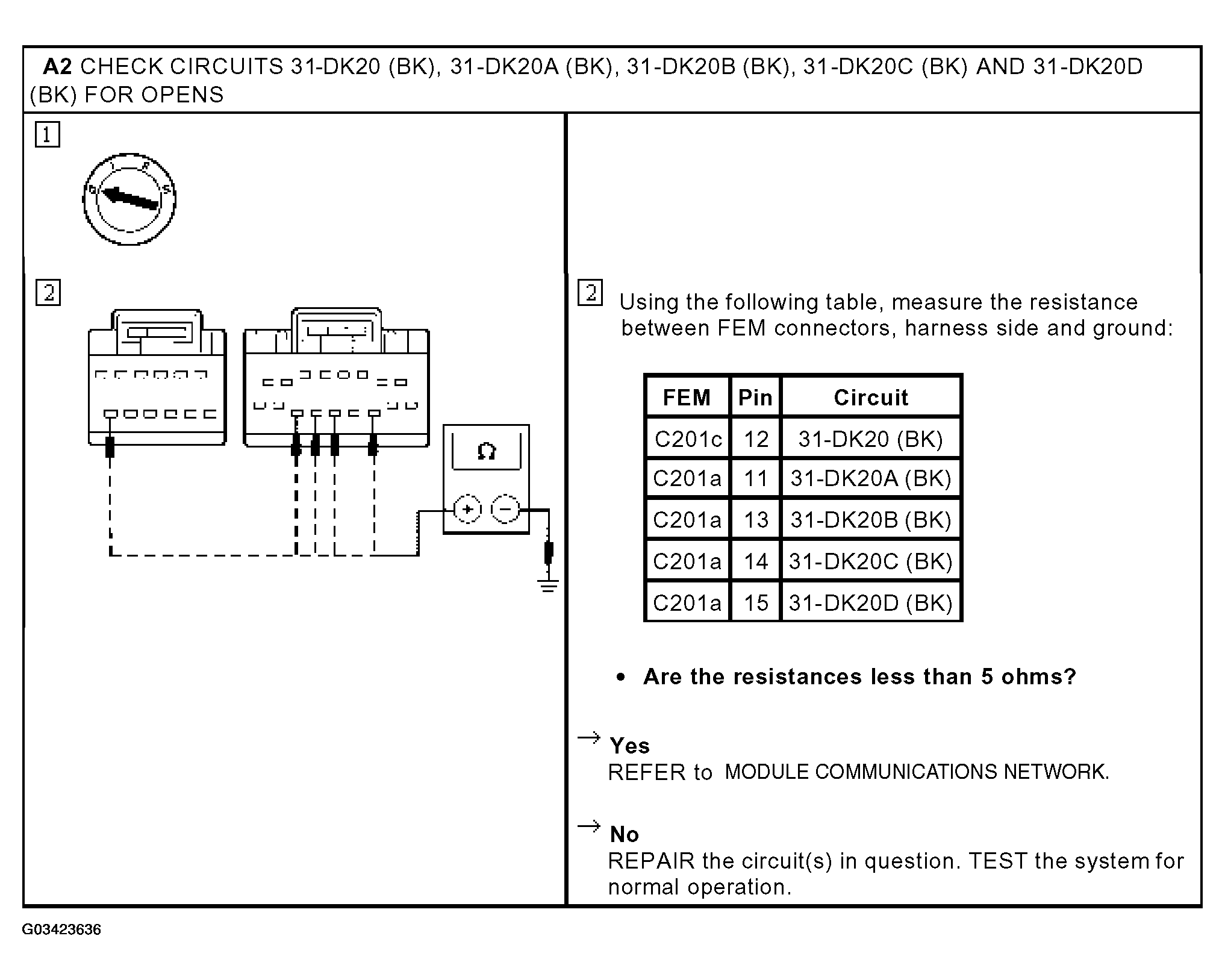

Fig 2: Pinpoint Test A: No Communication With Front Electronic Module (Test A2)
G03423636Courtesy of FORD MOTOR CO.
