Timing Chain: Installation

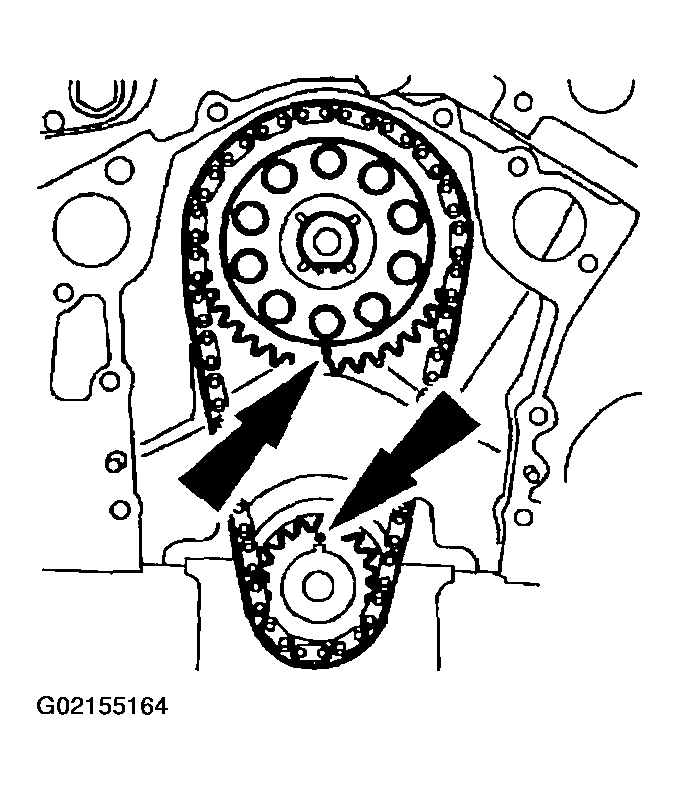

  1. Align the timing marks.
    Fig 1: Aligning Timing Marks
    G02155164Courtesy of FORD MOTOR CO.

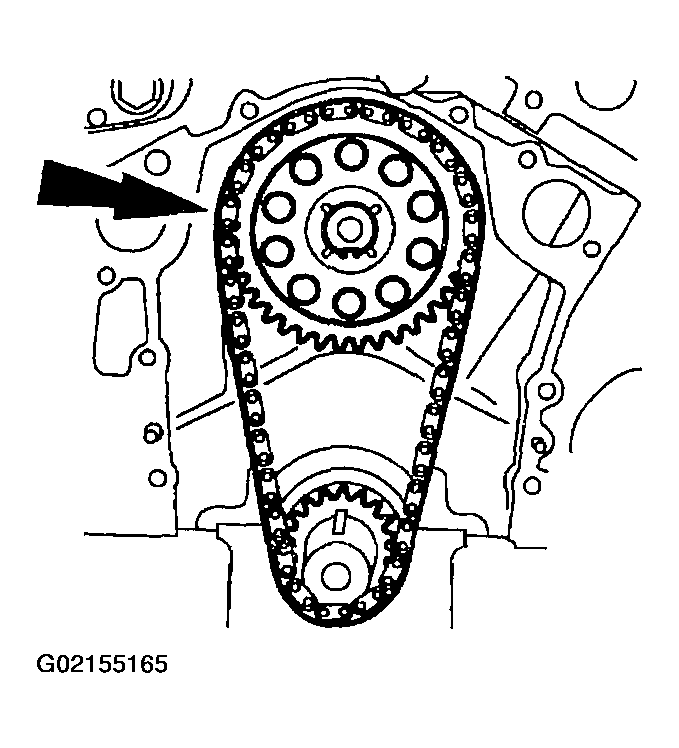

  2. Install the timing chain, the camshaft sprocket and the crankshaft sprocket as an assembly.
    Fig 2: Installing Timing Chain, Camshaft Sprocket & Crankshaft Sprocket As An Assembly
    G02155165Courtesy of FORD MOTOR CO.

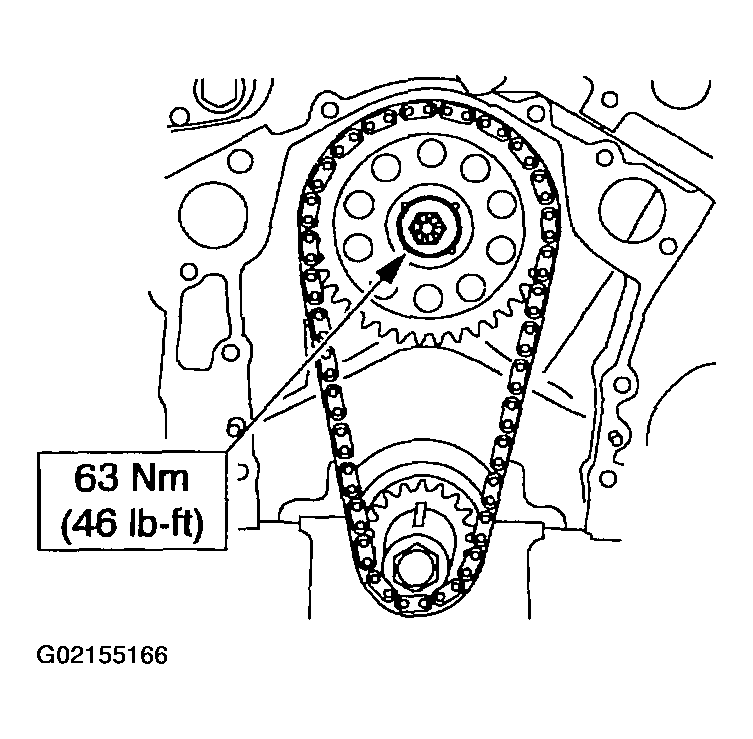

  3. Install the camshaft sprocket bolt.
    Fig 3: Installing Camshaft Sprocket Bolt
    G02155166Courtesy of FORD MOTOR CO.
  4. Install the engine front cover. Refer to ENGINE FRONT COVER - WITH CIII POWER STEERING SYSTEM  OR ENGINE FRONT COVER - WITH CII POWER STEERING SYSTEM .
  5. Connect the battery ground cable.
