Removal and Installation

  1. Disconnect the battery ground cable (14301) and wait at least one minute.
  2. Remove the ignition switch lock cylinder.
    1. Insert the ignition key and turn to the RUN position.
    2. While pressing in the ignition switch lock cylinder release pin, pull the lock cylinder out of the steering column.

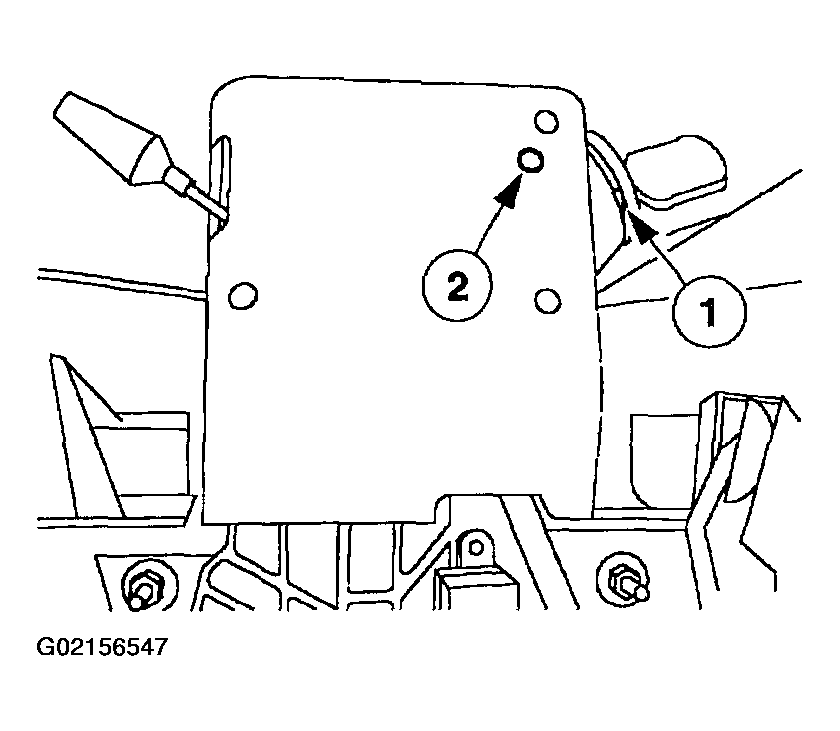

    Fig 1: Removing Ignition Switch Lock Cylinder
    G02156547Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
    • Verify the ignition switch lock cylinder operation.

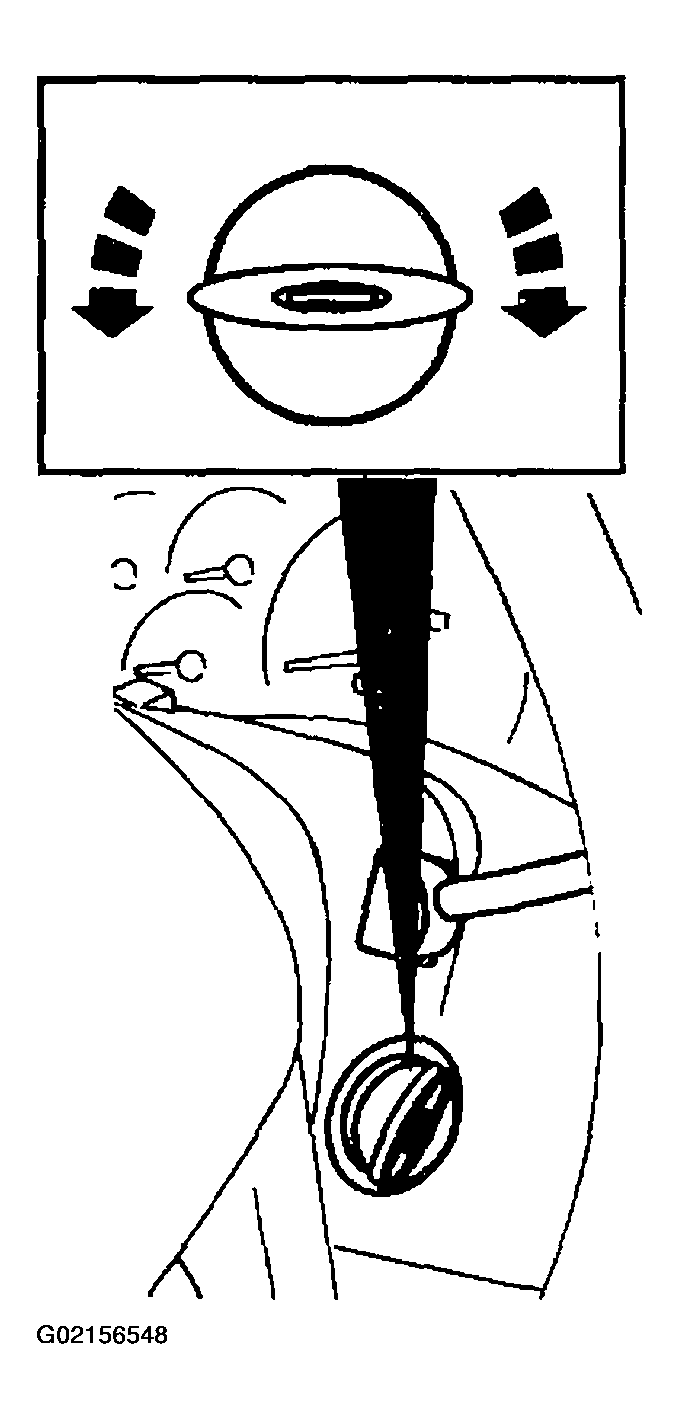

    Fig 2: Verifying Ignition Lock Cylinder Operation
    G02156548Courtesy of FORD MOTOR CO.
