Upper Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Clean all the sealing surfaces.
  2. Inspect the upper intake manifold gaskets. Replace if required.

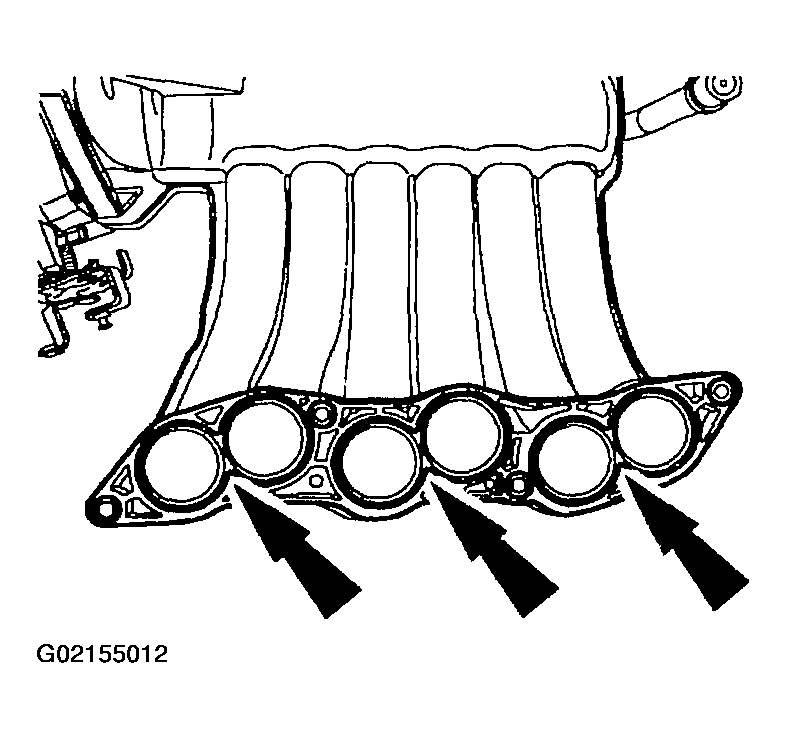

    Fig 1: Inspecting Gaskets
    G02155012Courtesy of FORD MOTOR CO.
  3. Install the upper intake manifold. Install the bolts in the sequence shown.
    • Tighten the bolts in two stages.
      • Stage 1: Tighten hand tight.
      • Stage 2: Tighten to 10 Nm (89 lb-in).

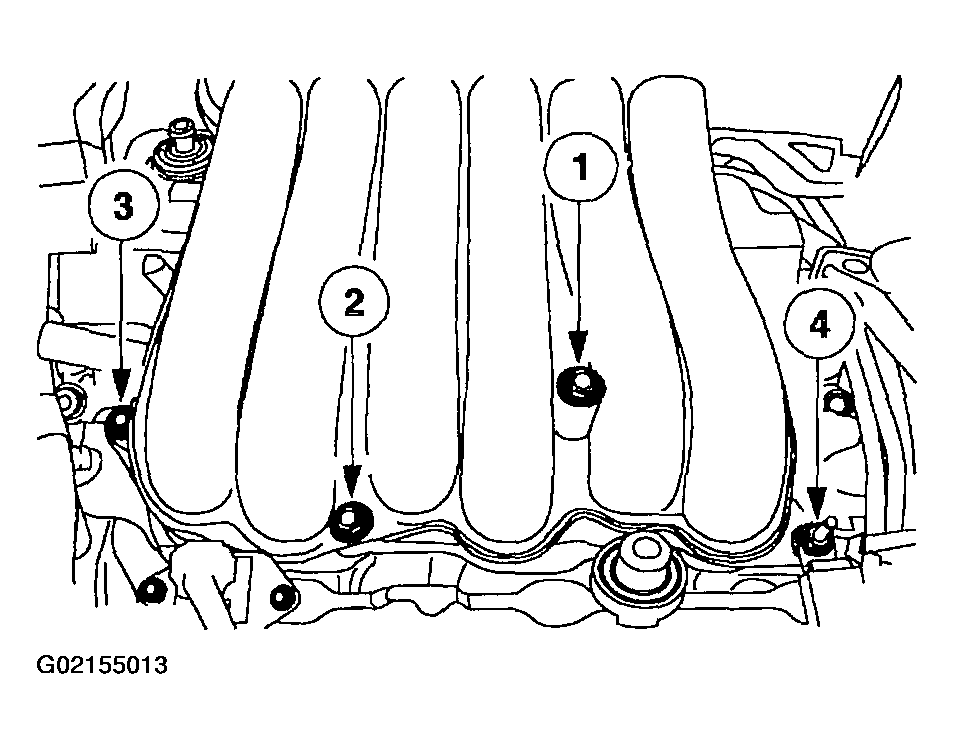

    Fig 2: Upper Intake Manifold Bolt Torque Sequence
    G02155013Courtesy of FORD MOTOR CO.
  4. Connect the radio suppressor and the spark plug holder.

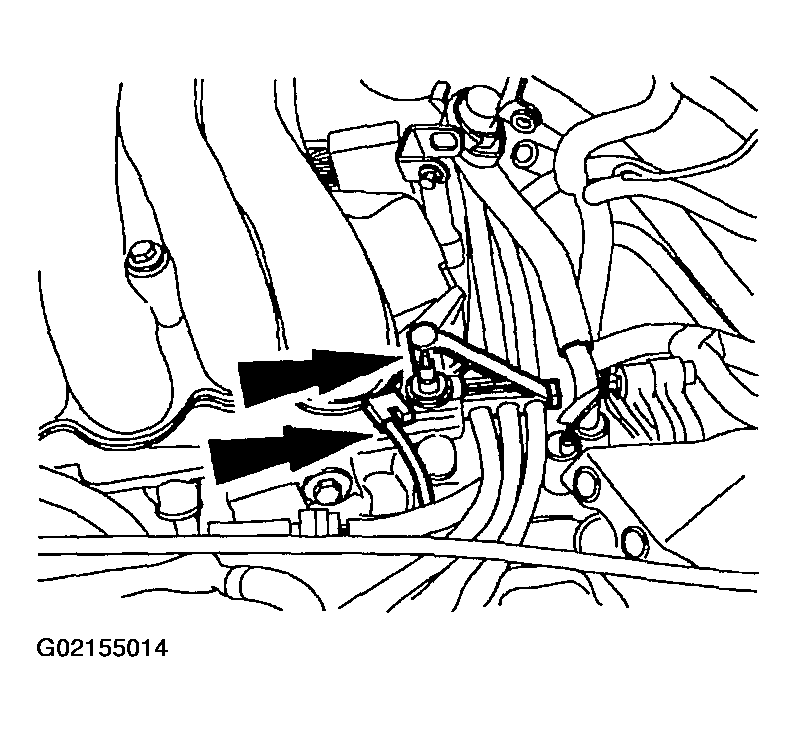

    Fig 3: Connecting Radio Suppressor & Spark Plug Holder
    G02155014Courtesy of FORD MOTOR CO.
  5. Connect the wire harness retaining clip.

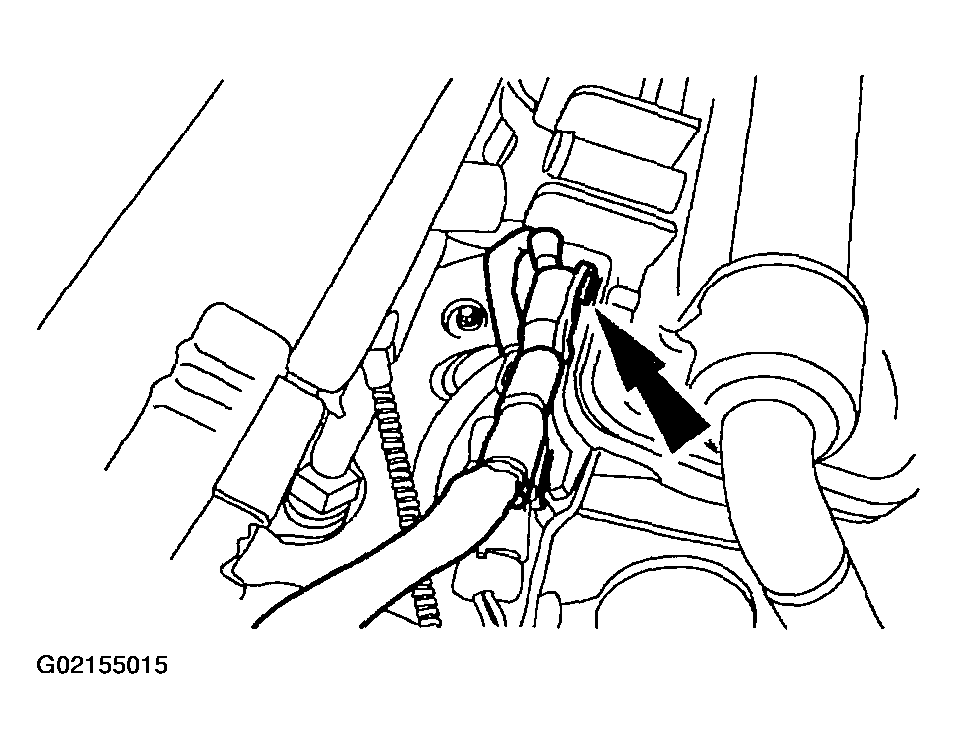

    Fig 4: Connecting Wire Harness Retaining Clip
    G02155015Courtesy of FORD MOTOR CO.
  6. Connect the electrical connector and vacuum tube to the vacuum regulator solenoid and the vacuum tube to the intake manifold.

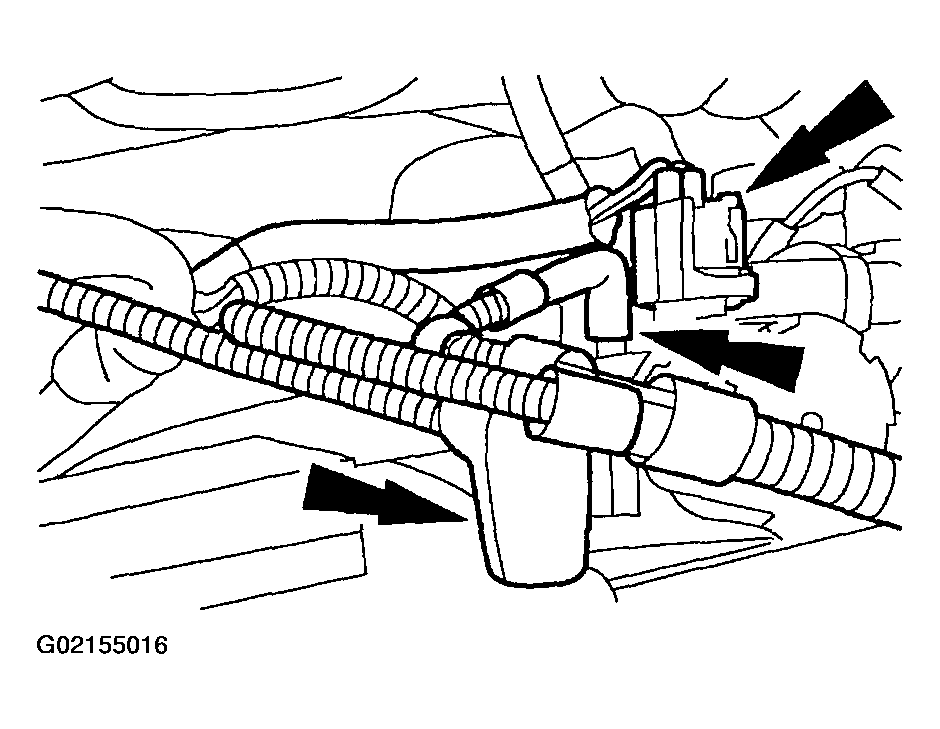

    Fig 5: Connecting Electrical Connector & Vacuum Tube To Vacuum Regulator Solenoid & Connecting Vacuum Tube To Intake Manifold.
    G02155016Courtesy of FORD MOTOR CO.
  7. Connect the vacuum hose to the EGR valve.

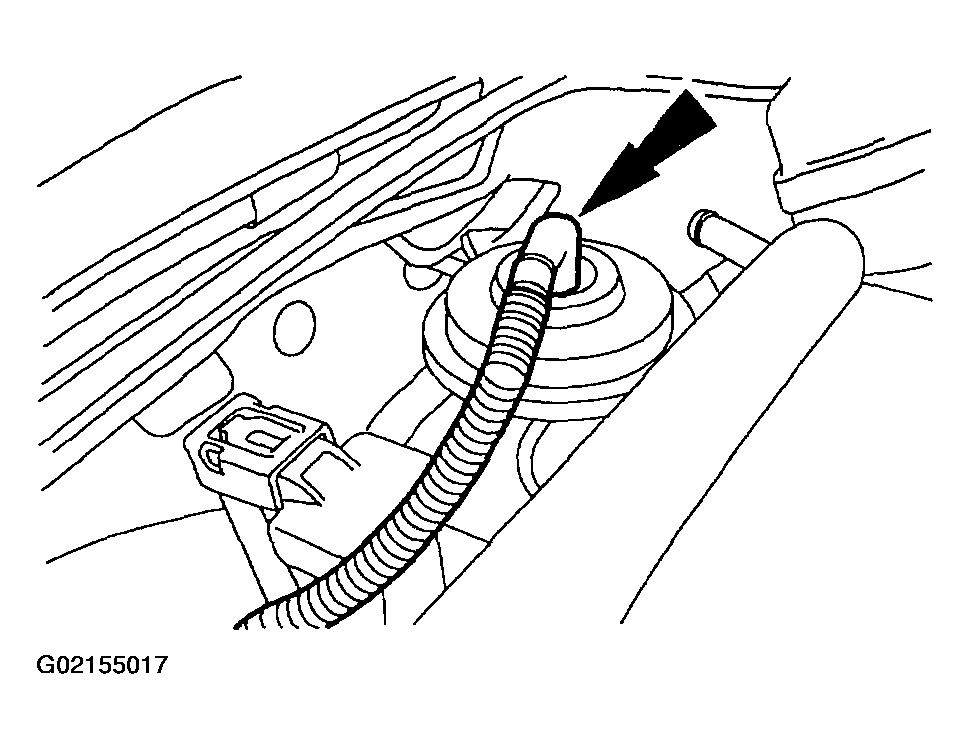

    Fig 6: Connecting Vacuum Hose To EGR Valve
    G02155017Courtesy of FORD MOTOR CO.
  8. Connect the EGR tube to the EGR valve.

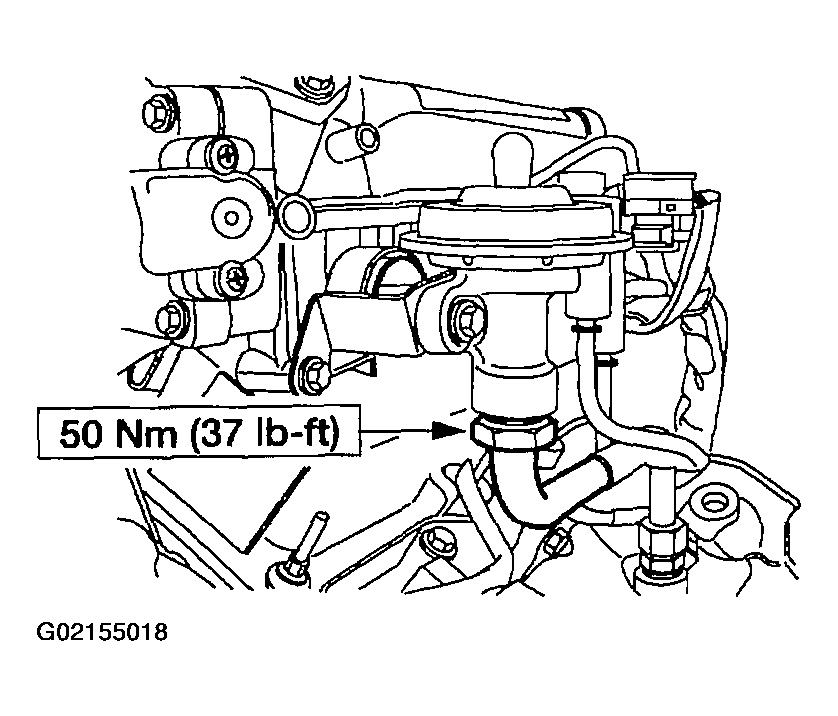

    Fig 7: Connecting EGR Tube To EGR Valve.
    G02155018Courtesy of FORD MOTOR CO.
  9. Connect the PCV tube to the upper intake manifold.

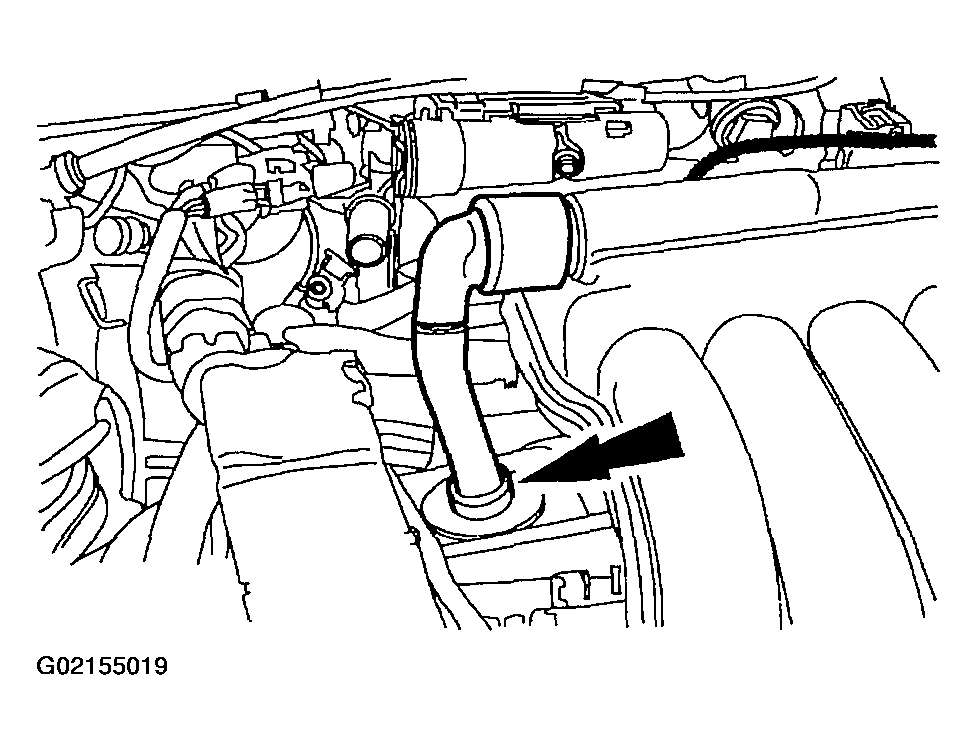

    Fig 8: Connecting PCV Tube To Upper Intake Manifold
    G02155019Courtesy of FORD MOTOR CO.
  10. Install the upper intake manifold support bracket.

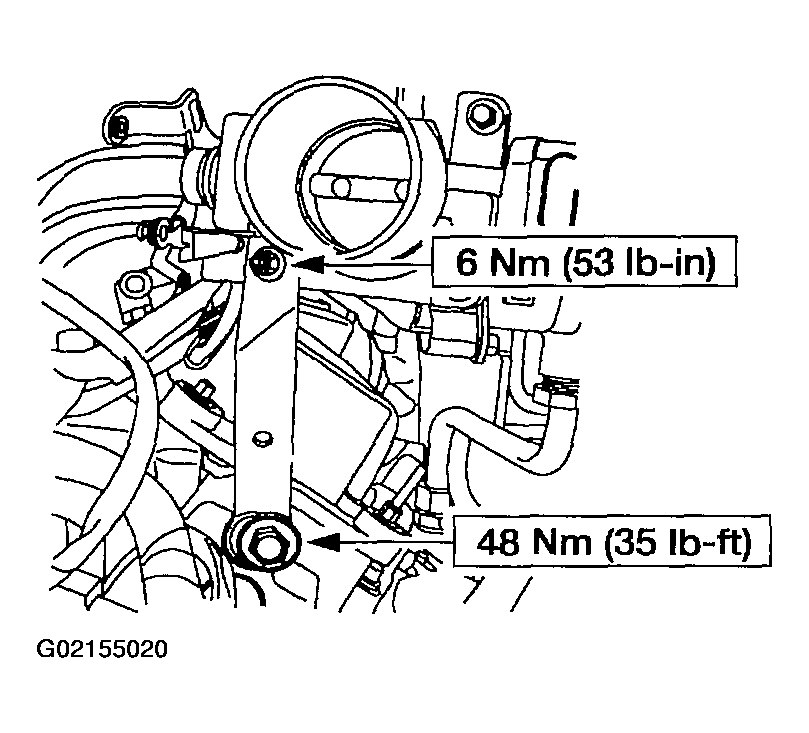

    Fig 9: Installing Upper Intake Manifold Support Bracket
    G02155020Courtesy of FORD MOTOR CO.
  11. Connect the engine wiring harness to the intake manifold support bracket.

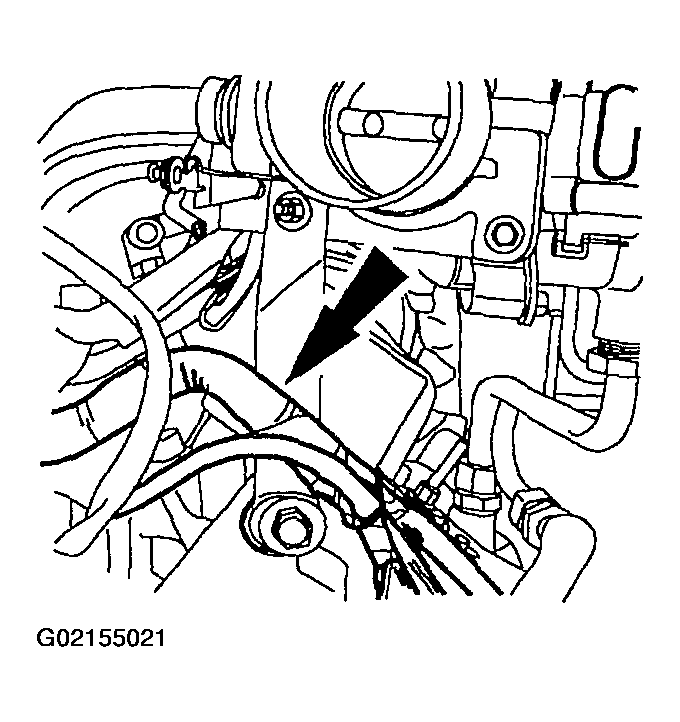

    Fig 10: Connecting Engine Wiring Harness To Intake Manifold Support Bracket
    G02155021Courtesy of FORD MOTOR CO.
  12. Connect the IAC and TP sensor electrical connectors.

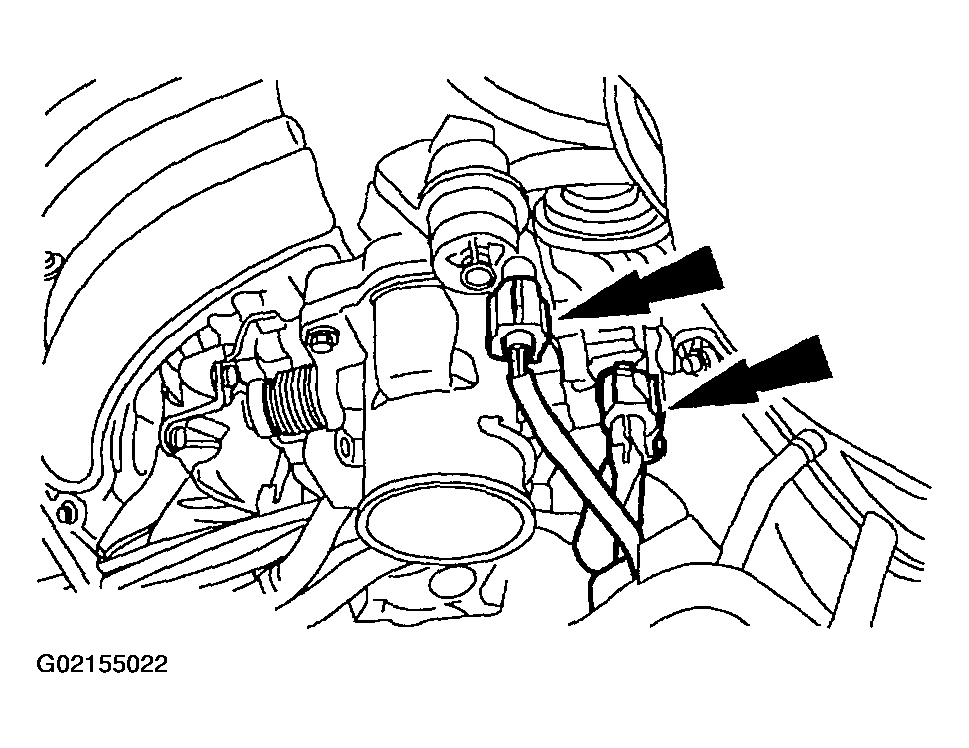

    Fig 11: Connecting IAC & TP Sensor Electrical Connectors
    G02155022Courtesy of FORD MOTOR CO.
  13. Connect the evaporative emissions return tube and the vacuum hose.

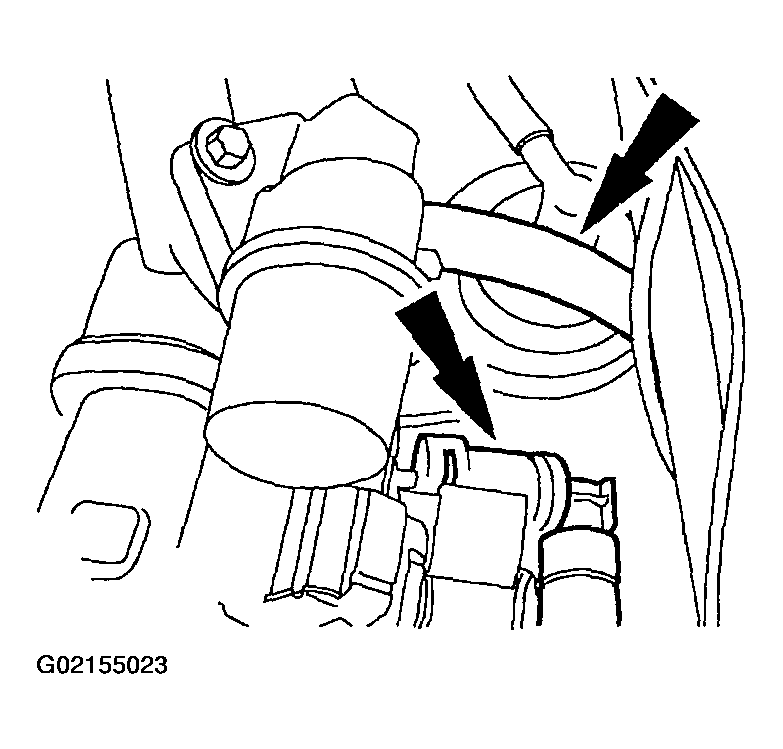

    Fig 12: Connecting Evaporative Emissions Return Tube & Vacuum Hose
    G02155023Courtesy of FORD MOTOR CO.
  14. Position the accelerator cable bracket and install the bolts.

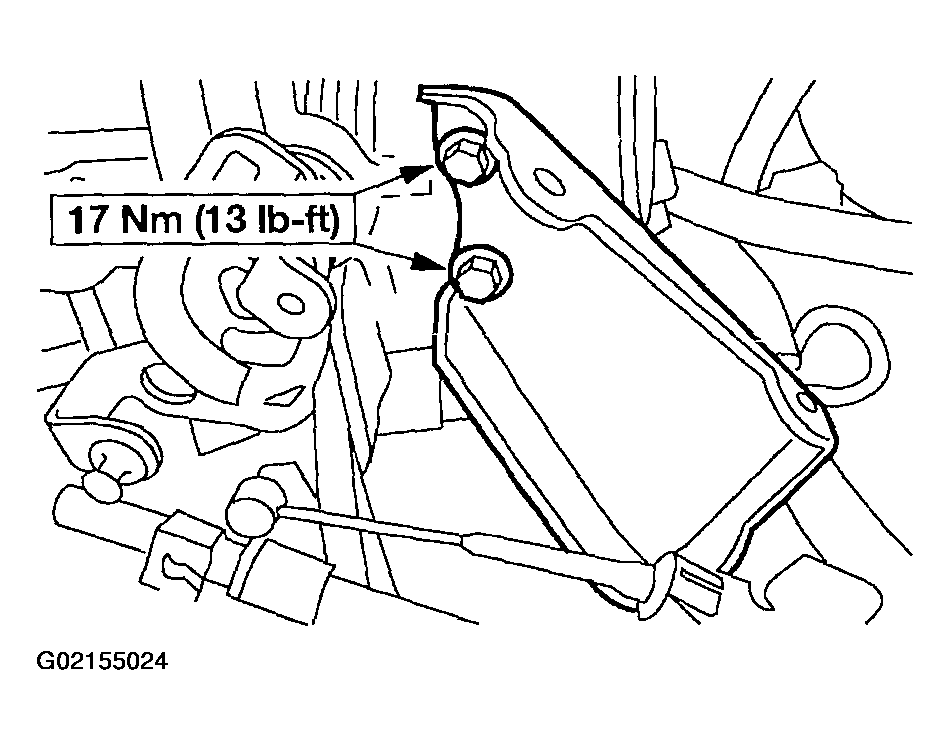

    Fig 13: Installing Accelerator Cable Bracket
    G02155024Courtesy of FORD MOTOR CO.
  15. Connect the accelerator control cable, speed control cable and the throttle return spring.

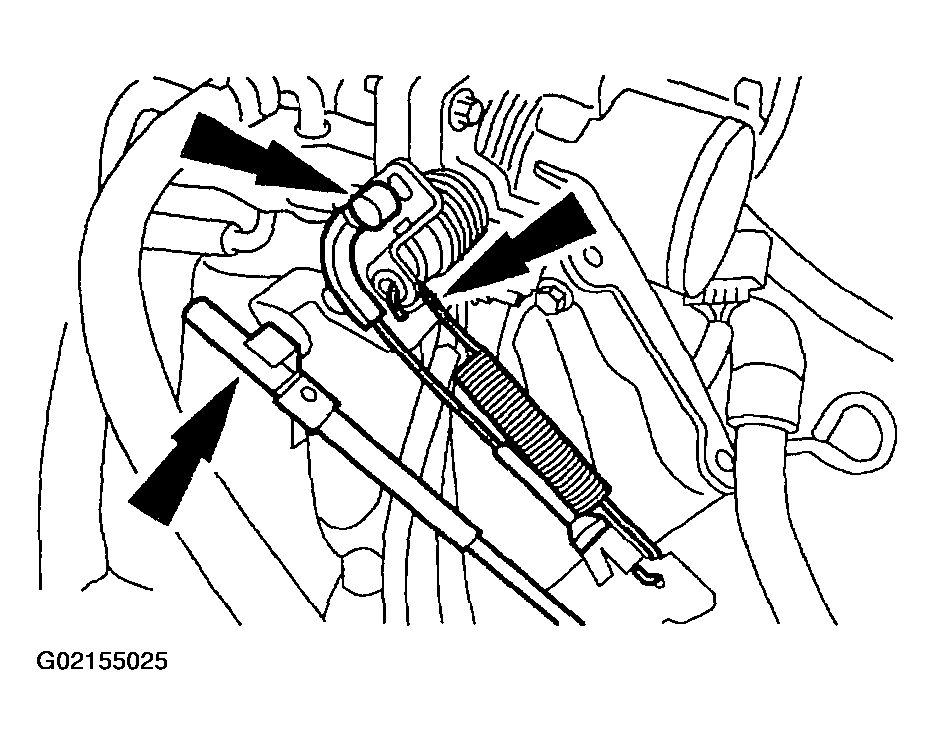

    Fig 14: Connecting Accelerator Control Cable, Speed Control Cable & Throttle Return Spring
    G02155025Courtesy of FORD MOTOR CO.
  16. Install the snow shield.

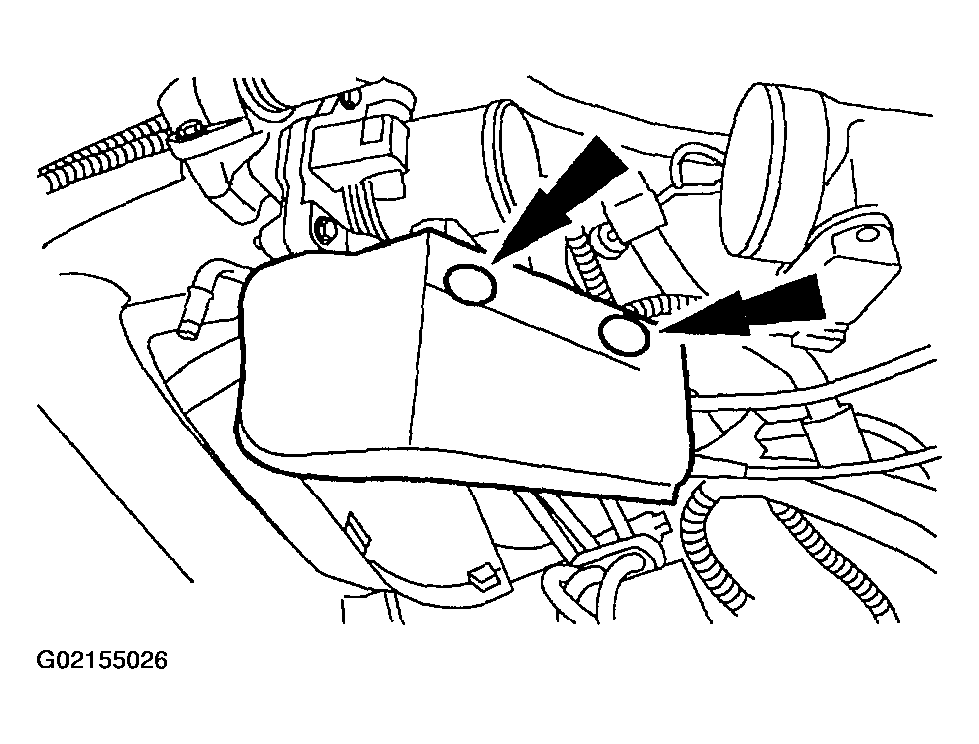

    Fig 15: Installing Snow Shield
    G02155026Courtesy of FORD MOTOR CO.
  17. Install the air cleaner assembly and the air cleaner outlet tube.
  18. Connect the battery ground cable.
