Description And Operation: Engine

The 3.0L engine has:

• A V-Block With Six Cylinders And Splayed Crankpins
• A Distributorless Ignition System
• A Multiport, Sequential Fuel Injection (SFI) System
• Overhead Valves
• Hydraulic Valve Tappets (6500) For Automatic Lash Adjustment
• Connecting Rod Parting Faces That Are Unique With An Interference Fit

For removal and installation of the water pump, refer to ENGINE COOLING .

Major Upper Engine Components

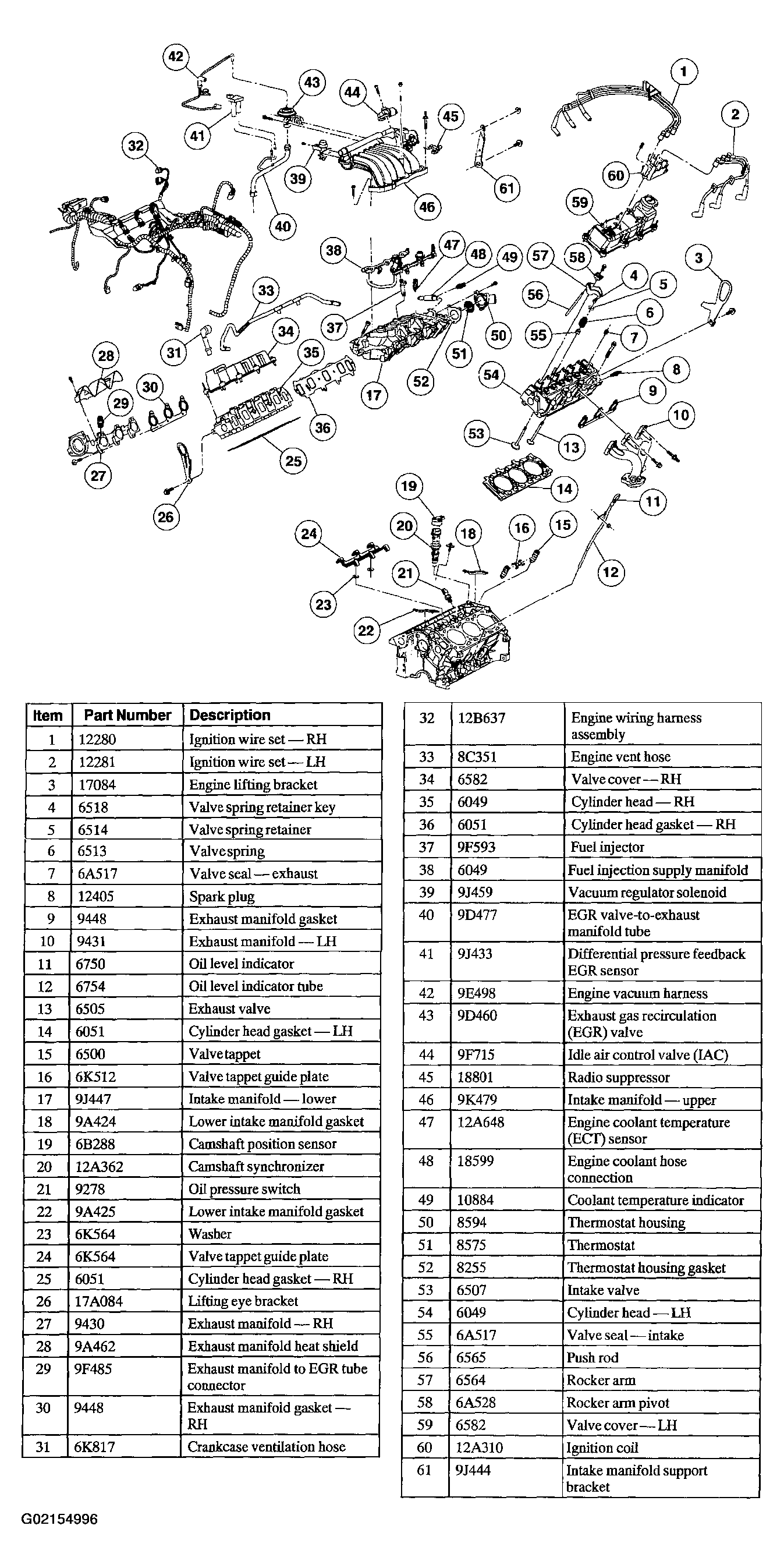

Fig 1: Identifying Major Upper Engine Components

Courtesy of FORD MOTOR CO.

Cylinder Block - Lower

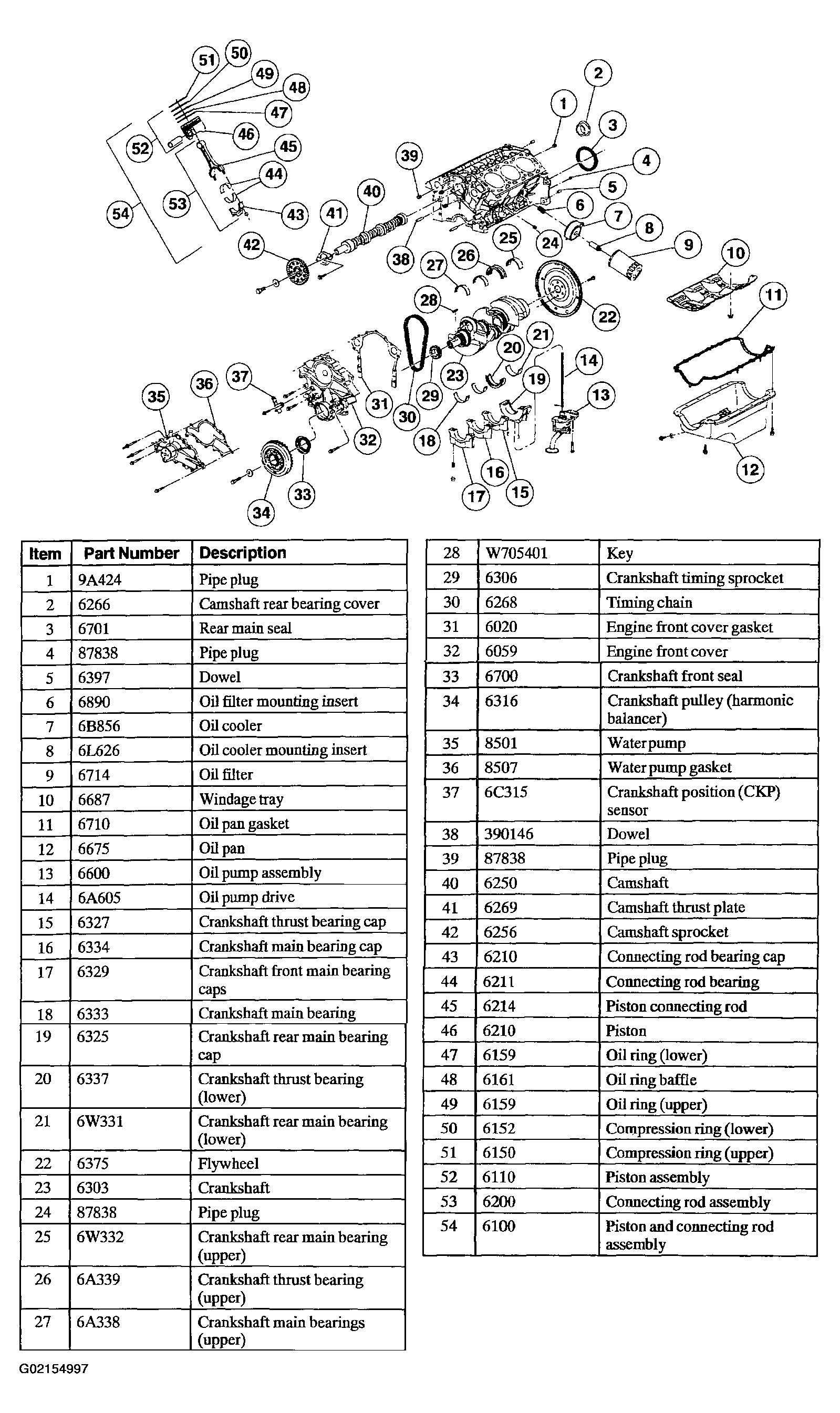

Fig 2: Identifying Lower Cylinder Block Components

Courtesy of FORD MOTOR CO.
