Planet Assembly: Assembly

  1. Install the reverse planet.

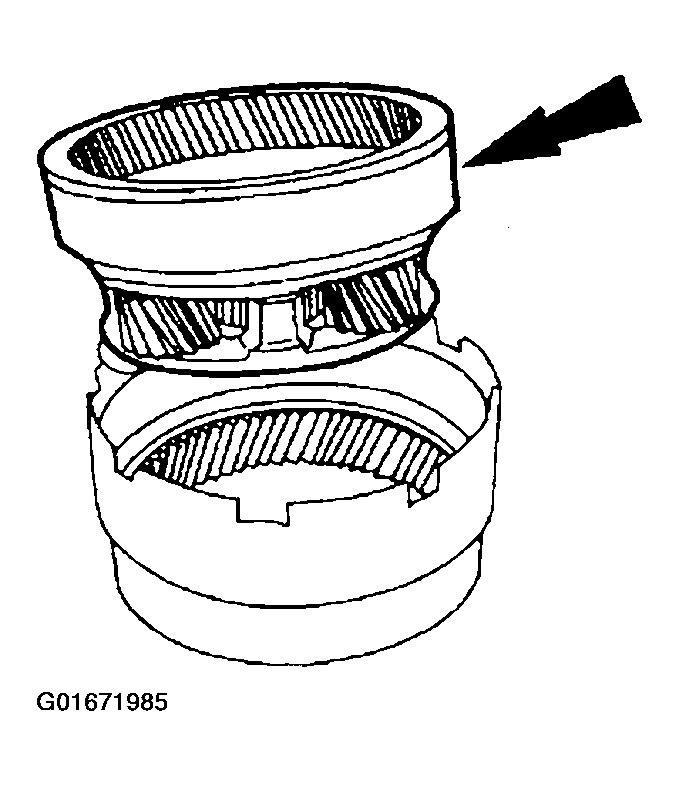

    2. Fig 1: Installing Reverse Planet
    G01671985Courtesy of FORD MOTOR CO.
  2. Install the No. 13 needle bearing.

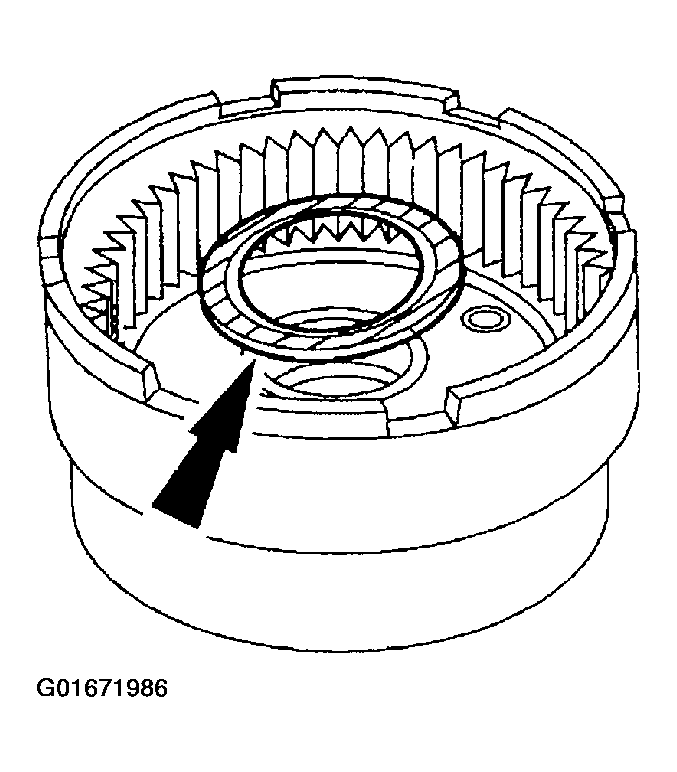

    3. Fig 2: Installing No. 13 Needle Bearing
    G01671986Courtesy of FORD MOTOR CO.
  3. Install the front planet gear assembly.

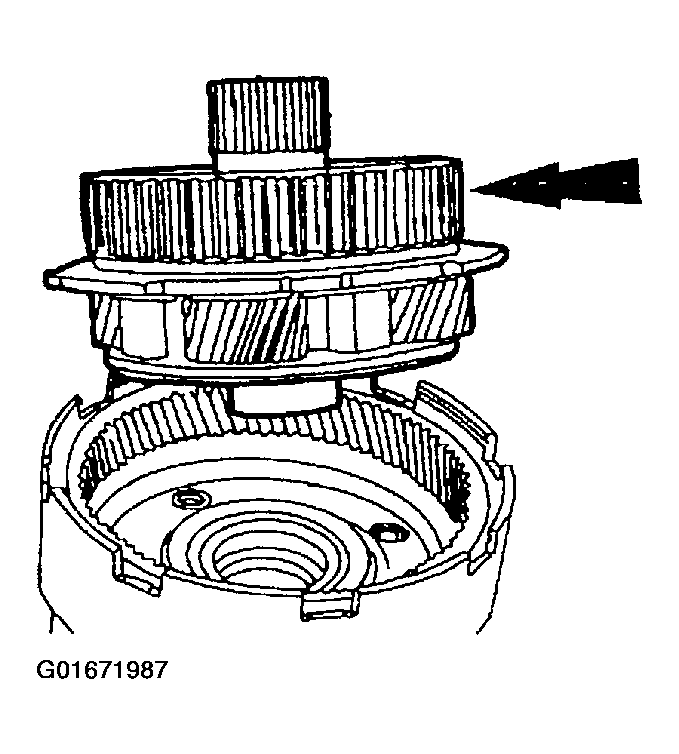

    4. Fig 3: Installing Front Planet Gear Assembly
    G01671987Courtesy of FORD MOTOR CO.
  4. Install the retaining ring to the rear ring gear.

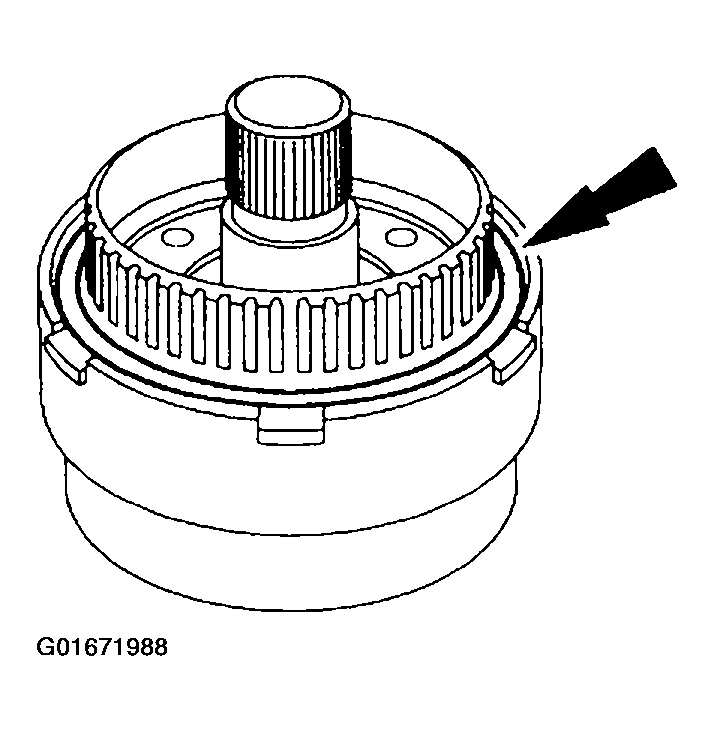

Fig 4: Installing Retaining Ring To Rear Ring Gear
G01671988Courtesy of FORD MOTOR CO.
