Low & Intermediate Servo: Notes

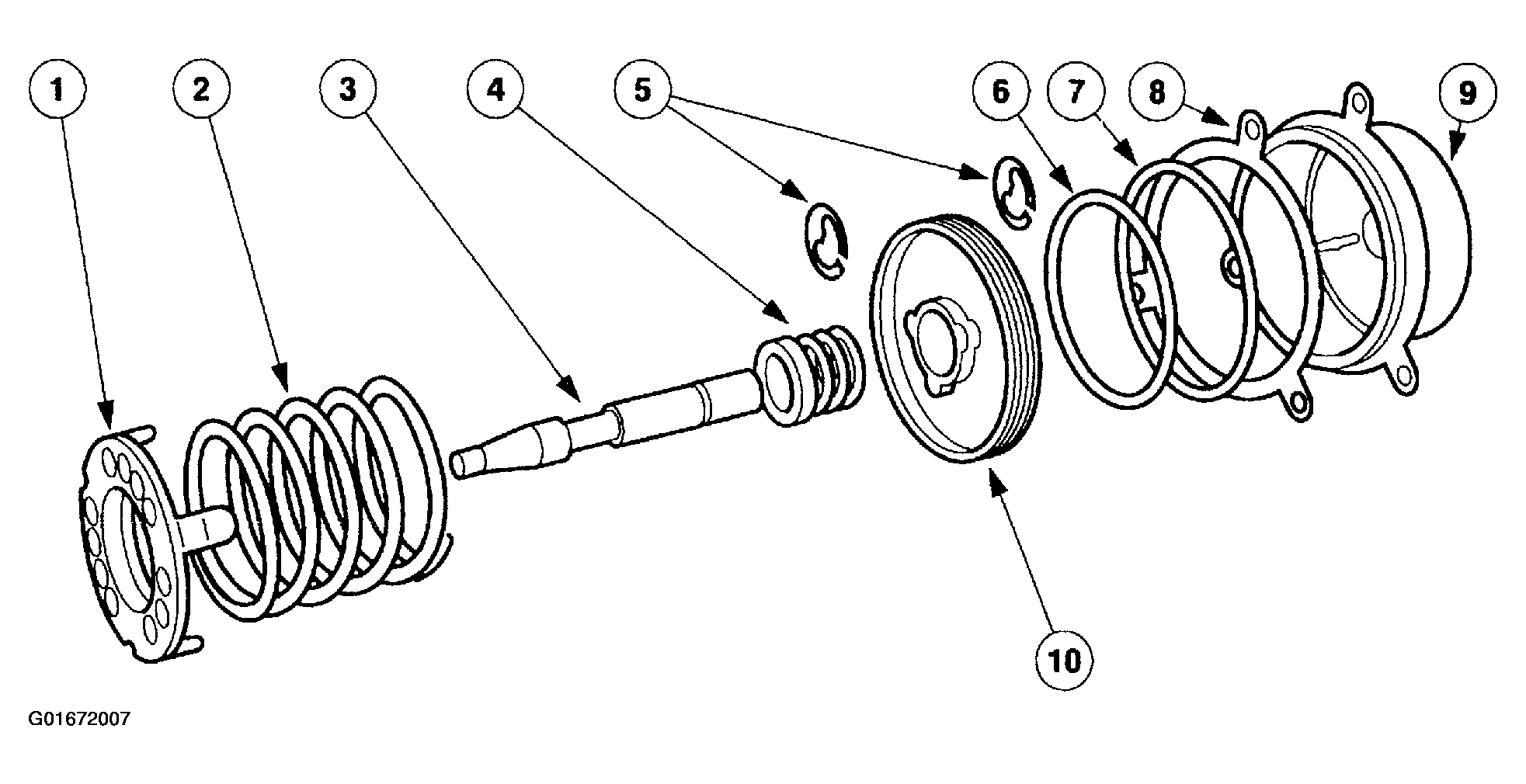

Fig 1: Identifying Low & Intermediate Servo Components (1 Of 3)
G01672007Courtesy of FORD MOTOR CO.

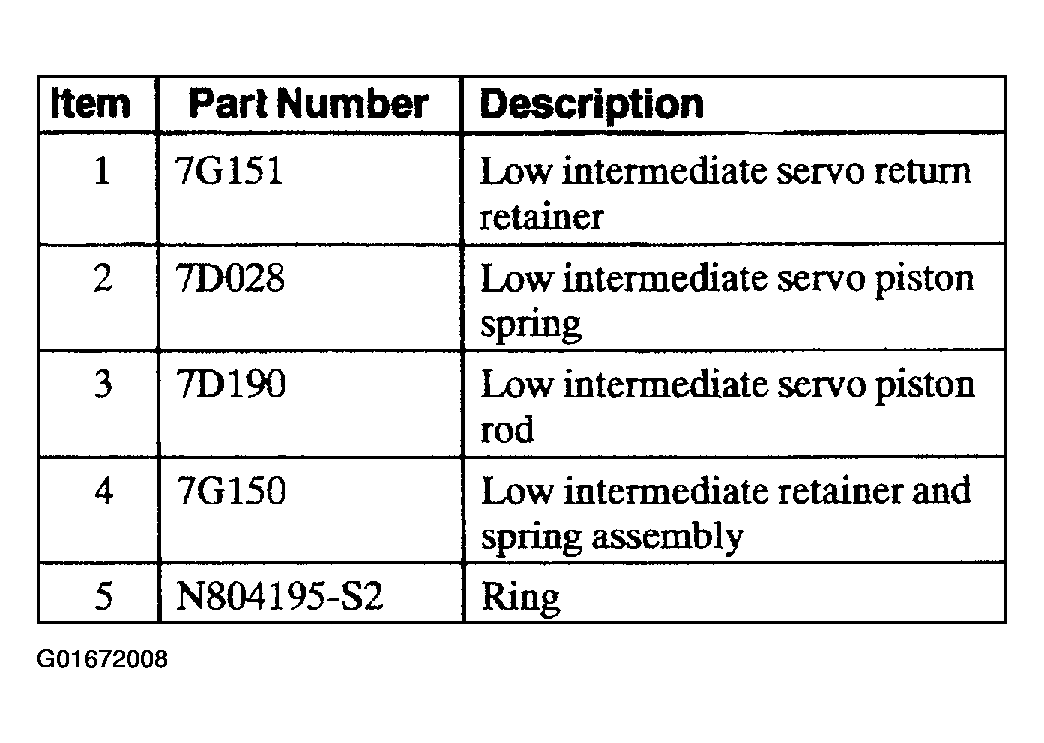

Fig 2: Identifying Low & Intermediate Servo Components (2 Of 3)
G01672008Courtesy of FORD MOTOR CO.

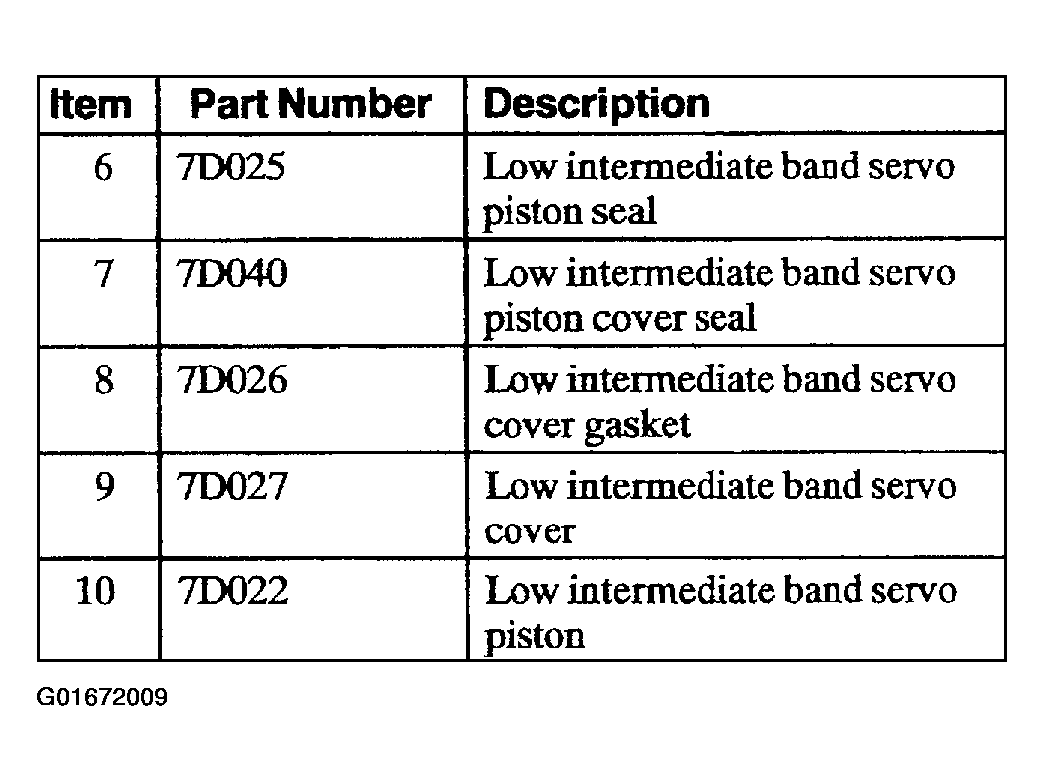

Fig 3: Identifying Low & Intermediate Servo Components (3 Of 3)
G01672009Courtesy of FORD MOTOR CO.
