Final Drive: Notes

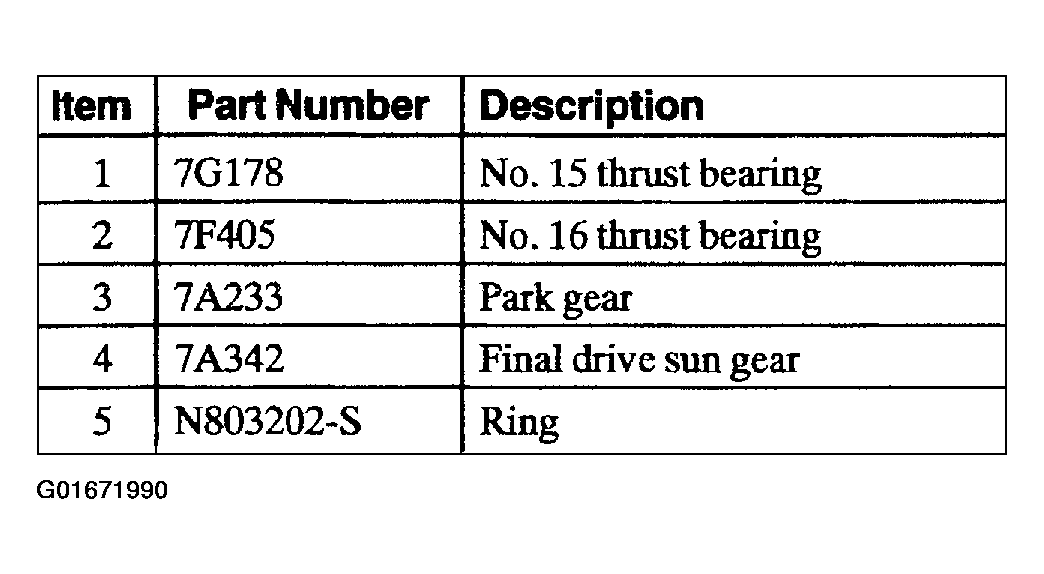

Fig 1: Identifying Final Drive Components (1 Of 5)

Courtesy of FORD MOTOR CO.

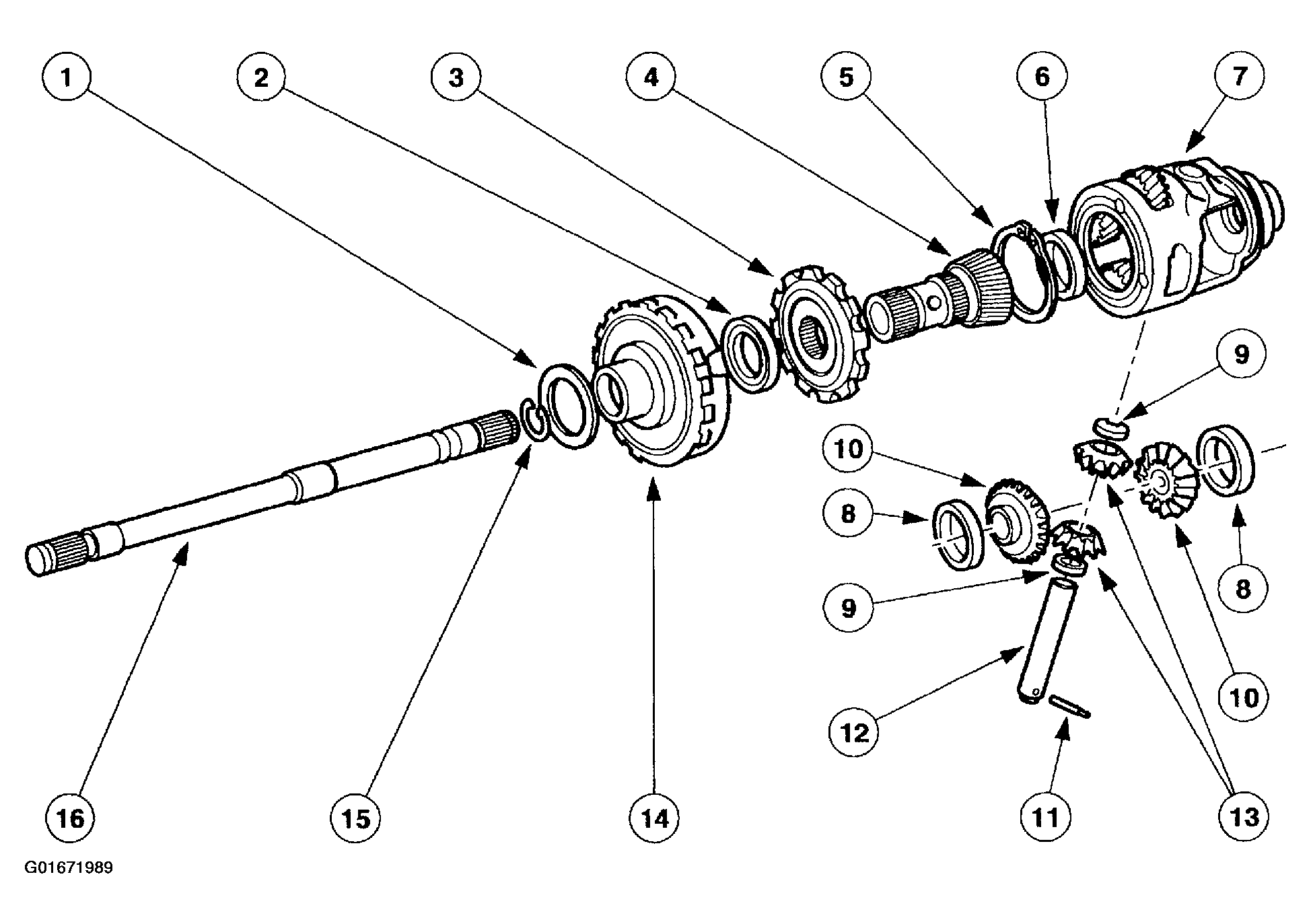

Fig 2: Identifying Final Drive Components (2 Of 5)

Courtesy of FORD MOTOR CO.

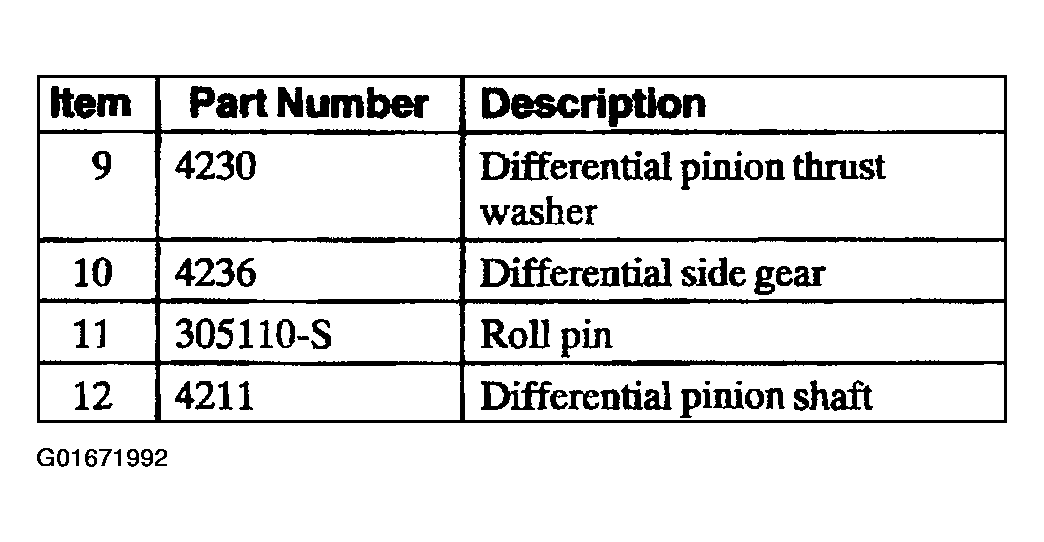

Fig 3: Identifying Final Drive Components (3 Of 5)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Final Drive Components (4 Of 5)

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Final Drive Components (5 Of 5)

Courtesy of FORD MOTOR CO.
