Pump Shaft

    NOTE: Inspect the pump drive shaft in the area that the bearings ride. If worn, install a new shaft and main control.

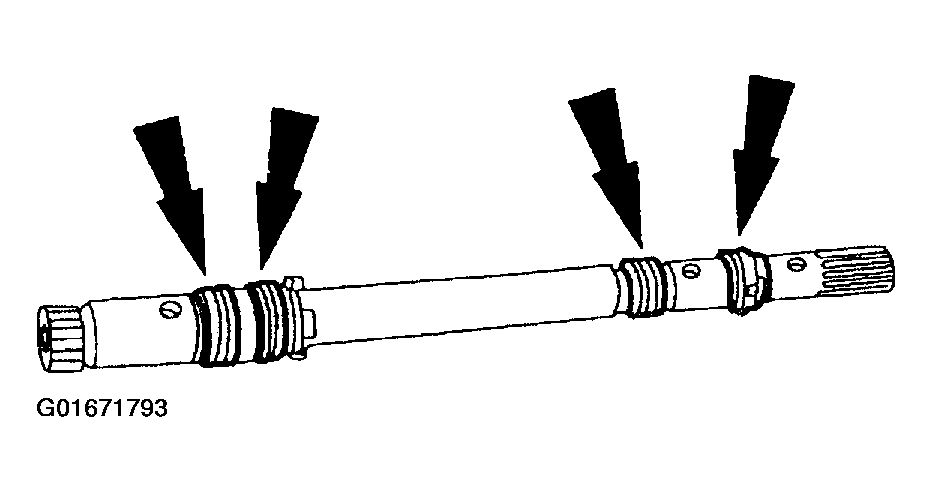

    Fig 1: Identifying Teflon Seals
    G01671793Courtesy of FORD MOTOR CO.
  1. Remove the Teflon(R) seals and inspect the shaft.
    2. NOTE: Make sure that the seals are installed correctly.

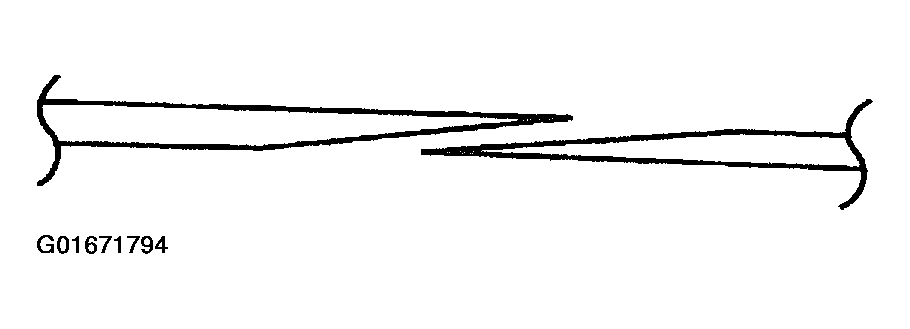

    Fig 2: Identifying Seal Installation
    G01671794Courtesy of FORD MOTOR CO.
  2. Install 4 new seals on the pump shaft.
